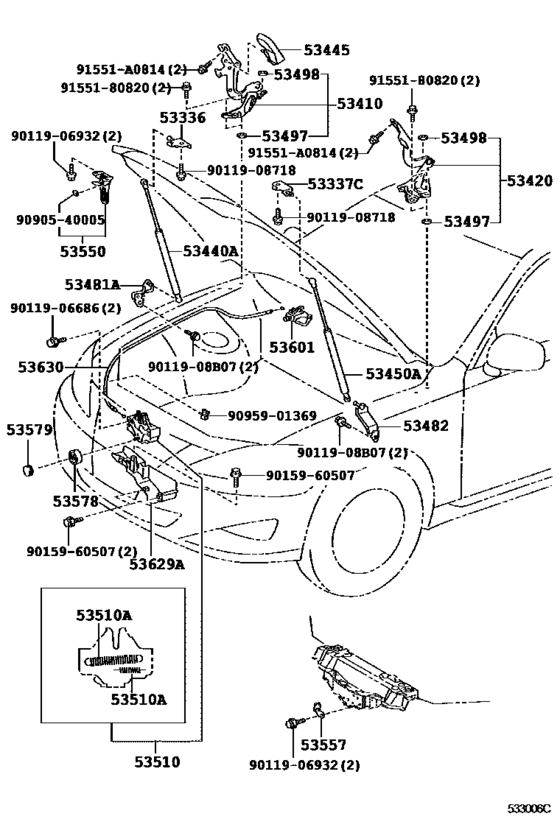

Hood Lock & Hinge ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53336
|
53336
53336-53020 Bracket, Hood Stay, Rh[04.2009 -] GSE20 |
53336-53020 |
US $4.37 |
||
|
53337C
|
53337C
53337-53010 Bracket, Hood Stay, Lh[04.2009 -] GSE20 |
53337-53010 |
US $4.37 |
||
|
53410
|
53410
53410-53020 Hinge Assy, Hood, Rh[04.2009 -] GSE20 |
53410-53020 |
from US $32.60 |
||
|
53420
|
53420
53420-53020 Hinge Assy, Hood, Lh[04.2009 -] GSE20 |
53420-53020 |
from US $36.55 |
||
|
53440A
|
53440A
53440-0W101 Support Assy, Hood, Rh[04.2009 - 12.2011] GSE20 |
53440-0W101 |
US $128.13 |
||
| replacement | |||||
|
53440A
|
53440A
53440-0W102 Support Assy, Hood, Rh[04.2009 - 12.2011] GSE20 |
53440-0W102 |
from US $134.14 |
||
|
53440A
|
53440A
53440-0W102 Support Assy, Hood, Rh[01.2012 -] GSE20 |
53440-0W102 |
from US $134.14 |
||
|
53445
|
53445
53445-53010 Cover, Hood Hinge, Rh[04.2009 -] GSE20 |
53445-53010 |
from US $6.12 |
||
|
53450A
|
53450A
53450-0W081 Support Assy, Hood, Lh[04.2009 - 12.2011] GSE20 |
53450-0W081 |
US $128.13 |
||
| replacement | |||||
|
53450A
|
53450A
53450-0W082 Support Assy, Hood, Lh[04.2009 - 12.2011] GSE20 |
53450-0W082 |
from US $129.24 |
||
|
53450A
|
53450A
53450-0W082 Support Assy, Hood, Lh[01.2012 -] GSE20 |
53450-0W082 |
from US $129.24 |
||
|
53481A
|
53481A
53481-53010 Bracket, Hood Support, Rh[04.2009 - 07.2015] GSE20 |
53481-53010 |
US $8.30 |
||
|
53482
|
53482
53482-53010 Bracket, Hood Support, Lh[04.2009 - 07.2015] GSE20 |
53482-53010 |
US $8.30 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[04.2009 -] GSE20 T=1.0 |
53497-50020 |
from US $2.19 |
||
|
53498
|
53498
53497-53010 Pad, Hood Hinge, No.2[04.2009 -] GSE20 T=1.0 |
53497-53010 |
US $1.31 |
||
|
53510
|
53510
53510-53050 Lock Assy, Hood[04.2009 - 09.2009] GSE20..RHD |
53510-53050 |
US $52.27 |
||
| replacement | |||||
|
53510
|
53510
53510-53051 Lock Assy, HoodHOOD [04.2009 - 09.2009] GSE20..RHD |
53510-53051 |
US $55.86 |
||
|
53510
|
53510
53510-53051 Lock Assy, HoodHOOD [10.2009 - 11.2014] GSE20..RHD |
53510-53051 |
US $55.86 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[04.2009 -] GSE20 WD=0.9,CW=20.5 |
90506-09050 |
from US $1.38 |
||
|
53510A
|
53510A
90506-14086 Spring, Tension(For Hood Lock)[04.2009 -] GSE20 WD=1.4,CW=15 |
90506-14086 |
US $3.58 |
||
|
53550
|
53550
53550-53010 Hook Assy, Hood Auxiliary Catch[04.2009 -] GSE20 |
53550-53010 |
from US $42.64 |
||
|
53557
|
53557
53557-53011 Catch, Hood Auxiliary Hook[04.2009 -] GSE20 |
53557-53011 |
US $3.72 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[04.2009 -] GSE20 |
53578-50010 |
from US $1.12 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[04.2009 -] GSE20 |
53579-50010 |
from US $1.12 |
||
|
53601
|
53601
53601-52010-A2 Lever Sub-Assy, Hood Lock Control[04.2009 - 07.2015] GSE20 MELLOW WHITE,TRIM0# |
53601-52010-A2 |
US $23 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[04.2009 - 07.2015] GSE20..6FC BLACK,TRIM1#,2#,3#,4# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[04.2009 - 07.2015] GSE20..6FC BLACK,TRIM1#,2#,3#,4# |
53601-52010-C1 |
from US $23.69 |
||
|
53629A
|
53629A
53629-53030 Cover, Hood Lock Control Cable[04.2009 - 11.2014] GSE20..RHD |
53629-53030 |
US $17.04 |
||
|
53630
|
53630
53630-53020 Cable Assy, Hood Lock Control[04.2009 - 11.2014] GSE20..RHD |
53630-53020 |
US $15 |
||
|
91551A0814
|
91551A0814
91551-A0814 BOLT FLANGE |
91551-A0814 |
US $1.43 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.43 |
||
|
9011906686
|
9011906686
90119-06686 BOLT WWASHER |
90119-06686 |
US $0.96 |
||
|
9011906932
|
9011906932
90119-06932 BOLT WWASHER |
90119-06932 |
from US $0.63 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
|
9015960507
|
9015960507
90159-60507 SCREW WWASHER |
90159-60507 |
from US $0.86 |
||
|
9090540005
|
9090540005
90905-40005 New Genuine Part |
90905-40005 |
US $1.60 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
