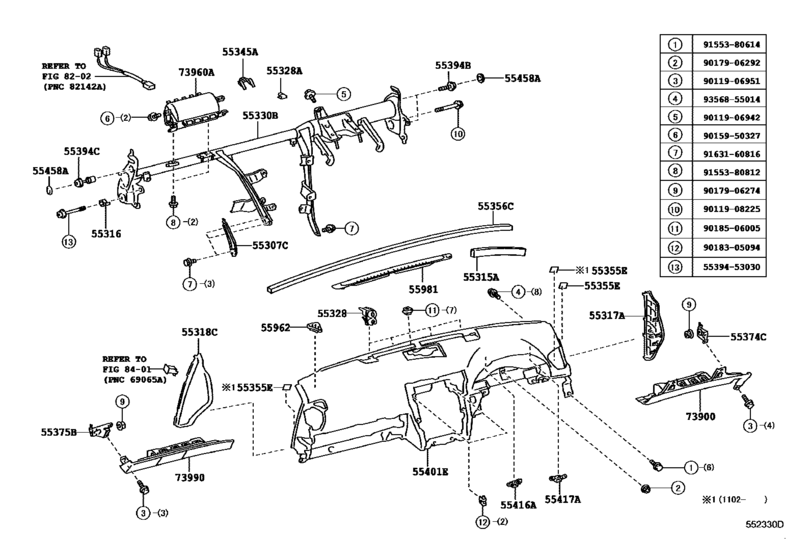

Instrument Panel & Glove Compartment ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55307C
|
55307C
55352-53040 Brace Sub-Assy, Instrument Panel, No.2[04.2009 -] GSE20 |
55352-53040 |
US $8.01 |
||
|
55315A
|
55315A
55315-53010 Spacer, Instrument Panel, No.1[04.2009 -] GSE20 |
55315-53010 |
US $6.45 |
||
|
55316
|
55316
55315-53040 Spacer, Instrument Panel, No.1INSTRUMENT PANEL, NO.2 [04.2009 - 07.2015] GSE20 |
55315-53040 |
US $3.64 |
||
|
55317A
|
55317A
55317-53070-C0 Panel, Instrument Side, Rh[04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM0#,1#,2#,3#,4# |
55317-53070-C0 |
US $39.85 |
||
|
55318C
|
55318C
55318-53040-C0 Panel, Instrument Side, Lh[04.2009 - 08.2010] GSE20..LHD..6F BLACK,TRIM0#,2#; GSE20..RHD..6F NEW ZEALAND SPEC,BLACK,TRIM0#,2#; GSE20..RHD..6F AUSTRALIA SPEC,BLACK,TRIM0#,2#; GSE20..RHD..6FC SOUTH AFRICA SPEC,BLACK,TRIM0#,1#,2#,3#,4#; GSE20..RHD..6F SOUTH AFRICA SPEC,BLACK,TRIM0#,2 |
55318-53040-C0 |
US $38.88 |
||
|
55318C
|
55318C
55318-53050-C0
Panel, Instrument Side, Lh
[04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM0#,1#,2#,3#,4# |
55318-53050-C0 |
— | ||
|
55328
|
55328
55328-30140 Pin, Instrument Panel, No.1[04.2009 -] GSE20 |
55328-30140 |
US $4.66 |
||
|
55328A
|
55328A
55328-48110 Stay, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.2010 -] GSE20 |
55328-48110 |
from US $1.58 |
||
|
55328A
|
55328A
55328-50170 Stay, Instrument Panel, No.3[04.2009 - 11.2010] GSE20 |
55328-50170 |
US $1.46 |
||
|
55330B
|
55330B
55330-53250 Reinforcement Assy, Instrument PanelINSTRUMENT PANEL [04.2009 - 11.2014] GSE20..RHD..6FC |
55330-53250 |
US $243.15 |
||
|
55345A
|
55345A
55345-30060 Clip, Instrument Panel, No.1[04.2009 -] GSE20 |
55345-30060 |
US $3.72 |
||
|
55355E
|
55355E
55355-53050 Cushion, Instrument Panel[04.2009 - 02.2011] GSE20 |
55355-53050 |
US $1.08 |
||
|
55356C
|
55356C
55355-53040 Cushion, Instrument Panel, No.2[04.2009 -] GSE20 |
55355-53040 |
US $17.56 |
||
|
55374C
|
55374C
55374-53010 Bracket, Instrument Panel Lower Mounting, No.1[04.2009 - 11.2014] GSE20..RHD |
55374-53010 |
US $10.63 |
||
|
55375B
|
55375B
55375-53040 Bracket, Instrument Panel Lower Mounting, No.2[04.2009 - 11.2014] GSE20..RHD |
55375-53040 |
US $11.50 |
||
|
55394B
|
55394B
55394-30021 Bolt, Instrument Panel[04.2009 -] GSE20 |
55394-30021 |
US $1.31 |
||
|
55394C
|
55394C
55394-33041 Bolt, Instrument Panel[04.2009 -] GSE20 |
55394-33041 |
US $2.77 |
||
|
55401E
|
55401E
55400-53905 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [04.2009 - 11.2014] GSE20..RHD |
55400-53905 |
US $1,118.72 |
||
| replacement | |||||
|
55401E
|
55401E
55400-53905-C0 Pad Sub-Assy, Instrument Panel Safety[04.2009 - 11.2014] GSE20..RHD |
55400-53905-C0 |
US $1,118.72 |
||
|
55416A
|
55416A
55416-30150 Retainer, Meter Hood, No.1[04.2009 -] GSE20 |
55416-30150 |
US $6.12 |
||
|
55417A
|
55417A
55417-30070 Retainer, Meter Hood, No.2[04.2009 -] GSE20 |
55417-30070 |
US $6.12 |
||
|
55458A
|
55458A
55458-50100 Cap, Instrument Panel Safety Pad[04.2009 -] GSE20 |
55458-50100 |
from US $2.05 |
||
|
55962
|
55962
55962-53010-C0 Nozzle, Side Defroster, No.2[04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM0#,1#,2#,3#,4# |
55962-53010-C0 |
US $4.51 |
||
|
55981
|
55981
55981-53010-C0 Garnish, Defroster Nozzle, No.1[04.2009 - 07.2015] GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
55981-53010-C0 |
US $24.46 |
||
|
73900
|
73900
73900-53010-A2 Air Bag Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
73900-53010-A2 |
US $476.10 |
||
|
73900
|
73900
73900-53010-C0 Air Bag Assy, Instrument Panel, Lower No.1[04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM1#,2#,3#,4# |
73900-53010-C0 |
US $476.10 |
||
|
73960A
|
73960A
73960-53040 Air Bag Assy, Instrument Panel Passenger W/o DoorINSTRUMENT PANEL PASSENGER W/O DOOR [04.2009 - 09.2013] GSE20..RHD |
73960-53040 |
US $1,121.12 |
||
| replacement | |||||
|
73960A
|
73960A
73960-53041 Air Bag Assy, Instrument Panel Passenger W/o Door[04.2009 - 09.2013] GSE20..RHD |
73960-53041 |
US $1,121.12 |
||
|
73960A
|
73960A
73960-53041 Air Bag Assy, Instrument Panel Passenger W/o Door[10.2013 - 11.2014] GSE20..RHD |
73960-53041 |
US $1,121.12 |
||
|
73990
|
73990
73990-53010-A2 Air Bag Assy, Instrument Panel, Lower No.2INSTRUMENT PANEL, LOWER NO.2 [04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
73990-53010-A2 |
US $349.44 |
||
|
73990
|
73990
73990-53010-C0 Air Bag Assy, Instrument Panel, Lower No.2[04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM1#,2#,3#,4# |
73990-53010-C0 |
US $349.44 |
||
|
5539453030
|
5539453030
55394-53030 New Genuine Part |
55394-53030 |
US $5.53 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.65 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9018506005
|
9018506005
90185-06005 New Genuine Part |
90185-06005 |
US $3.40 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9155380812
|
9155380812
91553-80812 New Genuine Part |
91553-80812 |
US $1.43 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
