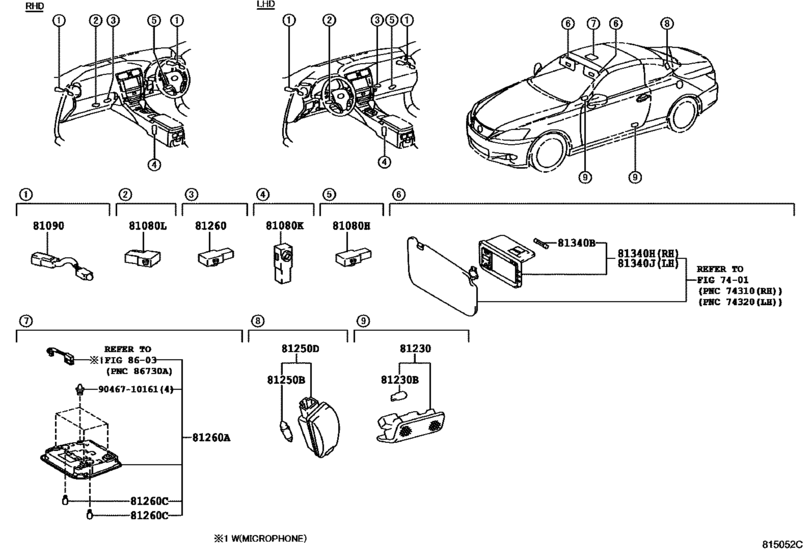

Interior Lamp ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080H
|
81080H
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 07.2015] GSE20 |
81080-22040 |
from US $10.05 |
||
|
81080K
|
81080K
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 07.2015] GSE20 |
81080-22040 |
from US $10.05 |
||
|
81080L
|
81080L
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 07.2015] GSE20 |
81080-22040 |
from US $10.05 |
||
|
81090
|
81090
81090-53011 Lamp Assy, Interior Illumination, No.2[04.2009 - 07.2015] GSE20 |
81090-53011 |
US $19.22 |
||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[03.2013 -] GSE20 |
81230-30200 |
from US $12.05 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[08.2010 - 02.2013] GSE20 |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[08.2010 - 02.2013] GSE20 |
81230-30200 |
from US $12.05 |
||
|
81230
|
81230
81230-53020 Lamp Assy, Courtesy[04.2009 - 07.2010] GSE20 |
81230-53020 |
US $26.71 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[04.2009 -] GSE20 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81250B
|
81250B
99132-13050 Bulb(For Courtesy Lamp)[04.2009 -] GSE20 12V 5W |
99132-13050 |
from US $2.51 |
||
| replacement | |||||
|
81250B
|
81250B
00234-13050 Bulb,Room Lamp[04.2009 -] GSE20 12V 5W |
00234-13050 |
US $2.82 |
||
|
81250D
|
81250D
81250-48010 Lamp Assy, Room, No.2[04.2009 - 07.2015] GSE20 |
81250-48010 |
from US $23.31 |
||
|
81260
|
81260
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 07.2015] GSE20 |
81080-22040 |
from US $10.05 |
||
|
81260A
|
81260A
81260-53420-A0
Lamp Assy, Map
[04.2009 - 08.2011] GSE20..RHD..6FC HONGKONG SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,MELLOW WH ITE,TRIM0#; GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,MELLOW WHIT E,TRIM0#; GSE20..LHD..6FC |
81260-53420-A0 |
— | ||
|
81260A
|
81260A
81260-53420-B0
Lamp Assy, Map
[04.2009 - 08.2011] GSE20..RHD..6FC HONGKONG SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,LT.GRAY,T RIM1#,2#,3#,4#; GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,LT.GRAY,TRI M1#,2#,3#,4#; GSE20.. |
81260-53420-B0 |
— | ||
|
81260A
|
81260A
81260-53460-A0
Lamp Assy, Map
[04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
81260-53460-A0 |
— | ||
|
81260A
|
81260A
81260-53460-B0
Lamp Assy, Map
[04.2009 - 08.2012] GSE20..RHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
81260-53460-B0 |
— | ||
|
81260A
|
81260A
81260-53460-C0
Lamp Assy, Map
[08.2012 - 11.2014] GSE20..RHD BLACK,TRIM23,39 |
81260-53460-C0 |
— | ||
|
81260A
|
81260A
81260-53470-A0
Lamp Assy, Map
[04.2009 - 08.2011] GSE20..RHD..6FC NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-HORN & SENSOR&MICROPHONE & MIKE-AMPLIFIER-WITHO UT,MELLOW WHITE,TRIM0#; GSE20..RHD..6FC SINGAPORE SPEC&ANTI-THEFT SYSTEM-HORN & SENSOR&MICROPHONE & MIKE-AMPLIFIER-WITHOUT ,MELLOW WHITE |
81260-53470-A0 |
— | ||
|
81260A
|
81260A
81260-53470-B0
Lamp Assy, Map
[04.2009 - 08.2011] GSE20..RHD..6FC NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-HORN & SENSOR&MICROPHONE & MIKE-AMPLIFIER-WITHO UT,LT.GRAY,TRIM1#,2#,3#,4#; GSE20..RHD..6FC SINGAPORE SPEC&ANTI-THEFT SYSTEM-HORN & SENSOR&MICROPHONE & MIKE-AMPLIFIER-WITHOUT ,LT.GRAY, |
81260-53470-B0 |
— | ||
|
81260A
|
81260A
81260-53C20-A0
Lamp Assy, Map
[08.2010 - 08.2011] GSE20..RHD HONGKONG SPEC&ANTI-THEFT SYSTEM-HORN&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,MELLOW WHITE,TRIM0# |
81260-53C20-A0 |
— | ||
|
81260A
|
81260A
81260-53C20-B0
Lamp Assy, Map
[08.2010 - 08.2011] GSE20..RHD HONGKONG SPEC&ANTI-THEFT SYSTEM-HORN&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,LT.GRA Y,TRIM1#,2#,3#,4# |
81260-53C20-B0 |
— | ||
|
81260A
|
81260A
81260-53C20-C0
Lamp Assy, Map
[08.2012 - 11.2014] GSE20..RHD HONGKONG SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
81260-53C20-C0 |
— | ||
|
81260C
|
81260C
99132-12050 Bulb (12V 5W)[04.2009 -] GSE20 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81260C
|
81260C
90080-81053 Bulb(For Clearance Lamp)[04.2009 -] GSE20 12V 5W |
90080-81053 |
US $0.99 |
||
|
81340B
|
81340B
90981-14003 Bulb (For Vanity Lamp)[04.2009 - 07.2015] GSE20 12V 1.5W |
90981-14003 |
US $0.96 |
||
|
81340H
|
81340H
81340-53010-A0 Lamp Assy, Vanity, RhVANITY, RH [04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
81340-53010-A0 |
US $77.17 |
||
|
81340H
|
81340H
81340-53010-B0 Lamp Assy, Vanity, RhVANITY, RH [04.2009 - 11.2014] GSE20..RHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
81340-53010-B0 |
US $77.17 |
||
|
81340H
|
81340H
81340-53030-A0
Lamp Assy, Vanity, Rh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,MELLOW WHITE,TRIM0# |
81340-53030-A0 |
— | ||
|
81340H
|
81340H
81340-53030-B0
Lamp Assy, Vanity, Rh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
81340-53030-B0 |
— | ||
|
81340H
|
81340H
81340-53110-C0 Lamp Assy, Vanity, Rh[08.2012 - 11.2014] GSE20..RHD F SPORT,BLACK,TRIM2#,3# |
81340-53110-C0 |
US $77.17 |
||
|
81340H
|
81340H
81340-53130-C0
Lamp Assy, Vanity, Rh
[08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
81340-53130-C0 |
— | ||
|
81340J
|
81340J
81350-53020-A0
Lamp Assy, Vanity, Lh
[04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
81350-53020-A0 |
— | ||
|
81340J
|
81340J
81350-53020-B0
Lamp Assy, Vanity, Lh
[04.2009 - 11.2014] GSE20..RHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
81350-53020-B0 |
— | ||
|
81340J
|
81340J
81350-53040-A0
Lamp Assy, Vanity, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,MELLOW WHITE,TRIM0# |
81350-53040-A0 |
— | ||
|
81340J
|
81340J
81350-53040-B0
Lamp Assy, Vanity, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
81350-53040-B0 |
— | ||
|
81340J
|
81340J
81350-53060-A0
Lamp Assy, Vanity, Lh
[04.2009 - 08.2009] GSE20..RHD CYPRUS SPEC,MELLOW WHITE,TRIM0# |
81350-53060-A0 |
— | ||
|
81340J
|
81340J
81350-53060-B0
Lamp Assy, Vanity, Lh
[04.2009 - 08.2009] GSE20..RHD CYPRUS SPEC,LT.GRAY,TRIM2# |
81350-53060-B0 |
— | ||
|
81340J
|
81340J
81350-53070-A0
Lamp Assy, Vanity, Lh
[08.2009 - 08.2012] GSE20..RHD CYPRUS SPEC,MELLOW WHITE,TRIM0# |
81350-53070-A0 |
— | ||
|
81340J
|
81340J
81350-53070-B0
Lamp Assy, Vanity, Lh
[08.2009 - 08.2012] GSE20..RHD..6FC CYPRUS SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
81350-53070-B0 |
— | ||
|
81340J
|
81340J
81350-53090-C0
Lamp Assy, Vanity, Lh
[08.2012 - 11.2014] GSE20..RHD F SPORT,BLACK,TRIM2#,3# |
81350-53090-C0 |
— | ||
|
81340J
|
81340J
81350-53110-C0
Lamp Assy, Vanity, Lh
[08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
81350-53110-C0 |
— | ||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.87 |
||
