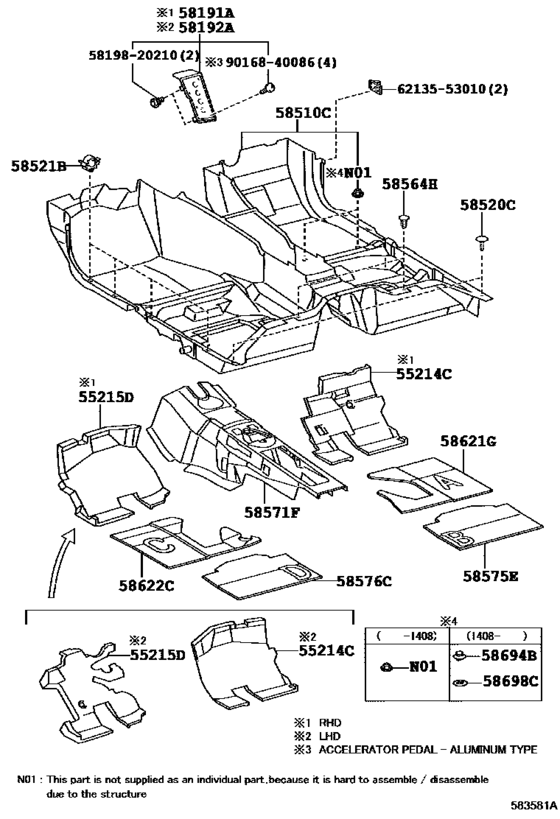

Mat & Carpet ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55214C
|
55214C
55214-53070 Pad, Dash Panel Insulator, No.2DASH PANEL INSULATOR, NO.2 [04.2009 - 08.2014] GSE20..RHD..6FC |
55214-53070 |
US $23.59 |
||
|
55214C
|
55214C
55214-53120
Pad, Dash Panel Insulator, No.2
[08.2014 - 11.2014] GSE20..RHD |
55214-53120 |
— | ||
|
55215D
|
55215D
55215-53060 Pad, Dash Panel Insulator, No.3DASH PANEL INSULATOR, NO.3 [04.2009 - 11.2014] GSE20..RHD |
55215-53060 |
US $33.49 |
||
|
58191A
|
58191A
58191-53090
Footrest, Front Floor, Rh
[04.2009 - 11.2011] GSE20..RHD..6FC |
58191-53090 |
— | ||
| replacement | |||||
|
58191A
|
58191A
58191-53091 Footrest, Front Floor, Rh[04.2009 - 11.2011] GSE20..RHD..6FC |
58191-53091 |
US $33.78 |
||
|
58191A
|
58191A
58191-53091 Footrest, Front Floor, Rh[12.2011 - 11.2014] GSE20..RHD |
58191-53091 |
US $33.78 |
||
|
58191A
|
58191A
58191-53100 Footrest, Front Floor, Rh[04.2009 - 11.2011] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
58191-53100 |
US $90.27 |
||
| replacement | |||||
|
58191A
|
58191A
58191-53101 Footrest, Front Floor, Rh[04.2009 - 11.2011] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
58191-53101 |
US $99 |
||
|
58191A
|
58191A
58191-53101 Footrest, Front Floor, Rh[12.2011 - 11.2014] GSE20..RHD ACCELERATOR PEDAL-ALUMINUM TYPE |
58191-53101 |
US $99 |
||
|
58510C
|
58510C
58510-53500-A0 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [04.2009 - 11.2014] GSE20..RHD..6FC MELLOW WHITE,TRIM00,01,02,03,06,07 |
58510-53500-A0 |
US $671.22 |
||
|
58510C
|
58510C
58510-53500-C0 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [04.2009 - 11.2014] GSE20..RHD..6FC BLACK,TRIM04,05,08,1#,2#,3#,4# |
58510-53500-C0 |
US $671.22 |
||
|
58510C
|
58510C
58510-53500-J0 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [04.2009 - 08.2010] GSE20..RHD..6FC BLUE,TRIM04,05,08 |
58510-53500-J0 |
US $806.62 |
||
|
58510C
|
58510C
58510-53610-A0
Carpet Assy, Front Floor, Front
[08.2014 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
58510-53610-A0 |
— | ||
|
58510C
|
58510C
58510-53610-C0
Carpet Assy, Front Floor, Front
[08.2014 - 11.2014] GSE20..RHD BLACK,TRIM1#,2#,3#,4# |
58510-53610-C0 |
— | ||
|
58520C
|
58520C
51454-48010 Silencer, Engine Under Cover, Rear[04.2009 -] GSE20 |
51454-48010 |
from US $3.21 |
||
|
58521B
|
58521B
58521-53060 Hook, Floor CarpetFLOOR CARPET [04.2009 -] GSE20 |
58521-53060 |
US $4.95 |
||
|
58564H
|
58564H
90467-05164-B8 Clip(For Front Floor Carpet)[04.2009 - 12.2009] GSE20 LT.GRAY |
90467-05164-B8 |
from US $0.70 |
||
|
58564H
|
58564H
90467-05164-C0 Clip(For Deck Boad)[12.2009 - 07.2015] GSE20 BLACK |
90467-05164-C0 |
from US $0.67 |
||
|
58571F
|
58571F
58571-53010 Pad, Front Floor, Front[04.2009 -] GSE20..6FC |
58571-53010 |
US $72.80 |
||
|
58575E
|
58575E
58575-53010 Pad, Front Floor, Rear No.1[04.2009 - 05.2013] GSE20 |
58575-53010 |
US $15.29 |
||
| replacement | |||||
|
58575E
|
58575E
58575-53011 Pad, Front Floor, Rear No.1[04.2009 - 05.2013] GSE20 |
58575-53011 |
US $15.29 |
||
|
58575E
|
58575E
58575-53011 Pad, Front Floor, Rear No.1[05.2013 -] GSE20 |
58575-53011 |
US $15.29 |
||
|
58576C
|
58576C
58576-53010 Pad, Front Floor, Rear No.2[04.2009 - 05.2013] GSE20 |
58576-53010 |
US $15.29 |
||
| replacement | |||||
|
58576C
|
58576C
58576-53011 Pad, Front Floor, Rear No.2[04.2009 - 05.2013] GSE20 |
58576-53011 |
US $15.29 |
||
|
58576C
|
58576C
58576-53011 Pad, Front Floor, Rear No.2[05.2013 -] GSE20 |
58576-53011 |
US $15.29 |
||
|
58621G
|
58621G
58621-53040 Pad, Front Floor Silencer, Rh[04.2009 - 05.2013] GSE20 |
58621-53040 |
US $26.94 |
||
| replacement | |||||
|
58621G
|
58621G
58621-53041 Pad, Front Floor Silencer, Rh[04.2009 - 05.2013] GSE20 |
58621-53041 |
US $26.94 |
||
|
58621G
|
58621G
58621-53041 Pad, Front Floor Silencer, Rh[05.2013 -] GSE20 |
58621-53041 |
US $26.94 |
||
|
58622C
|
58622C
58622-53040 Pad, Front Floor Silencer, Lh[04.2009 - 05.2013] GSE20 |
58622-53040 |
US $26.94 |
||
| replacement | |||||
|
58622C
|
58622C
58622-53041 Pad, Front Floor Silencer, Lh[04.2009 - 05.2013] GSE20 |
58622-53041 |
US $26.94 |
||
|
58622C
|
58622C
58622-53041 Pad, Front Floor Silencer, Lh[05.2013 -] GSE20 |
58622-53041 |
US $26.94 |
||
|
58694B
|
58694B
58694-78010 Plate, Mat Set, Upper[08.2014 -] GSE20 |
58694-78010 |
from US $1.63 |
||
|
58698C
|
58698C
58698-78010 Plate, Mat Set, Lower[08.2014 -] GSE20 |
58698-78010 |
from US $3.84 |
||
|
5819820210
|
5819820210
58198-20210 Clip, Footrest |
58198-20210 |
from US $3.65 |
||
|
6213553010
|
6213553010
62135-53010 Frame, Rear Side Window |
62135-53010 |
US $1.60 |
||
|
9016840086
|
9016840086
90168-40086 New Genuine Part |
90168-40086 |
US $1.02 |
||
