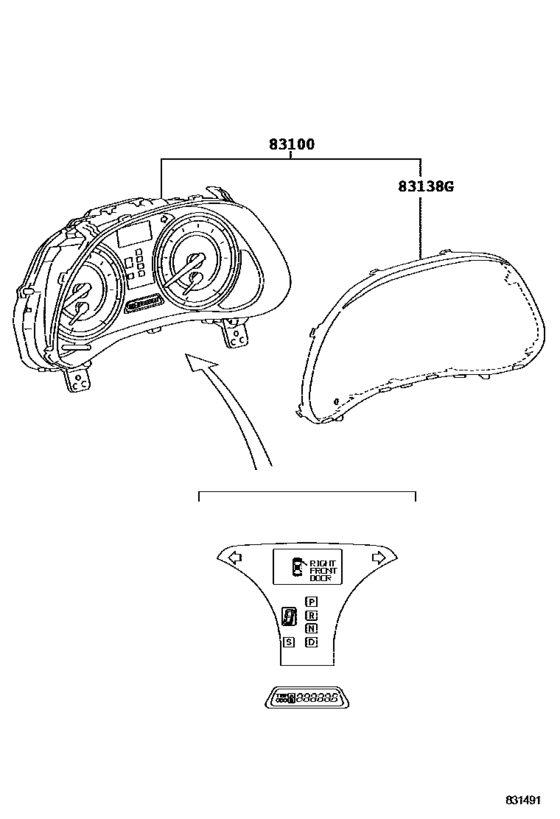

Meter ([04.2009 - ] COMBINATION METER (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-53C50
Meter Assy, Combination
[04.2009 - 08.2010] GSE20..RHD..6FC |
83800-53C50 |
— | ||
|
83100
|
83100
83800-53C51
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD |
83800-53C51 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-53C52
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD |
83800-53C52 |
— | ||
|
83100
|
83100
83800-53C52
Meter Assy, Combination
[12.2011 - 08.2012] GSE20..RHD |
83800-53C52 |
— | ||
|
83100
|
83100
83800-53C90
Meter Assy, Combination
[04.2009 - 08.2010] GSE20..RHD..6FC CYPRUS SPEC; GSE20..RHD..6FC IRELAND SPEC; GSE20..RHD..6FC SOUTH AFRICA SPEC |
83800-53C90 |
— | ||
|
83100
|
83100
83800-53C91
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD CYPRUS SPEC; GSE20..RHD IRELAND SPEC; GSE20..RHD SOUTH AFRICA SPEC |
83800-53C91 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-53C92
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD CYPRUS SPEC; GSE20..RHD IRELAND SPEC; GSE20..RHD SOUTH AFRICA SPEC |
83800-53C92 |
— | ||
|
83100
|
83100
83800-53C92
Meter Assy, Combination
[12.2011 - 08.2012] GSE20..RHD CYPRUS SPEC; GSE20..RHD IRELAND SPEC; GSE20..RHD SOUTH AFRICA SPEC |
83800-53C92 |
— | ||
|
83100
|
83100
83800-53C93
Meter Assy, Combination
[08.2012 - 11.2014] GSE20..RHD |
83800-53C93 |
— | ||
|
83100
|
83100
83800-53D10
Meter Assy, Combination
[04.2009 - 08.2010] GSE20..RHD..6FC NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD..6FC AUSTRALIA SPEC; GSE20..RHD..6FC MALAYSIA SPEC |
83800-53D10 |
— | ||
|
83100
|
83100
83800-53D11
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
83800-53D11 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-53D12
Meter Assy, Combination
[08.2010 - 11.2011] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
83800-53D12 |
— | ||
|
83100
|
83100
83800-53D12
Meter Assy, Combination
[12.2011 - 08.2012] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
83800-53D12 |
— | ||
|
83100
|
83100
83800-53D13
Meter Assy, Combination
[08.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC |
83800-53D13 |
— | ||
|
83138G
|
83138G
83852-53C00
Glass, Combination Meter
[04.2009 -] GSE20 |
83852-53C00 |
— | ||
