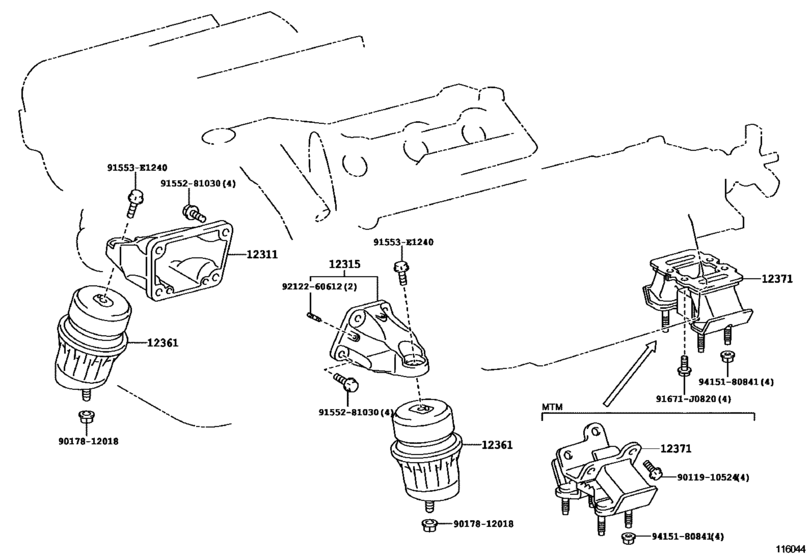

Mounting ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-31040 Bracket, Engine Mounting, Front No.1 Rh[04.2009 -] 4GRFSE..GSE20 |
12311-31040 |
US $43.68 |
||
|
12315
|
12315
12302-31010 Bracket, Engine Mounting, Front No.1 Lh[04.2009 -] 4GRFSE..GSE20 |
12302-31010 |
US $38.58 |
||
|
12361
|
12361
12361-31100
Insulator, Engine Mounting, Front
[04.2009 - 11.2014] 4GRFSE..GSE20..6FC |
12361-31100 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-31101 Insulator, Engine Mounting, Front[04.2009 - 11.2014] 4GRFSE..GSE20..6FC |
12361-31101 |
from US $113.64 |
||
|
12371
|
12371
12371-31070 Insulator, Engine Mounting, Rear No.1[04.2009 -] 4GRFSE..GSE20..6FC |
12371-31070 |
from US $44.35 |
||
|
91553E1240
|
91553E1240
91553-E1240 Bolt |
91553-E1240 |
US $3.40 |
||
|
91671J0820
|
91671J0820
91671-J0820 BOLT FLANGE |
91671-J0820 |
US $2.15 |
||
|
9011910524
|
9011910524
90119-10524 New Genuine Part |
90119-10524 |
US $2.87 |
||
|
9017812018
|
9017812018
90178-12018 NUT FLANGE |
90178-12018 |
from US $1.08 |
||
|
9155281030
|
9155281030
91552-81030 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91552-81030 |
US $1.79 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
