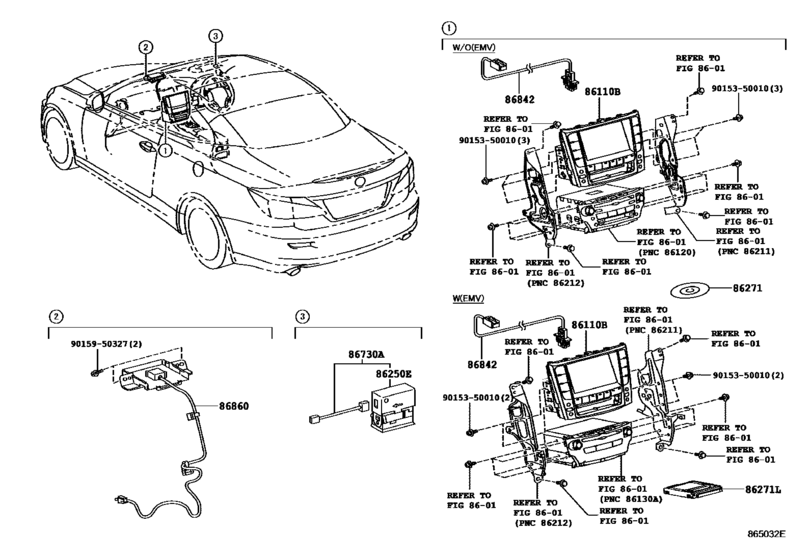

Navigation & Front Monitor Display ([08.2012 - ] (1208- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86110B
|
86110B
86110-53350
Multi-Display Assy
[08.2012 - 11.2014] GSE20..RHD DENSO,AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD DENSO,AUDIO-AM/FM DVD 8SPEAKER |
86110-53350 |
— | ||
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[04.2009 - 11.2014] GSE20..RHD; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD..6FC MALAYSIA SPEC; GSE20..RHD..6FC MICROPHONE & MIKE-AMPLIFIE |
86250-52020 |
US $59.75 |
||
|
86271
|
86271
86271-47072
Disc, Disc Player
[09.2010 - 07.2011] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-47072 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[09.2010 - 07.2011] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-47073 |
— | ||
|
86271
|
86271
86271-47073
Disc, Disc Player
[08.2011 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-47073 |
— | ||
|
86271
|
86271
86271-48220
Disc, Disc Player
[08.2010 - 07.2011] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48220 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[08.2010 - 07.2011] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48226 |
— | ||
|
86271
|
86271
86271-48221
Disc, Disc Player
[08.2011 - 07.2012] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48221 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[08.2011 - 07.2012] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48226 |
— | ||
|
86271
|
86271
86271-48222
Disc, Disc Player
[07.2012 - 08.2012] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48222 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[07.2012 - 08.2012] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM C |
86271-48226 |
— | ||
|
86271
|
86271
86271-50A61
Disc, Disc Player
[08.2010 - 07.2011] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A61 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-50A67
Disc, Disc Player
[08.2010 - 07.2011] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A67 |
— | ||
|
86271
|
86271
86271-50A62
Disc, Disc Player
[08.2011 - 07.2012] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A62 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-50A67
Disc, Disc Player
[08.2011 - 07.2012] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A67 |
— | ||
|
86271
|
86271
86271-50A63
Disc, Disc Player
[07.2012 - 08.2012] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A63 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-50A67
Disc, Disc Player
[07.2012 - 08.2012] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-50A67 |
— | ||
|
86271
|
86271
86271-53150
Disc, Disc Player
[04.2009 - 08.2009] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-53150 |
— | ||
|
86271
|
86271
86271-60180
Disc, Disc Player
[08.2009 - 10.2009] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-60180 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[08.2009 - 10.2009] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-47073 |
— | ||
|
86271
|
86271
86271-60181
Disc, Disc Player
[10.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-60181 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[10.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86271-47073 |
— | ||
|
86271
|
86271
86807-06010
Disc, Disc Player
[10.2013 - 10.2014] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-06010 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-06013
Disc, Disc Player
[10.2013 - 10.2014] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-06013 |
— | ||
|
86271
|
86271
86807-30101
Disc, Disc Player
[09.2013 - 11.2014] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30101 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-30104
Disc Kit, Cd-Rom
[09.2013 - 11.2014] GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30104 |
— | ||
|
86271
|
86271
86807-30120
Disc, Disc Player
[08.2012 - 09.2013] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30120 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-06013
Disc, Disc Player
[08.2012 - 09.2013] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-06013 |
— | ||
|
86271
|
86271
86807-30141
Disc, Disc Player
[09.2013 - 09.2014] GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30141 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-30143
Disc, Disc Player
[09.2013 - 09.2014] GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30143 |
— | ||
|
86271
|
86271
86807-30151
Disc, Disc Player
[09.2013 - 08.2014] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30151 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-30153
Disc, Disc Player
[09.2013 - 08.2014] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30153 |
— | ||
|
86271
|
86271
86807-30152
Disc, Disc Player
[09.2014 - 11.2014] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30152 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-30153
Disc, Disc Player
[09.2014 - 11.2014] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30153 |
— | ||
|
86271L
|
86271L
86271-30730
Hard Disc
[08.2012 - 09.2012] GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; G |
86271-30730 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30731
Hard Disc
[08.2012 - 09.2012] GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; G |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30731
Hard Disc
[09.2012 - 09.2013] GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; G |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30732
Hard Disc
[09.2013 - 09.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; G |
86271-30732 |
— | ||
|
86271L
|
86271L
86271-30761
Hard Disc
[08.2012 - 06.2013] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30761 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30764
Hard Disc
[08.2012 - 06.2013] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30764 |
— | ||
|
86271L
|
86271L
86271-30762
Hard Disc
[07.2013 - 06.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30762 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30764
Hard Disc
[07.2013 - 06.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30764 |
— | ||
|
86271L
|
86271L
86271-30763
Hard Disc
[07.2014 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30763 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30764
Hard Disc
[07.2014 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86271-30764 |
— | ||
|
86271L
|
86271L
86271-30781
Hard Disc
[08.2012 - 06.2013] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD MALAYSIA SPEC&AU |
86271-30781 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30784
Hard Disc
[08.2012 - 06.2013] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD MALAYSIA SPEC&AU |
86271-30784 |
— | ||
|
86271L
|
86271L
86271-30782
Hard Disc
[07.2013 - 08.2013] GSE20..RHD MALAYSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD MALAYSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86271-30782 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30784
Hard Disc
[07.2013 - 08.2013] GSE20..RHD MALAYSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD MALAYSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86271-30784 |
— | ||
|
86271L
|
86271L
86271-30851
Hard Disc
[08.2012 - 08.2013] GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86271-30851 |
— | ||
|
86271L
|
86271L
86271-30852
Hard Disc
[09.2013 - 11.2014] GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86271-30852 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30854
Hard Disc
[09.2013 - 11.2014] GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD HONGKONG SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86271-30854 |
— | ||
|
86730A
|
86730A
86730-53030 Microphone Assy, TelephoneTELEPHONE [04.2009 - 11.2014] GSE20..RHD; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD..6FC MALAYSIA SPEC; GSE20..RHD..6FC MICROPHONE & MIKE-AMPLIFIE |
86730-53030 |
US $85.90 |
||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE20..RHD AUSTRAL |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE20..RHD AUSTRAL |
86842-53090 |
— | ||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 07.2015] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 8SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53040
Antenna Assy, Navigation
[04.2009 - 08.2012] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86860-53040 |
— | ||
|
86860
|
86860
86860-53090
Antenna Assy, Navigation
[08.2012 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER |
86860-53090 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
