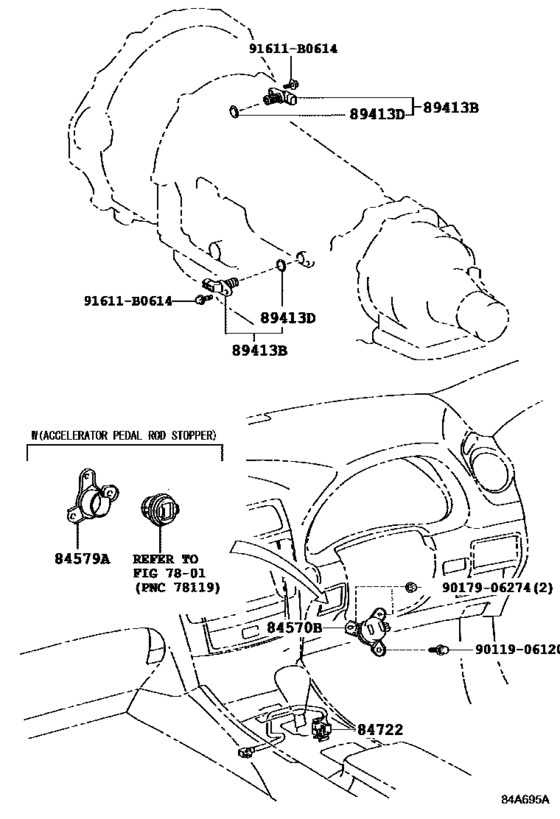

Overdrive & Electronic Controlled Transmission ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84570B
|
84570B
84570-30090 Switch Assy, Kick Down[04.2009 - 11.2014] GSE20..RHD..6FC; GSE20..RHD..6FC NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC AUSTRALIA SPEC |
84570-30090 |
US $52.53 |
||
|
84579A
|
84579A
84579-30050 Bracket, Kick Down Switch[04.2009 - 11.2014] GSE20..RHD..6FC NEW ZEALAND SPEC; GSE20..RHD..6FC NEW ZEALAND SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE; GSE20..RHD..6FC AUSTRALIA SPEC; GSE20..RHD..6FC AUSTRALIA SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE |
84579-30050 |
US $9.46 |
||
|
84722
|
84722
84722-20230 Switch, Transmission Control[04.2009 - 11.2014] GSE20..RHD..6FC |
84722-20230 |
US $29.27 |
||
|
89413B
|
89413B
89413-0C010 Sensor, Transmission Revolution[07.2013 - 07.2015] GSE20 (L) |
89413-0C010 |
US $54.02 |
||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[04.2009 - 07.2013] GSE20..6FC |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[04.2009 - 07.2013] GSE20..6FC |
89413-32011 |
from US $75.94 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[04.2009 -] GSE20..6FC |
90301-11008 |
from US $0.87 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
