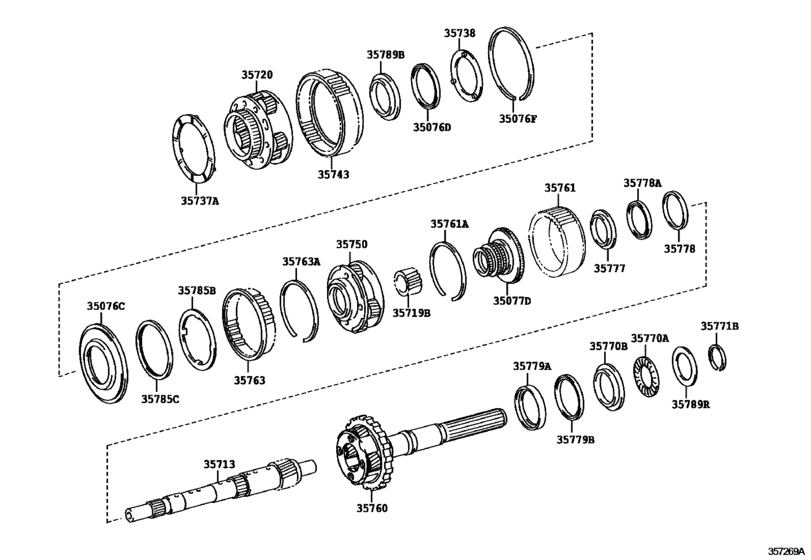

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A960E (0904- )6FC) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35078-22010 Flange Sub-Assy, Front Planetary Ring Gear[04.2009 -] GSE20..6FC |
35078-22010 |
US $34.22 |
||
|
35076D
|
35076D
90374-40005 Bearing, Thrust Needle Roller(For Front Planetary Flange)[04.2009 -] GSE20..6FC |
90374-40005 |
US $17.18 |
||
|
35076F
|
35076F
90520-87005 Ring, Hole Snap (For Front Planetary Ring Gear Flange)[04.2009 -] GSE20..6FC |
90520-87005 |
US $2.48 |
||
|
35077D
|
35077D
35077-22010 Flange Sub-Assy, Rr Planetary Ring Gear[04.2009 -] GSE20..6FC |
35077-22010 |
US $37.56 |
||
|
35713
|
35713
35713-22020 Shaft, Intermediate[04.2009 -] GSE20..6FC |
35713-22020 |
US $60.57 |
||
|
35719B
|
35719B
35719-22030 Gear, Planetary Sun[04.2009 -] GSE20..6FC |
35719-22030 |
US $26.50 |
||
|
35720
|
35720
35720-22040 Gear Assy, Front Planetary[04.2009 -] GSE20..6FC |
35720-22040 |
US $396.03 |
||
|
35737A
|
35737A
35737-22020 Washer, Planetary Carrier Thrust, No.1[04.2009 -] GSE20..6FC |
35737-22020 |
US $18.20 |
||
|
35738
|
35738
35738-22020 Washer, Planetary Carrier Thrust, No.2[04.2009 -] GSE20..6FC |
35738-22020 |
US $10.63 |
||
|
35743
|
35743
35743-22020 Gear, Front Planetary Ring[04.2009 -] GSE20..6FC |
35743-22020 |
US $59.26 |
||
|
35750
|
35750
35750-22010 Gear Assy, Center Planetary[08.2012 - 11.2014] GSE20..RHD HONGKONG SPEC |
35750-22010 |
US $262.08 |
||
|
35750
|
35750
35750-53010
Gear Assy, Center Planetary
[04.2009 -] GSE20..6FC |
35750-53010 |
— | ||
|
35760
|
35760
35760-22070 Gear Assy, Rear Planetary[08.2012 - 11.2014] GSE20..RHD HONGKONG SPEC |
35760-22070 |
US $480.48 |
||
|
35760
|
35760
35760-53010
Gear Assy, Rear Planetary
[04.2009 -] GSE20..6FC |
35760-53010 |
— | ||
|
35761
|
35761
35761-22020 Gear, Rear Planetary Ring[04.2009 -] GSE20..6FC |
35761-22020 |
US $101.92 |
||
|
35761A
|
35761A
90520-93001 Ring, Hole Snap (For Rear Planetary Ring Gear)[04.2009 -] GSE20..6FC |
90520-93001 |
US $2.48 |
||
|
35763
|
35763
35763-22020 Gear, Center Planetary Ring[04.2009 -] GSE20..6FC |
35763-22020 |
US $80.08 |
||
|
35763A
|
35763A
90520-99100 Nut (For Front Planetary Gear)[04.2009 -] GSE20..6FC |
90520-99100 |
US $2.48 |
||
|
35770A
|
35770A
90374-36001 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[04.2009 -] GSE20..6FC |
90374-36001 |
US $18.93 |
||
|
35770B
|
35770B
35789-22190 Race, Thrust Bearing (For Output Shaft)[04.2009 -] GSE20..6FC |
35789-22190 |
US $6.99 |
||
|
35771B
|
35771B
90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)[04.2009 -] GSE20..6FC |
90520-34012 |
US $0.79 |
||
|
35777
|
35777
35777-22010 Race, Thrust Bearing, No.7[04.2009 -] GSE20..6FC |
35777-22010 |
US $7.43 |
||
|
35778
|
35778
35778-22010 Race, Thrust Bearing, No.8[04.2009 -] GSE20..6FC |
35778-22010 |
US $13.69 |
||
|
35778A
|
35778A
90374-27015 Bearing, Thrust Needle Roller[04.2009 -] GSE20..6FC |
90374-27015 |
US $16.02 |
||
|
35779A
|
35779A
35779-22020 Race, Thrust Bearing, No.9[04.2009 -] GSE20..6FC |
35779-22020 |
US $7.86 |
||
|
35779B
|
35779B
90374-43006 Bearing, Thrust Needle Roller[04.2009 -] GSE20..6FC |
90374-43006 |
US $16.02 |
||
|
35785B
|
35785B
35785-22010 Race, Thrust Bearing, No.4[04.2009 -] GSE20..6FC |
35785-22010 |
US $15 |
||
|
35785C
|
35785C
90374-58001 Bearing, Thrust Needle Roller[04.2009 -] GSE20..6FC |
90374-58001 |
US $17.47 |
||
|
35789B
|
35789B
35788-22010 Race, Thrust Bearing (For Front Planetary Flange Rear)[04.2009 -] GSE20..6FC |
35788-22010 |
US $7.43 |
||
|
35789R
|
35789R
35789-35060 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=3.8 |
35789-35060 |
US $6.99 |
||
|
35789R
|
35789R
35789-35070 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=3.9 |
35789-35070 |
US $6.99 |
||
|
35789R
|
35789R
35789-35080 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.0 |
35789-35080 |
US $6.99 |
||
|
35789R
|
35789R
35789-35090 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.1 |
35789-35090 |
US $6.99 |
||
|
35789R
|
35789R
35789-35100 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.2 |
35789-35100 |
US $6.99 |
||
|
35789R
|
35789R
35789-50070 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=3.85 |
35789-50070 |
US $17.33 |
||
|
35789R
|
35789R
35789-50080 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=3.95 |
35789-50080 |
US $17.62 |
||
|
35789R
|
35789R
35789-50090 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.05 |
35789-50090 |
US $18.20 |
||
|
35789R
|
35789R
35789-50100 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.15 |
35789-50100 |
US $18.49 |
||
|
35789R
|
35789R
35789-50110 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.25 |
35789-50110 |
US $18.93 |
||
|
35789R
|
35789R
35789-50120 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.30 |
35789-50120 |
US $19.36 |
||
|
35789R
|
35789R
35789-50130 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE20..6FC T=4.35 |
35789-50130 |
US $19.51 |
