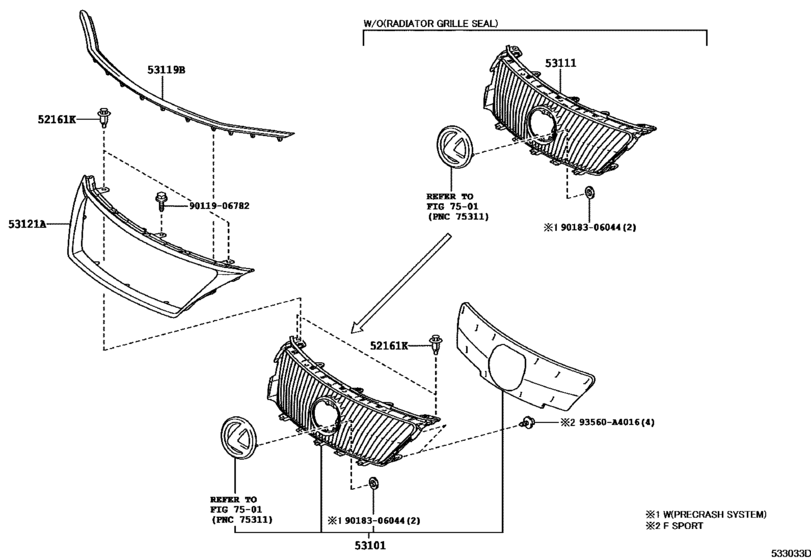

Radiator Grille ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161K
|
52161K
52161-16010 Clip[04.2009 -] GSE20 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161K
|
52161K
52161-0K040 Clip[04.2009 -] GSE20 |
52161-0K040 |
from US $1.46 |
||
|
52161K
|
52161K
52161-02020 Clip[04.2009 -] GSE20 |
52161-02020 |
US $5.27 |
||
|
53101
|
53101
53101-53280
Grille Sub-Assy, Radiator
[04.2009 - 08.2012] GSE20 |
53101-53280 |
— | ||
| replacements | |||||
|
53101
|
53101
53101-53901
Grille Sub-Assy, Radiator
[04.2009 - 08.2012] GSE20 |
53101-53901 |
— | ||
|
53101
|
53101
90975-02080 Emblem, Radiator Grille (Or Front Panel)RADIATOR GRILLE (OR FRONT PANEL) [04.2009 - 08.2012] GSE20 |
90975-02080 |
from US $19.20 |
||
|
53101
|
53101
53101-53300
Grille Sub-Assy, Radiator
[04.2009 - 08.2010] GSE20..RHD..6FC NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); GSE20..RHD..6FC AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
53101-53300 |
— | ||
|
53111
|
53111
53112-53110 Grille, RadiatorRADIATOR [08.2010 - 08.2012] GSE20..LHD RUSSIA SPEC; GSE20..RHD CYPRUS SPEC; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE |
53112-53110 |
US $244.61 |
||
| replacement | |||||
|
53111
|
53111
53112-53903 Grille, Radiator[08.2010 - 08.2012] GSE20..LHD RUSSIA SPEC; GSE20..RHD CYPRUS SPEC; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE |
53112-53903 |
US $244.61 |
||
|
53111
|
53111
53112-53120 Grille, RadiatorRADIATOR [08.2010 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GSE20..RHD AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GSE20..RHD CYPRUS SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
53112-53120 |
US $297.26 |
||
|
53111
|
53111
53112-53220
Grille, Radiator
[08.2012 -] GSE20 F SPORT |
53112-53220 |
— | ||
| replacement | |||||
|
53111
|
53111
53112-53902 Grille, Radiator[08.2012 -] GSE20 F SPORT |
53112-53902 |
from US $301.87 |
||
|
53111
|
53111
53112-53230 Grille, Radiator[08.2012 - 08.2014] GSE20..RHD F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
53112-53230 |
US $288.81 |
||
|
53119B
|
53119B
53119-53010 Protector, Radiator Grille[04.2009 -] GSE20 |
53119-53010 |
from US $26.18 |
||
|
53119B
|
53119B
53119-53050 Protector, Radiator Grille[08.2012 - 08.2014] GSE20..RHD F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
53119-53050 |
from US $29.83 |
||
|
53121A
|
53121A
53111-53200 Moulding, Radiator GrilleRADIATOR GRILLE [04.2009 -] GSE20 |
53111-53200 |
from US $124.72 |
||
|
53121A
|
53121A
53111-53250 Moulding, Radiator Grille[08.2012 - 08.2014] GSE20..RHD F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
53111-53250 |
from US $97.43 |
||
|
93560A4016
|
93560A4016
93560-A4016 SCREW TAPPING |
93560-A4016 |
US $1.38 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.65 |
||
|
9018306044
|
9018306044
90183-06044 NUT SPRING |
90183-06044 |
from US $0.70 |
||
