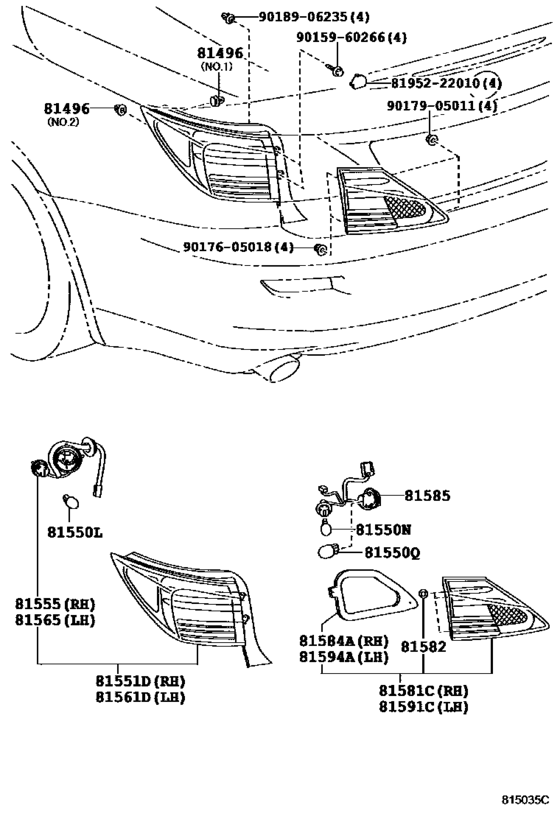

Rear Combination Lamp ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-53010 Guide, Rear Combination Lamp[04.2009 -] GSE20 NO.2 |
81496-53010 |
US $2.87 |
||
|
81496
|
81496
81496-60010 Guide, Rear Combination Lamp[04.2009 -] GSE20 NO.1 |
81496-60010 |
from US $1.08 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[04.2009 -] GSE20 |
90981-15011 |
from US $4.48 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2009 -] GSE20 |
90981-11059 |
from US $3.15 |
||
|
81550Q
|
81550Q
90981-13043 Bulb (12V 21W)[04.2009 -] GSE20 |
90981-13043 |
from US $3.15 |
||
|
81551D
|
81551D
81551-53230 Lens & Body, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.2009 -] GSE20 |
81551-53230 |
US $643.55 |
||
|
81555
|
81555
81555-53230 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.2009 -] GSE20 |
81555-53230 |
US $22.86 |
||
|
81561D
|
81561D
81561-53200 Lens & Body, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [04.2009 -] GSE20 |
81561-53200 |
US $780.30 |
||
|
81565
|
81565
81555-53230 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.2009 -] GSE20 |
81555-53230 |
US $22.86 |
||
|
81581C
|
81581C
81581-53100 Lens And Body, Rear Lamp, RhREAR LAMP, RH [04.2009 -] GSE20 |
81581-53100 |
US $403.31 |
||
|
81582
|
81582
81584-22040 Gasket, Rear Combination Lamp, Rh[04.2009 - 07.2015] GSE20 |
81584-22040 |
US $3.40 |
||
|
81584A
|
81584A
81584-53110 Gasket, Rear Lamp Rh[04.2009 - 07.2015] GSE20 |
81584-53110 |
US $14.41 |
||
|
81585
|
81585
81585-53100 Socket & Wire, Rear LampREAR LAMP [04.2009 -] GSE20 |
81585-53100 |
US $22.86 |
||
|
81591C
|
81591C
81591-53100 Lens, Rear Lamp, LhREAR LAMP, LH [04.2009 -] GSE20 |
81591-53100 |
US $403.31 |
||
|
81594A
|
81594A
81594-53110 Gasket, Rear Lamp Lh[04.2009 - 07.2015] GSE20 |
81594-53110 |
US $14.41 |
||
|
8195222010
|
8195222010
81952-22010 Cover, Rear Lamp, Rh |
81952-22010 |
from US $0.86 |
||
|
9015960266
|
9015960266
90159-60266 SCREW |
90159-60266 |
from US $1.41 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.76 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9018906235
|
9018906235
90189-06235 GROMMET SCREW |
90189-06235 |
from US $0.59 |
||
