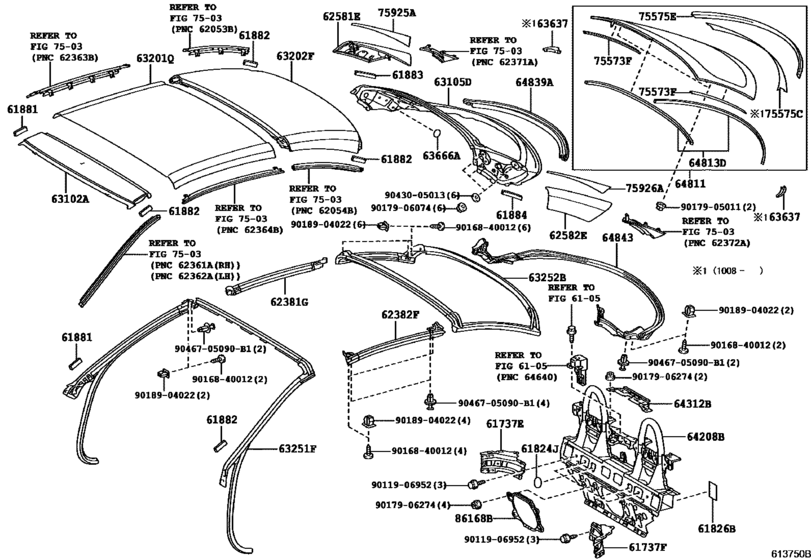

Roof Panel & Back Window Glass ([04.2009 - ] PANEL & GLASS (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61737E
|
61737E
61637-53020 Reinforcement, Quarter, Inner, RhQUARTER, INNER, RH [04.2009 - 07.2015] GSE20 |
61637-53020 |
US $25.63 |
||
|
61737F
|
61737F
61638-53020 Reinforcement, Quarter, Inner, LhQUARTER, INNER, LH [04.2009 -] GSE20 |
61638-53020 |
US $25.63 |
||
|
61824J
|
61824J
61824-12050 Plate, Noise Control, No.1[04.2009 - 11.2013] GSE20 |
61824-12050 |
US $5.82 |
||
|
61824J
|
61824J
61824-12060 Plate, Noise Control, No.1[12.2013 -] GSE20 |
61824-12060 |
US $2.91 |
||
|
61826B
|
61826B
61826-52020 Plate, Noise Control, No.3[04.2009 -] GSE20 |
61826-52020 |
US $4.22 |
||
|
61881
|
61881
61881-53010 Seal, Roof Side Rail, Front RhROOF SIDE RAIL, FRONT RH [04.2009 - 07.2009] GSE20 |
61881-53010 |
US $1.31 |
||
|
61882
|
61882
61881-53010 Seal, Roof Side Rail, Front RhROOF SIDE RAIL, FRONT RH [04.2009 - 07.2009] GSE20 |
61881-53010 |
US $1.31 |
||
|
61883
|
61883
61883-53010 Seal, Roof Side Rail, Rear RhROOF SIDE RAIL, REAR RH [04.2009 -] GSE20 |
61883-53010 |
US $2.91 |
||
|
61884
|
61884
61883-53010 Seal, Roof Side Rail, Rear RhROOF SIDE RAIL, REAR RH [04.2009 -] GSE20 |
61883-53010 |
US $2.91 |
||
|
62381G
|
62381G
62381-53010 Weatherstrip, Roof Side Rail, RhROOF SIDE RAIL, RH [04.2009 -] GSE20 |
62381-53010 |
US $93.69 |
||
|
62382F
|
62382F
62382-53010 Weatherstrip, Roof Side Rail, LhROOF SIDE RAIL, LH [04.2009 -] GSE20 |
62382-53010 |
US $93.69 |
||
|
62581E
|
62581E
75055-53010 Garnish, Quarter Pillar, RhQUARTER PILLAR, RH [04.2009 -] GSE20 |
75055-53010 |
US $57.22 |
||
|
62582E
|
62582E
75056-53010 Garnish, Quarter Pillar, LhQUARTER PILLAR, LH [04.2009 -] GSE20 |
75056-53010 |
US $57.22 |
||
|
63102A
|
63102A
63102-53070 Panel Sub-Assy, Windshield HeaderWINDSHIELD HEADER [04.2009 - 02.2013] GSE20 |
63102-53070 |
US $205.30 |
||
| replacement | |||||
|
63102A
|
63102A
63102-53071 Panel Sub-Assy, Windshield Header[04.2009 - 02.2013] GSE20 |
63102-53071 |
US $170.35 |
||
|
63102A
|
63102A
63102-53071 Panel Sub-Assy, Windshield Header[03.2013 -] GSE20 |
63102-53071 |
US $170.35 |
||
|
63105D
|
63105D
63105-53020 Frame Sub-Assy, Back Window, UpperBACK WINDOW, UPPER [04.2009 -] GSE20 |
63105-53020 |
US $198.02 |
||
|
63201Q
|
63201Q
63201-53040 Panel Sub-Assy, Slide Roof, FrontSLIDE ROOF, FRONT [04.2009 - 04.2014] GSE20 |
63201-53040 |
US $844.48 |
||
| replacement | |||||
|
63201Q
|
63201Q
63201-53041 Panel Sub-Assy, Slide Roof, Front[04.2009 - 04.2014] GSE20 |
63201-53041 |
US $844.48 |
||
|
63201Q
|
63201Q
63201-53041 Panel Sub-Assy, Slide Roof, Front[05.2014 -] GSE20 |
63201-53041 |
US $844.48 |
||
|
63202F
|
63202F
63202-53030 Panel Sub-Assy, Slide Roof, RearSLIDE ROOF, REAR [04.2009 -] GSE20 |
63202-53030 |
US $735.28 |
||
|
63251F
|
63251F
63251-53040 Weatherstrip, Removable Roof, FrontREMOVABLE ROOF, FRONT [04.2009 -] GSE20 |
63251-53040 |
US $223.16 |
||
|
63252B
|
63252B
63252-53010 Weatherstrip, Removable Roof, RearREMOVABLE ROOF, REAR [04.2009 -] GSE20 |
63252-53010 |
US $199.92 |
||
|
63637
|
63637
64571-53030 Garnish, Removable Roof[08.2010 - 11.2010] GSE20 RH |
64571-53030 |
US $31.30 |
||
| replacement | |||||
|
63637
|
63637
64571-53031 Garnish, Removable Roof[08.2010 - 11.2010] GSE20 RH |
64571-53031 |
US $26.06 |
||
|
63637
|
63637
64571-53031 Garnish, Removable Roof[11.2010 -] GSE20 RH |
64571-53031 |
US $26.06 |
||
|
63637
|
63637
64572-53030 Garnish, Removable Roof[08.2010 - 11.2010] GSE20 LH |
64572-53030 |
US $31.30 |
||
| replacement | |||||
|
63637
|
63637
64572-53031 Garnish, Removable Roof[08.2010 - 11.2010] GSE20 LH |
64572-53031 |
US $26.06 |
||
|
63637
|
63637
64572-53031 Garnish, Removable Roof[11.2010 -] GSE20 LH |
64572-53031 |
US $26.06 |
||
|
63666A
|
63666A
68678-53010 Protector, Roof, RearROOF, REAR [04.2009 -] GSE20 |
68678-53010 |
US $1.16 |
||
|
64208B
|
64208B
64208-53010 Member Sub-Assy, Room Partition CrossROOM PARTITION CROSS [04.2009 -] GSE20 |
64208-53010 |
US $406.22 |
||
|
64312B
|
64312B
64321-53030 Bracket, Package Tray, RhPACKAGE TRAY, RH [04.2009 -] GSE20 |
64321-53030 |
US $21.11 |
||
|
64811
|
64811
64801-53060
Glass, Back Window
[04.2009 - 08.2010] GSE20 |
64801-53060 |
— | ||
|
64811
|
64811
64801-53061
Glass, Back Window
[08.2010 -] GSE20 |
64801-53061 |
— | ||
|
64813D
|
64813D
56117-64010 Dam, Window Glass Adhesive[04.2009 -] GSE20 |
56117-64010 |
from US $18.01 |
||
|
64839A
|
64839A
64839-53010 Packing, Back WindowBACK WINDOW [04.2009 -] GSE20 |
64839-53010 |
US $39.46 |
||
|
64843
|
64843
64843-53010 Weatherstrip, Back Window ChannelBACK WINDOW CHANNEL [04.2009 -] GSE20 |
64843-53010 |
US $337.30 |
||
|
75573F
|
75573F
75573-53010 Moulding, Back Window, OutsideBACK WINDOW, OUTSIDE [04.2009 -] GSE20 |
75573-53010 |
US $15.29 |
||
|
75575C
|
75575C
75575-53010 Moulding, Back Window, Lower[08.2010 -] GSE20 |
75575-53010 |
US $54.89 |
||
|
75575E
|
75575E
75571-53030 Moulding, Back Window, Outside LowerBACK WINDOW, OUTSIDE LOWER [04.2009 - 08.2010] GSE20 |
75571-53030 |
US $33.63 |
||
|
75575E
|
75575E
75571-53031 Moulding, Back Window, Outside Lower[08.2010 -] GSE20 |
75571-53031 |
from US $32.64 |
||
|
75925A
|
75925A
75925-53010 Tape, Black Out, No.3 RhBLACK OUT, NO.3 RH [04.2009 -] GSE20 |
75925-53010 |
US $16.89 |
||
|
75926A
|
75926A
75926-53010 Tape, Black Out, No.3 LhBLACK OUT, NO.3 LH [04.2009 -] GSE20 |
75926-53010 |
US $16.89 |
||
|
86168B
|
86168B
86168-53010 Cover, Speaker MountingSPEAKER MOUNTING [04.2009 -] GSE20 |
86168-53010 |
US $29.70 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9016840012
|
9016840012
90168-40012 SCREW |
90168-40012 |
US $2.15 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.25 |
||
|
9043005013
|
9043005013
90430-05013 GASKETROUND TYPE |
90430-05013 |
from US $0.80 |
||
|
9046705090B1
|
9046705090B1
90467-05090-B1 Clip, Rear Bumper Side |
90467-05090-B1 |
from US $1.20 |
||
