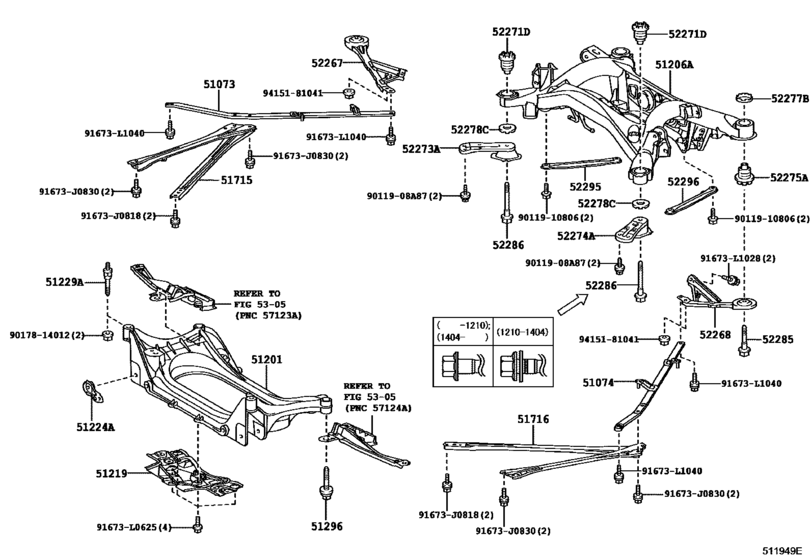

Suspension Crossmember & Under Cover ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51073
|
51073
51071-53010 Bracket Sub-Assy, Rear Body Mounting, No.2 RhREAR BODY MOUNTING, NO.2 RH [04.2009 -] GSE20 |
51071-53010 |
US $66.25 |
||
|
51074
|
51074
51072-53010 Bracket Sub-Assy, Rear Body Mounting, No.2 LhREAR BODY MOUNTING, NO.2 LH [04.2009 -] GSE20 |
51072-53010 |
US $69.16 |
||
|
51201
|
51201
51201-30130 Crossmember Sub-Assy, Front Suspension[04.2009 - 11.2010] GSE20 |
51201-30130 |
US $757.12 |
||
| replacement | |||||
|
51201
|
51201
51201-30140 Crossmember Sub-Assy, Front Suspension[04.2009 - 11.2010] GSE20 |
51201-30140 |
from US $650.52 |
||
|
51201
|
51201
51201-30140 Crossmember Sub-Assy, Front Suspension[12.2010 - 07.2015] GSE20 |
51201-30140 |
from US $650.52 |
||
|
51206A
|
51206A
51206-30081 Member Sub-Assy, Rear SuspensionREAR SUSPENSION [04.2009 - 11.2013] GSE20 |
51206-30081 |
US $815.36 |
||
| replacement | |||||
|
51206A
|
51206A
51206-30082 Member Sub-Assy, Rear Suspension[04.2009 - 11.2013] GSE20 |
51206-30082 |
from US $741.10 |
||
|
51206A
|
51206A
51206-30082 Member Sub-Assy, Rear Suspension[12.2013 -] GSE20 |
51206-30082 |
from US $741.10 |
||
|
51219
|
51219
51403-53020 Protector, Front Suspension Member, LwrFRONT SUSPENSION MEMBER, LWR [04.2009 -] GSE20 |
51403-53020 |
US $90.27 |
||
|
51224A
|
51224A
51224-30030 Plate, Front Suspension Menber Brace[04.2009 -] GSE20 |
51224-30030 |
US $29.57 |
||
|
51229A
|
51229A
90951-01004 Bolt, Front Suspension Member Mounting[04.2009 - 01.2012] GSE20 |
90951-01004 |
from US $5.39 |
||
|
51229A
|
51229A
90951-01006 Bolt, Front Suspension Member Mounting[01.2012 -] GSE20 |
90951-01006 |
US $5.56 |
||
|
51296
|
51296
90119-16013 Bolt, Front Suspension Member Mounting[04.2009 - 01.2012] GSE20 |
90119-16013 |
US $15.59 |
||
|
51296
|
51296
90119-16021 Bolt, Front Suspension Member Mounting[01.2012 -] GSE20 |
90119-16021 |
US $9.68 |
||
|
51715
|
51715
51701-53010 Bracket, Body Support, Rear RhBODY SUPPORT, REAR RH [04.2009 -] GSE20 |
51701-53010 |
US $57.95 |
||
|
51716
|
51716
51702-53010 Bracket, Body Support, Rear LhBODY SUPPORT, REAR LH [04.2009 -] GSE20 |
51702-53010 |
US $60.13 |
||
|
52267
|
52267
51601-53010 Reinforce, Rear Suspension Member Lower Stopper, RhREAR SUSPENSION MEMBER LOWER STOPPER, RH [04.2009 -] GSE20 |
51601-53010 |
US $60.86 |
||
|
52268
|
52268
51602-53010 Reinforce, Rear Suspension Member Lower Stopper, LhREAR SUSPENSION MEMBER LOWER STOPPER, LH [04.2009 -] GSE20 |
51602-53010 |
US $60.86 |
||
|
52271D
|
52271D
52271-53041 Cushion, Rear Suspension Member Body Mounting, Front[08.2012 -] GSE20 F SPORT |
52271-53041 |
US $39.01 |
||
|
52271D
|
52271D
52271-53050 Cushion, Rear Suspension Member Body Mounting, FrontREAR SUSPENSION MEMBER BODY MOUNTING, FRONT [04.2009 -] GSE20 |
52271-53050 |
US $31.16 |
||
|
52273A
|
52273A
52203-53030 Stopper, Rear Suspension Member, Lower RhREAR SUSPENSION MEMBER, LOWER RH [04.2009 -] GSE20 |
52203-53030 |
US $51.98 |
||
|
52274A
|
52274A
52204-53030 Stopper, Rear Suspension Member, Lower LhREAR SUSPENSION MEMBER, LOWER LH [04.2009 -] GSE20 |
52204-53030 |
US $51.98 |
||
|
52275A
|
52275A
52275-53041 Cushion, Rear Suspension Member Body Mounting, Rear[08.2012 -] GSE20 F SPORT |
52275-53041 |
US $57.58 |
||
|
52275A
|
52275A
52275-53050 Cushion, Rear Suspension Member Body Mounting, RearREAR SUSPENSION MEMBER BODY MOUNTING, REAR [04.2009 -] GSE20 |
52275-53050 |
US $43.24 |
||
|
52277B
|
52277B
52277-53040 Stopper, Rear Suspension Member, Rear UpperREAR SUSPENSION MEMBER, REAR UPPER [04.2009 -] GSE20 |
52277-53040 |
US $9.32 |
||
|
52277B
|
52277B
52277-53050 Stopper, Rear Suspension Member, Rear Upper[08.2012 -] GSE20 F SPORT |
52277-53050 |
US $15.51 |
||
|
52278C
|
52278C
52278-53031 Stopper, Rear Suspension Member, Rear Lower[08.2012 -] GSE20 F SPORT |
52278-53031 |
US $7.83 |
||
|
52278C
|
52278C
52278-53040 Stopper, Rear Suspension Member, Rear LowerREAR SUSPENSION MEMBER, REAR LOWER [04.2009 -] GSE20 |
52278-53040 |
US $6.26 |
||
|
52285
|
52285
52285-30021 Bolt, Differential Support Member Mounting, No.1[04.2009 - 11.2012] GSE20 |
52285-30021 |
from US $17.06 |
||
|
52285
|
52285
90119-14154 Bolt, Differential Support Member Mounting, No.1[12.2012 -] GSE20 |
90119-14154 |
US $6.45 |
||
|
52286
|
52286
52286-53020 Bolt, Differential Support Member Mounting, No.2[04.2009 - 10.2012] GSE20..6FC REFER ILLUST. |
52286-53020 |
US $45.02 |
||
|
52286
|
52286
90119-14148 Bolt, Differential Support Member Mounting, No.2[10.2012 - 04.2014] GSE20 REFER ILLUST. |
90119-14148 |
US $8.78 |
||
|
52295
|
52295
52295-30030 Brace, Rear Suspension Member, Rh[04.2009 -] GSE20 |
52295-30030 |
US $34.27 |
||
|
52296
|
52296
52295-30030 Brace, Rear Suspension Member, Rh[04.2009 -] GSE20 |
52295-30030 |
US $34.27 |
||
|
91673J0818
|
91673J0818
91673-J0818 New Genuine Part |
91673-J0818 |
US $1.61 |
||
|
91673J0830
|
91673J0830
91673-J0830 New Genuine Part |
91673-J0830 |
US $3.05 |
||
|
91673L0625
|
91673L0625
91673-L0625 BOLT FLANGE |
91673-L0625 |
US $1.43 |
||
|
91673L1028
|
91673L1028
91673-L1028 New Genuine Part |
91673-L1028 |
US $1.60 |
||
|
91673L1040
|
91673L1040
91673-L1040 New Genuine Part |
91673-L1040 |
US $2.33 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.89 |
||
|
9011910806
|
9011910806
90119-10806 New Genuine Part |
90119-10806 |
US $14.52 |
||
|
9017814012
|
9017814012
90178-14012 NUT FLANGE |
90178-14012 |
US $4.66 |
||
|
9415181041
|
9415181041
94151-81041 New Genuine Part |
94151-81041 |
US $1.79 |
||
