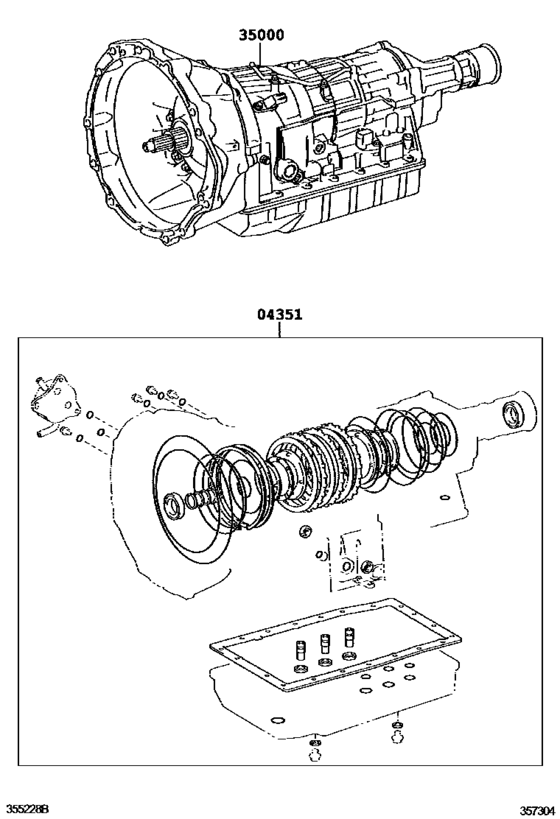

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([04.2009 - ] A960E (0904- )6FC) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04351
|
04351
04351-30970 Gasket Kit, Automatic Transmission Overhaul[04.2009 -] GSE20..6FC |
04351-30970 |
US $368.16 |
||
|
35000
|
35000
35000-53110 Transmission Assy, Automatic[08.2012 - 06.2014] GSE20..RHD A960E,HONGKONG SPEC |
35000-53110 |
US $5,969.60 |
||
| replacement | |||||
|
35000
|
35000
35000-53240 Transmission Assy, Automatic[08.2012 - 06.2014] GSE20..RHD A960E,HONGKONG SPEC |
35000-53240 |
US $5,969.60 |
||
|
35000
|
35000
35000-53120
Transmission Assy, Automatic
[04.2009 - 06.2014] GSE20..6FC A960E |
35000-53120 |
— | ||
| replacement | |||||
|
35000
|
35000
35000-53250
Transmission Assy, Automatic
[04.2009 - 06.2014] GSE20..6FC A960E |
35000-53250 |
— | ||
|
35000
|
35000
35000-53240 Transmission Assy, Automatic[07.2014 - 11.2014] GSE20..RHD A960E,HONGKONG SPEC |
35000-53240 |
US $5,969.60 |
||
|
35000
|
35000
35000-53250
Transmission Assy, Automatic
[07.2014 -] GSE20 A960E |
35000-53250 |
— | ||
