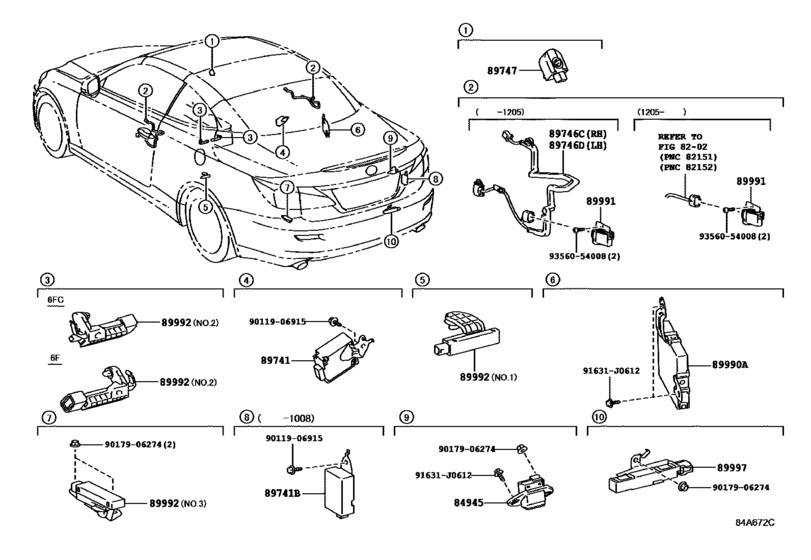

Wireless Door Lock ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84945-53010 Switch, Luggage Electrical Key[04.2009 - 07.2015] GSE20 |
84945-53010 |
from US $49.82 |
||
|
89741
|
89741
89740-53091
Receiver, Door Control
[04.2009 - 11.2014] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD AUSTRALIA SPEC; GSE20..RHD AUSTRALIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1) |
89740-53091 |
— | ||
|
89741
|
89741
89740-53171
Receiver, Door Control
[04.2009 - 04.2010] GSE20 |
89740-53171 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53173
Receiver, Door Control
[04.2009 - 04.2010] GSE20 |
89740-53173 |
— | ||
|
89741
|
89741
89740-53172
Receiver, Door Control
[05.2010 -] GSE20 |
89740-53172 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53173
Receiver, Door Control
[05.2010 -] GSE20 |
89740-53173 |
— | ||
|
89741
|
89741
89740-53191
Receiver, Door Control
[04.2009 - 11.2014] GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1) |
89740-53191 |
— | ||
|
89741B
|
89741B
89740-53100
Receiver, Door Control, No.2
[04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD NEW ZEALAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC HONGKONG SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD AUSTRALIA SPEC; GSE20..RHD AUSTRALIA SPEC& |
89740-53100 |
— | ||
|
89741B
|
89741B
89740-53180
Receiver, Door Control, No.2
[04.2009 - 08.2010] GSE20 |
89740-53180 |
— | ||
|
89746C
|
89746C
89746-53030 Harness, Electrical Key Wire, No.1ELECTRICAL KEY WIRE, NO.1 [04.2009 - 05.2012] GSE20 |
89746-53030 |
US $50.52 |
||
|
89746D
|
89746D
89746-53040 Harness, Electrical Key Wire, No.2ELECTRICAL KEY WIRE, NO.2 [04.2009 - 05.2012] GSE20 |
89746-53040 |
US $50.52 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[04.2009 -] GSE20 |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-53051
Computer Assy, Smart Key
[04.2009 - 04.2010] GSE20 |
89990-53051 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[04.2009 - 04.2010] GSE20 |
89990-53155 |
— | ||
|
89990A
|
89990A
89990-53150
Computer Assy, Smart Key
[05.2010 - 05.2011] GSE20 |
89990-53150 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[05.2010 - 05.2011] GSE20 |
89990-53155 |
— | ||
|
89990A
|
89990A
89990-53151
Computer Assy, Smart Key
[06.2011 - 08.2012] GSE20 |
89990-53151 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[06.2011 - 08.2012] GSE20 |
89990-53155 |
— | ||
|
89990A
|
89990A
89990-53152
Computer Assy, Smart Key
[09.2012 - 08.2013] GSE20 |
89990-53152 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[09.2012 - 08.2013] GSE20 |
89990-53155 |
— | ||
|
89990A
|
89990A
89990-53153
Computer Assy, Smart Key
[09.2013 - 10.2014] GSE20 |
89990-53153 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[09.2013 - 10.2014] GSE20 |
89990-53155 |
— | ||
|
89990A
|
89990A
89990-53154
Computer Assy, Smart Key
[10.2014 - 07.2015] GSE20 |
89990-53154 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53155
Computer Assy, Smart Key
[10.2014 - 07.2015] GSE20 |
89990-53155 |
— | ||
|
89991
|
89991
89991-30040 Oscillator, Door Electrical Key[04.2009 - 07.2015] GSE20 RH |
89991-30040 |
US $132.79 |
||
|
89991
|
89991
89991-30050 Oscillator, Door Electrical Key[04.2009 - 07.2015] GSE20 LH |
89991-30050 |
US $123.76 |
||
|
89992
|
89992
89992-53020 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY [04.2009 -] GSE20 NO.1 |
89992-53020 |
US $126.67 |
||
|
89992
|
89992
89992-53040 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY [04.2009 - 11.2014] GSE20..LHD..6F;GSE20..RHD..6FC NO.2 |
89992-53040 |
US $126.67 |
||
|
89992
|
89992
89992-53050 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY [04.2009 -] GSE20 NO.3 |
89992-53050 |
US $126.67 |
||
|
89997
|
89997
89997-53020 Antenna, Electrical KeyELECTRICAL KEY [04.2009 -] GSE20 |
89997-53020 |
US $60.57 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9356054008
|
9356054008
93560-54008 New Genuine Part |
93560-54008 |
US $1.08 |
||
