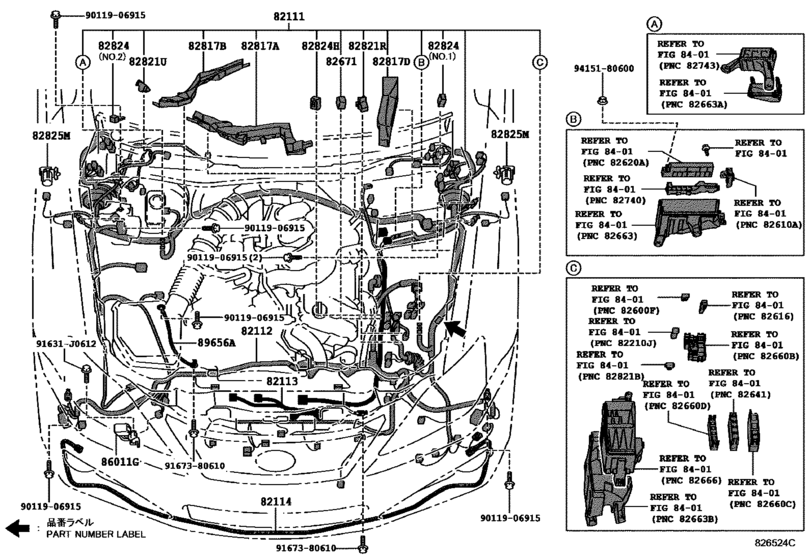

Wiring & Clamp ([04.2009 - ] ENGINE ROOM (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-53E90
Wire, Engine Room Main
[04.2009 - 08.2010] GSE20..RHD..6FC; GSE20..RHD..6FC PART NUMBER LABEL=82111-53E90 |
82111-53E90 |
— | ||
|
82111
|
82111
82111-53E91
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82111-53E91 |
82111-53E91 |
— | ||
|
82111
|
82111
82111-53E92
Wire, Engine Room Main
[08.2012 - 11.2014] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82111-53E92 |
82111-53E92 |
— | ||
|
82111
|
82111
82111-53F00
Wire, Engine Room Main
[04.2009 - 08.2010] GSE20..RHD..6FC LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..6FC PART NUMBER LABEL=82111-53F00 |
82111-53F00 |
— | ||
|
82111
|
82111
82111-53F01
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING); GSE20..RHD HONGKONG SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING); GSE20..RHD SINGAPORE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO |
82111-53F01 |
— | ||
|
82111
|
82111
82111-53F02
Wire, Engine Room Main
[08.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING); GSE20..RHD PART NUMBER LABEL=82111-53F02 |
82111-53F02 |
— | ||
|
82112
|
82112
82112-53220 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [04.2009 - 08.2010] GSE20 |
82112-53220 |
US $535.81 |
||
|
82112
|
82112
82112-53221 Wire, Engine Room, No.2[08.2010 -] GSE20 |
82112-53221 |
US $396.03 |
||
|
82112
|
82112
82112-53230
Wire, Engine Room, No.2
[04.2009 - 08.2010] GSE20..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB); GSE20..RHD..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA) |
82112-53230 |
— | ||
|
82112
|
82112
82112-53231 Wire, Engine Room, No.2[08.2010 - 11.2014] GSE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
82112-53231 |
US $396.03 |
||
|
82112
|
82112
82112-53260
Wire, Engine Room, No.2
[08.2010 -] GSE20 LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
82112-53260 |
— | ||
|
82112
|
82112
82112-53270
Wire, Engine Room, No.2
[08.2010 - 11.2014] GSE20..RHD LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WI TH(AUTO LEVELING) |
82112-53270 |
— | ||
|
82113
|
82113
82113-53010 Wire, Engine Room, No.3[04.2009 - 11.2014] GSE20..RHD |
82113-53010 |
US $243.60 |
||
|
82114
|
82114
82114-53022 Wire, Engine Room, No.4[08.2012 - 07.2015] GSE20 F SPORT |
82114-53022 |
US $39.75 |
||
|
82114
|
82114
82114-53050 Wire, Engine Room, No.4ENGINE ROOM, NO.4 [04.2009 - 07.2015] GSE20 |
82114-53050 |
US $31.74 |
||
|
82671
|
82671
82671-30340 Block, Junction[04.2009 -] GSE20 |
82671-30340 |
US $10.21 |
||
|
82817A
|
82817A
82817-53150 Protector, Wiring Harness, No.2[04.2009 - 11.2014] GSE20..RHD |
82817-53150 |
US $23.73 |
||
|
82817B
|
82817B
82817-30A20 Protector, Wiring Harness, No.1[04.2009 - 11.2014] GSE20..RHD |
82817-30A20 |
US $15.43 |
||
|
82817D
|
82817D
82817-53190 Protector, Wiring Harness, No.5[04.2009 - 11.2014] GSE20..RHD |
82817-53190 |
US $12.23 |
||
|
82821R
|
82821R
82821-30600 Cover, Connector[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82821-30600 |
US $1.08 |
||
|
82821U
|
82821U
82821-22120 Cover, Connector[08.2010 -] GSE20..RHD |
82821-22120 |
US $2.48 |
||
|
82824
|
82824
82824-30130 Connector, Wiring Harness[04.2009 -] GSE20 NO.1 |
82824-30130 |
US $3.94 |
||
|
82824
|
82824
82824-48020 Connector, Wiring Harness[04.2009 -] GSE20 NO.2 |
82824-48020 |
from US $24.38 |
||
|
82824H
|
82824H
82824-28180 Connector, Wiring Harness[04.2009 -] GSE20 |
82824-28180 |
US $6.41 |
||
|
82825M
|
82825M
89776-53020
Connector, Wiring Harness
[04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..RHD NEW ZEALAND SPEC&SPARE TIRE-TEMPORARY(T145/70D17); GSE20..RHD..6FC HONGKONG SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..RHD..6FC SINGAPORE SPEC&SPARE TIRE-TEMPO |
89776-53020 |
— | ||
|
86011G
|
86011G
86516-53010 Condenser[04.2009 -] GSE20 |
86516-53010 |
US $67.56 |
||
|
89656A
|
89656A
89656-30010 Wire, Power Steering Earth[04.2009 -] GSE20 |
89656-30010 |
US $15.38 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9167380610
|
9167380610
91673-80610 New Genuine Part |
91673-80610 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
