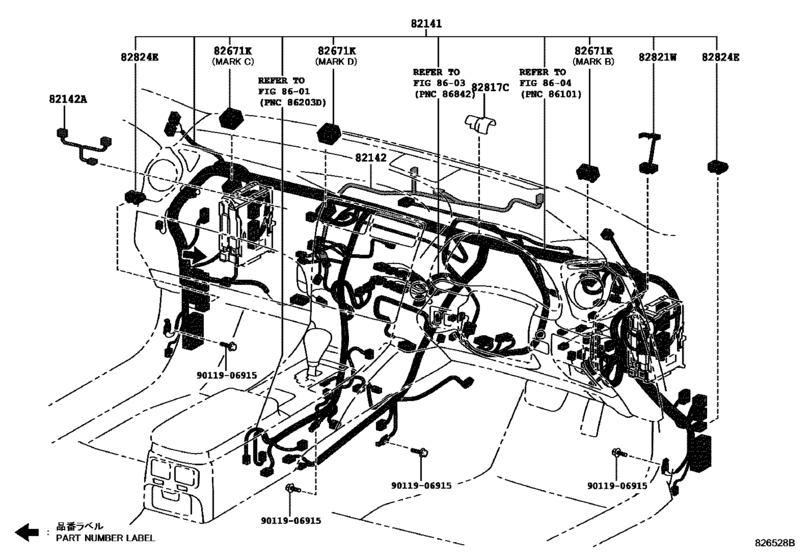

Wiring & Clamp ([04.2009 - ] INSTRUMENT PANEL (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-53Q50
Wire, Instrument Panel
[04.2009 - 08.2009] GSE20..RHD..6FC NEW ZEALAND SPEC&AUDIO JACK-MINI JACK; GSE20..RHD..6FC HONGKONG SPEC&AUDIO JACK-MINI JACK; GSE20..RHD..6FC SINGAPORE SPEC&AUDIO JACK-MINI JACK; GSE20..RHD..6FC THAILAND SPEC&AUDIO JACK-MINI JACK; GSE20..RHD..6FC AUSTRAL |
82141-53Q50 |
— | ||
|
82141
|
82141
82141-53Q60
Wire, Instrument Panel
[04.2009 - 08.2009] GSE20..RHD..6FC NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK&EMV & NAVIGATION SYSTEM-DVD NAVIGATION; GSE20..RHD..6FC NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK&EMV & NAV |
82141-53Q60 |
— | ||
|
82141
|
82141
82141-53Q70
Wire, Instrument Panel
[04.2009 - 08.2010] GSE20..RHD..6FC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD..6FC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD..6FC PART NUMBER LABEL=82141-53Q70 |
82141-53Q70 |
— | ||
|
82141
|
82141
82141-53Q71
Wire, Instrument Panel
[08.2010 - 08.2011] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD PART NUMBER LABEL=82141-53Q71 |
82141-53Q71 |
— | ||
|
82141
|
82141
82141-53Q72
Wire, Instrument Panel
[08.2011 - 08.2012] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD PART NUMBER LABEL=82141-53Q72 |
82141-53Q72 |
— | ||
|
82141
|
82141
82141-53Q73
Wire, Instrument Panel
[08.2012 - 08.2013] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD PART NUMBER LABEL=82141-53Q73 |
82141-53Q73 |
— | ||
|
82141
|
82141
82141-53R30
Wire, Instrument Panel
[04.2009 - 08.2010] GSE20..RHD..6FC; GSE20..RHD..6FC PART NUMBER LABEL=82141-53R30 |
82141-53R30 |
— | ||
|
82141
|
82141
82141-53R31
Wire, Instrument Panel
[08.2010 - 08.2011] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82141-53R31 |
82141-53R31 |
— | ||
|
82141
|
82141
82141-53R32
Wire, Instrument Panel
[08.2011 - 08.2012] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82141-53R32 |
82141-53R32 |
— | ||
|
82141
|
82141
82141-53R33
Wire, Instrument Panel
[08.2012 - 11.2014] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82141-53R33 |
82141-53R33 |
— | ||
|
82141
|
82141
82141-53T20
Wire, Instrument Panel
[04.2009 - 08.2010] GSE20..RHD..6FC NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RHD..6FC NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RH |
82141-53T20 |
— | ||
|
82141
|
82141
82141-53T21
Wire, Instrument Panel
[08.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RHD AUSTRALI |
82141-53T21 |
— | ||
|
82141
|
82141
82141-53T22
Wire, Instrument Panel
[08.2011 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DV D NAVIGATION; GSE20..RHD AUSTRALI |
82141-53T22 |
— | ||
|
82141
|
82141
82145-53700
Wire, Instrument Panel
[08.2013 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 12SPEA |
82145-53700 |
— | ||
|
82142
|
82142
82142-53060 Wire, Instrument Panel, No.2[04.2009 - 07.2009] GSE20..RHD |
82142-53060 |
US $25.63 |
||
|
82142
|
82142
82142-53061
Wire, Instrument Panel, No.2
[08.2009 - 11.2014] GSE20..RHD |
82142-53061 |
— | ||
|
82142A
|
82142A
82140-53010 Wire, Instrument Panel, No.2[04.2009 - 07.2015] GSE20 |
82140-53010 |
US $10.63 |
||
|
82671K
|
82671K
82671-53010 Block, Junction, No.3[04.2009 -] GSE20 MARK B |
82671-53010 |
US $13.40 |
||
|
82671K
|
82671K
82671-53020 Block, Junction, No.3[04.2009 -] GSE20 MARK C |
82671-53020 |
US $13.40 |
||
|
82671K
|
82671K
82671-53030 Block, Junction, No.3[04.2009 -] GSE20 MARK D |
82671-53030 |
US $13.40 |
||
|
82817C
|
82817C
82817-33820 Protector, Wiring Harness, No.4[04.2009 -] GSE20 |
82817-33820 |
US $5.24 |
||
|
82821W
|
82821W
82821-20330 Cover, Connector[04.2009 -] GSE20 |
82821-20330 |
US $4.12 |
||
|
82824E
|
82824E
82824-50340 Connector, Wiring Harness[04.2009 -] GSE20 |
82824-50340 |
US $15.14 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
