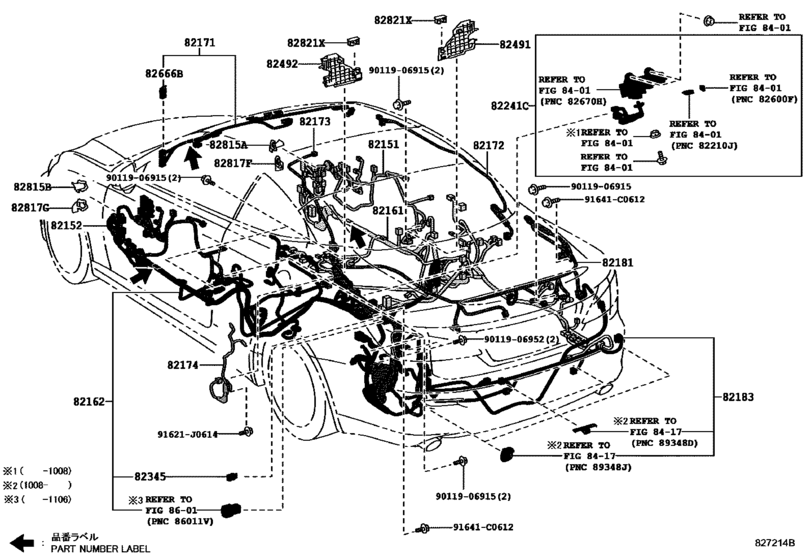

Wiring & Clamp ([04.2009 - ] DOOR,FLOOR & ROOF (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-53280 Wire, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD..6FC MALAYSIA SPEC |
82151-53280 |
US $240.24 |
||
|
82151
|
82151
82151-53281 Wire, Front Door, Rh[08.2010 - 04.2012] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
82151-53281 |
US $240.24 |
||
| replacement | |||||
|
82151
|
82151
82151-53282 Wire, Front Door, Rh[08.2010 - 04.2012] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
82151-53282 |
US $199.47 |
||
|
82151
|
82151
82151-53282 Wire, Front Door, Rh[05.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC |
82151-53282 |
US $199.47 |
||
|
82151
|
82151
82151-53290 Wire, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD..6FC HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD..6FC SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD..6FC THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD |
82151-53290 |
US $267.90 |
||
|
82151
|
82151
82151-53291 Wire, Front Door, Rh[08.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD MALAYSIA SPEC& |
82151-53291 |
US $267.90 |
||
| replacement | |||||
|
82151
|
82151
82151-53292 Wire, Front Door, Rh[08.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD MALAYSIA SPEC& |
82151-53292 |
US $222.77 |
||
|
82151
|
82151
82151-53292 Wire, Front Door, Rh[05.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82151-53292 |
US $222.77 |
||
|
82151
|
82151
82151-53300
Wire, Front Door, Rh
[04.2009 - 08.2010] GSE20..RHD |
82151-53300 |
— | ||
|
82151
|
82151
82151-53301
Wire, Front Door, Rh
[08.2010 - 04.2012] GSE20..RHD |
82151-53301 |
— | ||
| replacement | |||||
|
82151
|
82151
82151-53302
Wire, Front Door, Rh
[08.2010 - 04.2012] GSE20..RHD |
82151-53302 |
— | ||
|
82151
|
82151
82151-53302
Wire, Front Door, Rh
[05.2012 - 11.2014] GSE20..RHD |
82151-53302 |
— | ||
|
82151
|
82151
82151-53310
Wire, Front Door, Rh
[04.2009 - 08.2010] GSE20..RHD LUXURY PACKAGE |
82151-53310 |
— | ||
|
82151
|
82151
82151-53311
Wire, Front Door, Rh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE |
82151-53311 |
— | ||
| replacement | |||||
|
82151
|
82151
82151-53312
Wire, Front Door, Rh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE |
82151-53312 |
— | ||
|
82151
|
82151
82151-53312
Wire, Front Door, Rh
[05.2012 - 11.2014] GSE20..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82151-53312 |
— | ||
|
82151
|
82151
82151-53350
Wire, Front Door, Rh
[08.2011 - 04.2012] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82151-53350 |
— | ||
| replacement | |||||
|
82151
|
82151
82151-53351
Wire, Front Door, Rh
[08.2011 - 04.2012] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82151-53351 |
— | ||
|
82151
|
82151
82151-53351
Wire, Front Door, Rh
[05.2012 - 11.2014] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82151-53351 |
— | ||
|
82152
|
82152
82152-53300 Wire, Front Door, LhFRONT DOOR, LH [04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD..6FC MALAYSIA SPEC |
82152-53300 |
US $240.24 |
||
|
82152
|
82152
82152-53301 Wire, Front Door, Lh[08.2010 - 04.2012] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
82152-53301 |
US $240.24 |
||
| replacement | |||||
|
82152
|
82152
82152-53302 Wire, Front Door, Lh[08.2010 - 04.2012] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC |
82152-53302 |
US $199.47 |
||
|
82152
|
82152
82152-53302 Wire, Front Door, Lh[05.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC |
82152-53302 |
US $199.47 |
||
|
82152
|
82152
82152-53310 Wire, Front Door, LhFRONT DOOR, LH [04.2009 - 08.2010] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD..6FC HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD..6FC SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD..6FC THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD |
82152-53310 |
US $240.24 |
||
|
82152
|
82152
82152-53311 Wire, Front Door, Lh[08.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD MALAYSIA SPEC& |
82152-53311 |
US $240.24 |
||
| replacement | |||||
|
82152
|
82152
82152-53312 Wire, Front Door, Lh[08.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE; GSE20..RHD HONGKONG SPEC&LUXURY PACKAGE; GSE20..RHD SINGAPORE SPEC&LUXURY PACKAGE; GSE20..RHD THAILAND SPEC&LUXURY PACKAGE; GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE; GSE20..RHD MALAYSIA SPEC& |
82152-53312 |
US $199.47 |
||
|
82152
|
82152
82152-53312 Wire, Front Door, Lh[05.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82152-53312 |
US $199.47 |
||
|
82152
|
82152
82152-53320
Wire, Front Door, Lh
[04.2009 - 08.2010] GSE20..RHD |
82152-53320 |
— | ||
|
82152
|
82152
82152-53321
Wire, Front Door, Lh
[08.2010 - 04.2012] GSE20..RHD |
82152-53321 |
— | ||
| replacement | |||||
|
82152
|
82152
82152-53322
Wire, Front Door, Lh
[08.2010 - 04.2012] GSE20..RHD |
82152-53322 |
— | ||
|
82152
|
82152
82152-53322
Wire, Front Door, Lh
[05.2012 - 11.2014] GSE20..RHD |
82152-53322 |
— | ||
|
82152
|
82152
82152-53330
Wire, Front Door, Lh
[04.2009 - 08.2010] GSE20..RHD LUXURY PACKAGE |
82152-53330 |
— | ||
|
82152
|
82152
82152-53331
Wire, Front Door, Lh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE |
82152-53331 |
— | ||
| replacement | |||||
|
82152
|
82152
82152-53332
Wire, Front Door, Lh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE |
82152-53332 |
— | ||
|
82152
|
82152
82152-53332
Wire, Front Door, Lh
[05.2012 - 11.2014] GSE20..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82152-53332 |
— | ||
|
82152
|
82152
82152-53370
Wire, Front Door, Lh
[08.2011 - 04.2012] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82152-53370 |
— | ||
| replacement | |||||
|
82152
|
82152
82152-53371
Wire, Front Door, Lh
[08.2011 - 04.2012] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82152-53371 |
— | ||
|
82152
|
82152
82152-53371
Wire, Front Door, Lh
[05.2012 - 11.2014] GSE20..RHD AUSTRALIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE |
82152-53371 |
— | ||
|
82161
|
82161
82161-53A30
Wire, Floor
[04.2009 - 08.2010] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82161-53A30 |
82161-53A30 |
— | ||
|
82161
|
82161
82161-53A31
Wire, Floor
[08.2010 - 08.2012] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82161-53A31 |
82161-53A31 |
— | ||
|
82161
|
82161
82161-53A32
Wire, Floor
[08.2012 - 11.2014] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82161-53A32 |
82161-53A32 |
— | ||
|
82161
|
82161
82161-53A40 Wire, FloorFLOOR [04.2009 - 08.2010] GSE20..RHD..6FC NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM CD-CHANGER 8SU PERKAER NAVI; GSE20..RHD..6FC AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM CD-CHANGER 8SUPE RKAER NAVI; GSE20..RHD. |
82161-53A40 |
US $1,403.58 |
||
|
82161
|
82161
82161-53A41 Wire, Floor[08.2010 - 08.2012] GSE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAV I; GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD PART NUMBER LABEL=82161-53A41 |
82161-53A41 |
US $1,403.58 |
||
|
82161
|
82161
82161-53A42 Wire, Floor[08.2012 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM DVD 8SPEAKER; GSE20..RHD PART NUMBER LABEL=82161-53A42 |
82161-53A42 |
US $1,169.17 |
||
|
82161
|
82161
82161-53A50 Wire, FloorFLOOR [04.2009 - 08.2010] GSE20..RHD..6FC NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM DVD-CHANGER 12 SPEAKER NAVI; GSE20..RHD..6FC AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM DVD-CHANGER 12SP EAKER NAVI; GSE20..RHD. |
82161-53A50 |
US $1,403.58 |
||
|
82161
|
82161
82161-53A51 Wire, Floor[08.2010 - 08.2012] GSE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAV I; GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD PART NUMBER LABEL=82161-53A51 |
82161-53A51 |
US $1,403.58 |
||
|
82161
|
82161
82161-53A52 Wire, Floor[08.2012 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD PART NUMBER LABEL=82161-53A52 |
82161-53A52 |
US $1,169.17 |
||
|
82162
|
82162
82162-53B70 Wire, Floor, No.2FLOOR, NO.2 [04.2009 - 08.2010] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82162-53B70 |
82162-53B70 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B71 Wire, Floor, No.2[08.2010 - 06.2011] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82162-53B71 |
82162-53B71 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B72 Wire, Floor, No.2[06.2011 - 08.2012] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82162-53B72 |
82162-53B72 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B73 Wire, Floor, No.2[08.2012 - 11.2014] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82162-53B73 |
82162-53B73 |
US $1,397.76 |
||
|
82162
|
82162
82162-53B80 Wire, Floor, No.2FLOOR, NO.2 [04.2009 - 08.2010] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD PART NUMBER LABEL=82162-53B80 |
82162-53B80 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B81 Wire, Floor, No.2[08.2010 - 06.2011] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD PART NUMBER LABEL=82162-53B81 |
82162-53B81 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B82 Wire, Floor, No.2[06.2011 - 08.2012] GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD PART NUMBER LABEL=82162-53B82 |
82162-53B82 |
US $1,688.96 |
||
|
82162
|
82162
82162-53B83 Wire, Floor, No.2[08.2012 - 11.2014] GSE20..RHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..RHD PART NUMBER LABEL=82162-53B83 |
82162-53B83 |
US $1,397.76 |
||
|
82171
|
82171
82171-53480
Wire, Roof, No.1
[04.2009 - 08.2011] GSE20; GSE20 PART NUMBER LABEL=82171-53480 |
82171-53480 |
— | ||
|
82171
|
82171
82171-53481
Wire, Roof, No.1
[08.2011 -] GSE20; GSE20 PART NUMBER LABEL=82171-53481 |
82171-53481 |
— | ||
|
82171
|
82171
82171-53500 Wire, Roof, No.1ROOF, NO.1 [04.2009 - 08.2012] GSE20..RHD LUXURY PACKAGE; GSE20..RHD PART NUMBER LABEL=82171-53500 |
82171-53500 |
US $101.92 |
||
|
82171
|
82171
82171-53501 Wire, Roof, No.1[08.2012 - 11.2014] GSE20..RHD LUXURY PACKAGE; GSE20..RHD PART NUMBER LABEL=82171-53501 |
82171-53501 |
US $84.45 |
||
|
82172
|
82172
82172-53010 Wire, Roof, No.2ROOF, NO.2 [04.2009 -] GSE20 |
82172-53010 |
US $55.62 |
||
|
82173
|
82173
82173-53010 Wire, Roof, No.3ROOF, NO.3 [04.2009 -] GSE20 |
82173-53010 |
US $47.61 |
||
|
82174
|
82174
82174-53010 Wire, Roof, No.4ROOF, NO.4 [04.2009 -] GSE20 |
82174-53010 |
US $26.50 |
||
|
82181
|
82181
82181-53020 Wire, Luggage Room, No.1LUGGAGE ROOM, NO.1 [04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION; GSE20..RHD AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION; GSE20..LHD..6FC TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
82181-53020 |
US $297.02 |
||
|
82181
|
82181
82181-53030
Wire, Luggage Room, No.1
[04.2009 -] GSE20 |
82181-53030 |
— | ||
|
82183
|
82183
82183-53030
Wire, Luggage Room, No.3
[04.2009 - 08.2010] GSE20 |
82183-53030 |
— | ||
|
82183
|
82183
82183-53031
Wire, Luggage Room, No.3
[08.2010 - 07.2015] GSE20 |
82183-53031 |
— | ||
|
82241C
|
82241C
82241-53010 Wire, RelayRELAY [04.2009 -] GSE20 |
82241-53010 |
US $133.95 |
||
|
82345
|
82345
82345-20060 Diode[04.2009 -] GSE20 |
82345-20060 |
US $11.01 |
||
|
82491
|
82491
82811-53010 Plate, Wiring Harness Protector, No.1WIRING HARNESS PROTECTOR, NO.1 [04.2009 -] GSE20 |
82811-53010 |
US $29.70 |
||
|
82492
|
82492
82811-53020 Plate, Wiring Harness Protector, No.2WIRING HARNESS PROTECTOR, NO.2 [04.2009 -] GSE20 |
82811-53020 |
US $30.14 |
||
|
82666B
|
82666B
82666-60220 Holder, Connector No.3[04.2009 -] GSE20 |
82666-60220 |
US $2.33 |
||
|
82815A
|
82815A
82815-53160 Cover, Wiring Harness ProtectorWIRING HARNESS PROTECTOR [04.2009 -] GSE20 |
82815-53160 |
US $8.74 |
||
|
82815B
|
82815B
82815-53180 Cover, Wiring Harness ProtectorWIRING HARNESS PROTECTOR [04.2009 -] GSE20 |
82815-53180 |
US $8.74 |
||
|
82817F
|
82817F
82817-53540 Protector, Wiring Harness, No.7WIRING HARNESS, NO.7 [04.2009 -] GSE20 |
82817-53540 |
US $7.72 |
||
|
82817G
|
82817G
82817-53570 Protector, Wiring Harness, No.8WIRING HARNESS, NO.8 [04.2009 -] GSE20 |
82817-53570 |
US $7.72 |
||
|
82821X
|
82821X
82821-53040 Cover, ConnectorCONNECTOR [04.2009 -] GSE20 |
82821-53040 |
US $8.44 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
91641C0612
|
91641C0612
91641-C0612 New Genuine Part |
91641-C0612 |
US $0.87 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
