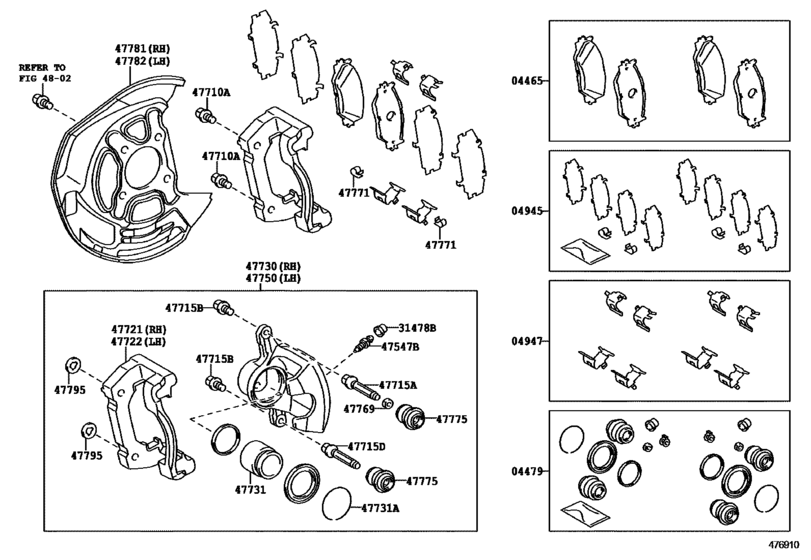

Front Disc Brake Caliper & Dust Cover ([04.2009 - ] PHILIPPINE,CHINA,ARGENTINE SPEC (0904- )GSE22..GCC) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS300
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-30410
Pad Kit, Disc Brake, Front
[04.2009 - 12.2012] GSE22..GCC MARK TEXTAR T4146 |
04465-30410 |
— | ||
| replacement | |||||
|
04465
|
04465
04465-30500 Pad Kit, Disc Brake, Front[04.2009 - 12.2012] GSE22..GCC MARK TEXTAR T4146 |
04465-30500 |
from US $176 |
||
|
04465
|
04465
04465-30500 Pad Kit, Disc Brake, Front[12.2012 -] GSE22..GCC MARK TEXTAR T4146 |
04465-30500 |
from US $176 |
||
|
04465
|
04465
04465-53040 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [04.2009 - 08.2010] GSE22..GCC MARK TEXTAR T4146,CHINA SPEC; GSE22..GCC MARK TEXTAR T4146,ARGENTINE SPEC |
04465-53040 |
from US $185.60 |
||
|
04479
|
04479
04478-22040 Cylinder Kit, Disc Brake, Front[04.2009 -] GSE22..GCC |
04478-22040 |
from US $26.11 |
||
|
04479
|
04479
04478-30250 Cylinder Kit, Disc Brake, Front[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
04478-30250 |
from US $52.24 |
||
|
04945
|
04945
04945-22152
Shim Kit, Anti Squeal, Front
[04.2009 - 12.2012] GSE22..GCC |
04945-22152 |
— | ||
| replacement | |||||
|
04945
|
04945
04945-30350 Shim Kit, Anti Squeal, Front[04.2009 - 12.2012] GSE22..GCC |
04945-30350 |
from US $22.01 |
||
|
04945
|
04945
04945-30350 Shim Kit, Anti Squeal, Front[12.2012 -] GSE22..GCC |
04945-30350 |
from US $22.01 |
||
|
04945
|
04945
04945-53050 Shim Kit, Anti Squeal, FrontANTI SQUEAL, FRONT [04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
04945-53050 |
from US $49.56 |
||
|
04947
|
04947
04947-22070 Fitting Kit, Disc Brake, Front[04.2009 -] GSE22..GCC |
04947-22070 |
from US $17.56 |
||
|
04947
|
04947
04947-53020 Fitting Kit, Disc Brake, Front[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
04947-53020 |
from US $46.37 |
||
|
31478B
|
31478B
31478-14010 Cap, Bleeder Plug(For Front Disc Brake)[04.2009 -] GSE22..GCC |
31478-14010 |
from US $2.59 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
31478-30010 |
from US $1.52 |
||
|
47547B
|
47547B
47547-27030 Plug, Bleeder(For Front Disc Brake)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47547-27030 |
from US $3.10 |
||
|
47547B
|
47547B
47547-50010 Plug, Bleeder(For Front Disc Brake)[04.2009 -] GSE22..GCC |
47547-50010 |
from US $2.30 |
||
|
47710A
|
47710A
90119-12415 Bolt, Hexagon(For Front Disc Brake Caliper)[11.2011 - 07.2015] GSE2# *12-1.25PX45-30 |
90119-12415 |
from US $1.50 |
||
|
47710A
|
47710A
91552-K1240 Bolt, Hexagon(For Front Disc Brake Caliper)[04.2009 - 11.2011] GSE2# *12-1.25PX40-30 |
91552-K1240 |
from US $1.93 |
||
|
47715A
|
47715A
47715-22070 Pin, Front Disc Brake Cylinder Slide[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47715-22070 |
from US $5.95 |
||
| replacement | |||||
|
47715A
|
47715A
47715220701
Pin, Cylinder Slide
[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47715220701 |
— | ||
|
47715B
|
47715B
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
90105-08164 |
from US $0.92 |
||
|
47715D
|
47715D
47715-52190 Pin, Main(For Front Disc Brake Cylinder Slide)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47715-52190 |
from US $5.99 |
||
|
47721
|
47721
47721-53060 Mounting, Front Disc Brake Cylinder, Rh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47721-53060 |
US $114.80 |
||
|
47722
|
47722
47722-53060 Mounting, Front Disc Brake Cylinder, Lh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47722-53060 |
US $114.80 |
||
|
47730
|
47730
47730-22460 Cylinder Assy, Front Disc Brake, Rh[04.2009 -] GSE22..GCC |
47730-22460 |
from US $481.79 |
||
|
47730
|
47730
47730-53060 Cylinder Assy, Front Disc Brake, Rh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47730-53060 |
US $400.40 |
||
|
47731
|
47731
47731-50070 Piston, Front Disc Brake[04.2009 -] GSE22..GCC |
47731-50070 |
from US $14.31 |
||
|
47731
|
47731
47731-53060
Piston, Front Disc Brake
[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47731-53060 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-12A10 Piston, Front Disc Brake[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47731-12A10 |
from US $19.68 |
||
|
47731A
|
47731A
90520-86005 Ring, Set(For Front Disc Brake Piston)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
90520-86005 |
US $2.48 |
||
|
47750
|
47750
47750-22460 Cylinder Assy, Disc Brake, Lh[04.2009 -] GSE22..GCC |
47750-22460 |
US $516.36 |
||
|
47750
|
47750
47750-53060 Cylinder Assy, Disc Brake, Lh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47750-53060 |
US $416.93 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47769-50010 |
from US $0.76 |
||
|
47771
|
47771
47771-33340 Plate, Pad Wear Indicator, No.1[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47771-33340 |
US $2.15 |
||
|
47775
|
47775
47775-50010 Boot, Bush Dust(For Front Disc Brake)[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47775-50010 |
from US $2.28 |
||
|
47781
|
47781
47781-22200 Cover, Disc Brake Dust, Front Rh[04.2009 - 07.2015] GSE22..GCC |
47781-22200 |
from US $24.20 |
||
|
47781
|
47781
47781-30220 Cover, Disc Brake Dust, Front Rh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47781-30220 |
from US $23.77 |
||
|
47782
|
47782
47782-22200 Cover, Disc Brake Dust, Front Lh[04.2009 - 07.2015] GSE22..GCC |
47782-22200 |
from US $24.20 |
||
|
47782
|
47782
47782-30220 Cover, Disc Brake Dust, Front Lh[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47782-30220 |
from US $23.85 |
||
|
47795
|
47795
47795-30520 Plate, Front Disc Brake Caliper, No.1[04.2009 - 08.2010] GSE22..GCC CHINA SPEC; GSE22..GCC ARGENTINE SPEC |
47795-30520 |
US $4.30 |
||
