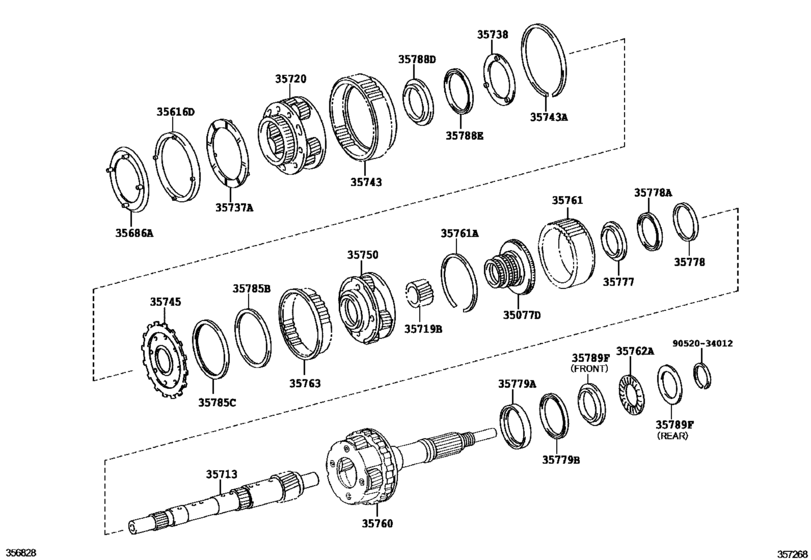

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E (0904- )GSE22) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS300
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35077D
|
35077D
35077-30030 Flange Sub-Assy, Rr Planetary Ring Gear[04.2009 -] GSE22 |
35077-30030 |
US $110.66 |
||
|
35616D
|
35616D
35616-60010 Washer, Clutch Drum Thrust[04.2009 -] GSE22 |
35616-60010 |
US $11.50 |
||
|
35686A
|
35686A
35686-60010 Washer, Clutch Drum Thrust, No.2[04.2009 -] GSE22 |
35686-60010 |
US $5.39 |
||
|
35713
|
35713
35713-30080 Shaft, Intermediate[04.2009 -] GSE22 |
35713-30080 |
US $133.95 |
||
|
35719B
|
35719B
35719-30090 Gear, Planetary Sun[04.2009 -] GSE22 |
35719-30090 |
US $26.50 |
||
|
35720
|
35720
35720-30140 Gear Assy, Front Planetary[04.2009 -] GSE22 |
35720-30140 |
US $396.03 |
||
|
35737A
|
35737A
35737-60030 Washer, Planetary Carrier Thrust, No.1[04.2009 -] GSE22 |
35737-60030 |
US $18.20 |
||
|
35738
|
35738
35738-60030 Washer, Planetary Carrier Thrust, No.2[04.2009 -] GSE22 |
35738-60030 |
US $10.63 |
||
|
35743
|
35743
35743-50020 Gear, Front Planetary Ring[04.2009 -] GSE22 |
35743-50020 |
US $125.22 |
||
|
35743A
|
35743A
90520-99076 Ring, Shaft Snap (For Front Planetary Ring Gear)[04.2009 -] GSE22 |
90520-99076 |
US $1.60 |
||
|
35745
|
35745
35745-50040 Flange, Front Planetary Ring Gear[04.2009 -] GSE22 |
35745-50040 |
US $17.47 |
||
|
35750
|
35750
35750-30030 Gear Assy, Center Planetary[04.2009 -] GSE22 |
35750-30030 |
US $272.27 |
||
|
35760
|
35760
35760-30121 Gear Assy, Rear Planetary[04.2009 -] GSE22 |
35760-30121 |
US $684.32 |
||
|
35761
|
35761
35761-30040 Gear, Rear Planetary Ring[04.2009 -] GSE22 |
35761-30040 |
US $123.76 |
||
|
35761A
|
35761A
90520-99073 Ring, Snap (For Rear Planetary Ring Gear Flange)[04.2009 -] GSE22 |
90520-99073 |
US $1.49 |
||
|
35762A
|
35762A
90374-36001 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[04.2009 -] GSE22 |
90374-36001 |
US $18.93 |
||
|
35763
|
35763
35763-30020 Gear, Center Planetary Ring[04.2009 -] GSE22 |
35763-30020 |
US $100.46 |
||
|
35777
|
35777
35777-60010 Race, Thrust Bearing, No.7[04.2009 -] GSE22 |
35777-60010 |
from US $6.99 |
||
|
35778
|
35778
35778-60010 Race, Thrust Bearing, No.8[04.2009 -] GSE22 |
35778-60010 |
US $13.69 |
||
|
35778A
|
35778A
90374-32010 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-32010 |
from US $14.20 |
||
|
35779A
|
35779A
35779-60011 Race, Thrust Bearing, No.9[04.2009 -] GSE22 |
35779-60011 |
from US $9.03 |
||
|
35779B
|
35779B
90374-43007 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-43007 |
from US $13.94 |
||
|
35785B
|
35785B
35785-60010 Race, Thrust Bearing, No.4[04.2009 -] GSE22 |
35785-60010 |
from US $17.47 |
||
|
35785C
|
35785C
90374-55004 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-55004 |
from US $13.81 |
||
|
35788D
|
35788D
35788-60010 Race, Thrust Bearing, No.3[04.2009 -] GSE22 |
35788-60010 |
US $13.83 |
||
|
35788E
|
35788E
90374-44005 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-44005 |
from US $15 |
||
|
35789F
|
35789F
35789-35060 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=3.8 |
35789-35060 |
US $6.99 |
||
|
35789F
|
35789F
35789-35070 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=3.9 |
35789-35070 |
US $6.99 |
||
|
35789F
|
35789F
35789-35080 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.0 |
35789-35080 |
US $6.99 |
||
|
35789F
|
35789F
35789-35090 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.1 |
35789-35090 |
US $6.99 |
||
|
35789F
|
35789F
35789-35100 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.2 |
35789-35100 |
US $6.99 |
||
|
35789F
|
35789F
35789-35110
Race, Thrust Bearing (For Rear Planetary Flange)
[04.2009 -] GSE22 FRONT |
35789-35110 |
— | ||
|
35789F
|
35789F
35789-50070 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=3.85 |
35789-50070 |
US $17.33 |
||
|
35789F
|
35789F
35789-50080 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=3.95 |
35789-50080 |
US $17.62 |
||
|
35789F
|
35789F
35789-50090 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.05 |
35789-50090 |
US $18.20 |
||
|
35789F
|
35789F
35789-50100 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.15 |
35789-50100 |
US $18.49 |
||
|
35789F
|
35789F
35789-50110 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.25 |
35789-50110 |
US $18.93 |
||
|
35789F
|
35789F
35789-50120 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.30 |
35789-50120 |
US $19.36 |
||
|
35789F
|
35789F
35789-50130 Race, Thrust Bearing (For Rear Planetary Flange)[04.2009 -] GSE22 REAR,T=4.35 |
35789-50130 |
US $19.51 |
||
|
9052034012
|
9052034012
90520-34012 Ring, Shaft Snap (For Gear Thrust Washer) |
90520-34012 |
US $0.79 |
