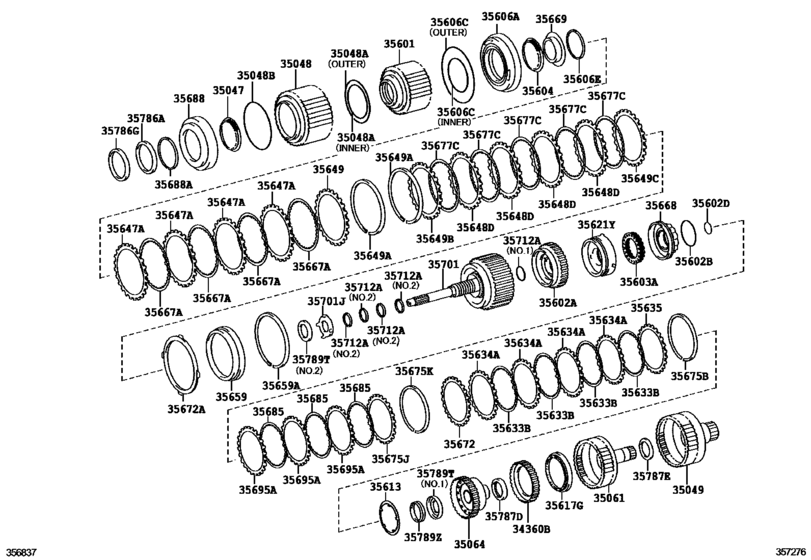

Brake Band & Multiple Disc Clutch (Atm) ([04.2009 - ] A760E (0904- )GSE22) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34360B
|
34360B
34360-50010 Clutch Assy, Underdrive 1 Way[04.2009 -] GSE22 |
34360-50010 |
US $263.54 |
||
|
35047
|
35047
35047-60010 Spring Sub-Assy, Reverse Clutch Return[04.2009 -] GSE22 |
35047-60010 |
from US $22.29 |
||
|
35048
|
35048
35048-60010 Piston Sub-Assy, Reverse Clutch[04.2009 -] GSE22 |
35048-60010 |
US $94.64 |
||
|
35048A
|
35048A
90301-99141 Ring, O (For Reverse Clutch Piston)[04.2009 -] GSE22 OUTER |
90301-99141 |
US $2.62 |
||
|
35048A
|
35048A
90301-99147 Ring, O (For Reverse Clutch Piston)[04.2009 -] GSE22 INNER |
90301-99147 |
US $2.80 |
||
|
35048B
|
35048B
90301-99140 Ring, O (For Reverse Clutch Piston)[04.2009 -] GSE22 |
90301-99140 |
US $2.62 |
||
|
35049
|
35049
35049-30020 Hub Sub-Assy, Reverse Clutch[04.2009 -] GSE22 |
35049-30020 |
from US $129.58 |
||
|
35061
|
35061
35061-50010 Hub Sub-Assy, Forward Clutch[04.2009 -] GSE22 |
35061-50010 |
US $113.16 |
||
|
35064
|
35064
35064-50010 Hub Sub-Assy, Coast Clutch[04.2009 -] GSE22 |
35064-50010 |
from US $70.03 |
||
|
35601
|
35601
35601-50030 Drum Sub-Assy, Clutch[04.2009 -] GSE22 |
35601-50030 |
US $260.62 |
||
|
35602A
|
35602A
35602-34020 Piston Sub-Assy, Forward ClutchFORWARD CLUTCH [07.2009 -] GSE22 |
35602-34020 |
US $85.28 |
||
|
35602A
|
35602A
35602-50020 Piston Sub-Assy, Forward Clutch[04.2009 - 07.2009] GSE22 |
35602-50020 |
from US $67.68 |
||
|
35602B
|
35602B
90301-98004 Ring, O (For Forward Clutch Piston)[04.2009 -] GSE22 |
90301-98004 |
US $2.75 |
||
|
35602D
|
35602D
90520-35003 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[04.2009 -] GSE22 |
90520-35003 |
from US $0.76 |
||
|
35603A
|
35603A
35603-50030 Spring Sub-Assy, Forward Clutch Return[04.2009 -] GSE22 |
35603-50030 |
US $24.61 |
||
|
35604
|
35604
35604-60020 Spring Sub-Assy, Direct Clutch Return[04.2009 -] GSE22 |
35604-60020 |
from US $11.94 |
||
|
35606A
|
35606A
35652-30061 Piston Sub-Assy, Direct Clutch[04.2009 -] GSE22 |
35652-30061 |
US $19.22 |
||
|
35606C
|
35606C
90301-74002 Ring, O (For Overdrive Direct Cluch)[04.2009 - 03.2014] GSE22 INNER |
90301-74002 |
US $1.49 |
||
|
35606C
|
35606C
90301-74004 Ring, O (For Direct Clutch Piston)[04.2014 -] GSE22 INNER |
90301-74004 |
from US $1.49 |
||
|
35606C
|
35606C
90301-99149 Ring, O (For Direct Clutch Piston)[04.2009 -] GSE22 OUTER |
90301-99149 |
US $2.80 |
||
|
35606E
|
35606E
90520-64003 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)[04.2009 -] GSE2# |
90520-64003 |
US $1.16 |
||
|
35613
|
35613
35613-50010
Ring, Clutch Piston Oil Seal, Outer
[04.2009 - 05.2010] GSE22 |
35613-50010 |
— | ||
| replacement | |||||
|
35613
|
35613
35613-50011 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [04.2009 - 05.2010] GSE22 |
35613-50011 |
US $11.53 |
||
|
35613
|
35613
35613-50011 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [05.2010 -] GSE22 |
35613-50011 |
US $11.53 |
||
|
35617G
|
35617G
35614-50010 Ring, Clutch Drum Oil Seal[04.2009 -] GSE22 |
35614-50010 |
US $4.12 |
||
|
35621Y
|
35621Y
35621-50010 Piston, Coast Clutch[04.2009 -] GSE22 |
35621-50010 |
from US $50.68 |
||
|
35633B
|
35633B
35633-50010 Disc, Clutch (For Forward Multiple Disc Clutch)[04.2009 -] GSE22 |
35633-50010 |
US $28.22 |
||
|
35634A
|
35634A
35634-50010 Plate, Clutch (For Forward Multiple Disc Clutch)[04.2009 -] GSE22 T=2.4 |
35634-50010 |
from US $14.12 |
||
|
35635
|
35635
35635-60010 Flange, Forward Clutch[04.2009 -] GSE22 T=3.0,MARK 0 |
35635-60010 |
from US $33.11 |
||
|
35635
|
35635
35635-60020 Flange, Forward Clutch[04.2009 -] GSE22 T=3.1,MARK 1 |
35635-60020 |
US $33.11 |
||
|
35635
|
35635
35635-60030 Flange, Forward Clutch[04.2009 -] GSE22 T=3.2,MARK 2 |
35635-60030 |
from US $35.24 |
||
|
35635
|
35635
35635-60040 Flange, Forward Clutch[04.2009 -] GSE22 T=3.3,MARK 3 |
35635-60040 |
from US $35.24 |
||
|
35635
|
35635
35635-60050 Flange, Forward Clutch[04.2009 -] GSE22 T=3.4,MARK 4 |
35635-60050 |
US $44.02 |
||
|
35635
|
35635
35635-60060 Flange, Forward Clutch[04.2009 -] GSE22 T=3.5,MARK 5 |
35635-60060 |
from US $44.02 |
||
|
35635
|
35635
35635-60070 Flange, Forward Clutch[04.2009 -] GSE22 T=3.6,MARK 6 |
35635-60070 |
from US $35.24 |
||
|
35635
|
35635
35635-60080 Flange, Forward Clutch[04.2009 -] GSE22 T=3.7,MARK 7 |
35635-60080 |
US $35.24 |
||
|
35635
|
35635
35635-60090 Flange, Forward Clutch[04.2009 -] GSE22 T=3.8,MARK 8 |
35635-60090 |
US $35.24 |
||
|
35635
|
35635
35635-60100 Flange, Forward Clutch[04.2009 -] GSE22 T=3.9,MARK 9 |
35635-60100 |
US $35.24 |
||
|
35635
|
35635
35635-60110 Flange, Forward Clutch[04.2009 -] GSE22 T=4.0,MARK A |
35635-60110 |
US $35.24 |
||
|
35647A
|
35647A
35647-60010 Plate, Clutch (For Direct Multiple Disc Clutch)[04.2009 -] GSE22 |
35647-60010 |
from US $13.80 |
||
|
35648D
|
35648D
35648-50010 Plate, Clutch, No.3[04.2009 -] GSE22 |
35648-50010 |
US $16.31 |
||
|
35649
|
35649
35649-60030 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.0,MARK 2 |
35649-60030 |
from US $11.80 |
||
|
35649
|
35649
35649-60040 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.1.MARK 3 |
35649-60040 |
US $12.33 |
||
|
35649
|
35649
35649-60050 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.2,MARK 4 |
35649-60050 |
US $13.10 |
||
|
35649
|
35649
35649-60060 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.3,MARK 5 |
35649-60060 |
US $13.10 |
||
|
35649
|
35649
35649-60070 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.4,MARK 6 |
35649-60070 |
US $13.10 |
||
|
35649
|
35649
35649-60080 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.5,MARK 7 |
35649-60080 |
US $13.10 |
||
|
35649
|
35649
35649-60090 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.6,MARK 8 |
35649-60090 |
US $17.56 |
||
|
35649
|
35649
35649-60100 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.7,MARK 9 |
35649-60100 |
US $12.38 |
||
|
35649
|
35649
35649-60110 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.8,MARK A |
35649-60110 |
US $13.10 |
||
|
35649A
|
35649A
90520-99074 Ring, Hole Snap(For Reverse Clutch Flange)[04.2009 -] GSE22 |
90520-99074 |
from US $3.04 |
||
|
35649B
|
35649B
35649-60030 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.0,MARK 2 |
35649-60030 |
from US $11.80 |
||
|
35649C
|
35649C
35649-60010 Flange, Reverse Clutch[04.2009 -] GSE22 T=2.8,MARK 0 |
35649-60010 |
US $13.10 |
||
|
35649C
|
35649C
35649-60020 Flange, Reverse Clutch[04.2009 -] GSE22 T=2.9,MARK 1 |
35649-60020 |
US $12.33 |
||
|
35649C
|
35649C
35649-60030 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.0,MARK 2 |
35649-60030 |
from US $11.80 |
||
|
35649C
|
35649C
35649-60040 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.1.MARK 3 |
35649-60040 |
US $12.33 |
||
|
35649C
|
35649C
35649-60050 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.2,MARK 4 |
35649-60050 |
US $13.10 |
||
|
35649C
|
35649C
35649-60060 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.3,MARK 5 |
35649-60060 |
US $13.10 |
||
|
35649C
|
35649C
35649-60070 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.4,MARK 6 |
35649-60070 |
US $13.10 |
||
|
35649C
|
35649C
35649-60080 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.5,MARK 7 |
35649-60080 |
US $13.10 |
||
|
35649C
|
35649C
35649-60090 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.6,MARK 8 |
35649-60090 |
US $17.56 |
||
|
35649C
|
35649C
35649-60100 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.7,MARK 9 |
35649-60100 |
US $12.38 |
||
|
35649C
|
35649C
35649-60110 Flange, Reverse Clutch[04.2009 -] GSE22 T=3.8,MARK A |
35649-60110 |
US $13.10 |
||
|
35659
|
35659
35659-60020 Sleeve, Reverse Clutch Reaction[04.2009 -] GSE22 |
35659-60020 |
US $19.93 |
||
|
35659A
|
35659A
90520-99083 Ring, Snap (For Reverse Clutch Reaction Sleeve)[04.2009 -] GSE22 |
90520-99083 |
US $3.04 |
||
|
35667A
|
35667A
35667-60020 Disk, Direct Clutch[04.2009 -] GSE22 |
35667-60020 |
from US $19.82 |
||
|
35668
|
35668
35668-50010 Balancer, Clutch, No.1[04.2009 -] GSE22 |
35668-50010 |
from US $29.70 |
||
|
35669
|
35669
35669-60010 Balancer, Clutch, No.2[04.2009 -] GSE22 |
35669-60010 |
from US $27.72 |
||
|
35672
|
35672
35672-50040 Plate, Clutch Cushion[04.2009 -] GSE22 |
35672-50040 |
US $13.25 |
||
|
35672A
|
35672A
35672-60020 Plate, Clutch Cushion (For Direct Multiple Disc Clutch)[04.2009 -] GSE22 |
35672-60020 |
US $8.78 |
||
|
35675B
|
35675B
90520-99082 Ring, Hole Snap (For Forward Clutch Flange)[04.2009 -] GSE22 |
90520-99082 |
US $3.04 |
||
|
35675J
|
35675J
35675-50010 Flange, Coast Clutch[04.2009 -] GSE22 T=3.0 |
35675-50010 |
US $26.79 |
||
|
35675J
|
35675J
35675-50020 Flange, Coast Clutch[04.2009 -] GSE22 T=3.1 |
35675-50020 |
US $34.94 |
||
|
35675J
|
35675J
35675-50030 Flange, Coast Clutch[04.2009 -] GSE22 T=3.2 |
35675-50030 |
US $34.94 |
||
|
35675J
|
35675J
35675-50040 Flange, Coast Clutch[04.2009 -] GSE22 T=3.3 |
35675-50040 |
US $29.41 |
||
|
35675J
|
35675J
35675-50050 Flange, Coast Clutch[04.2009 -] GSE22 T=3.4 |
35675-50050 |
US $34.94 |
||
|
35675J
|
35675J
35675-50060 Flange, Coast Clutch[04.2009 -] GSE22 T=3.5 |
35675-50060 |
US $34.94 |
||
|
35675J
|
35675J
35675-50070 Flange, Coast Clutch[04.2009 -] GSE22 T=3.6 |
35675-50070 |
US $34.94 |
||
|
35675J
|
35675J
35675-50080 Flange, Coast Clutch[04.2009 -] GSE22 T=3.7 |
35675-50080 |
US $34.94 |
||
|
35675J
|
35675J
35675-50090 Flange, Coast Clutch[04.2009 -] GSE22 T=3.8 |
35675-50090 |
US $34.07 |
||
|
35675J
|
35675J
35675-50100 Flange, Coast Clutch[04.2009 -] GSE22 T=3.9 |
35675-50100 |
US $34.94 |
||
|
35675K
|
35675K
90520-99089 Ring, Snap (For Coast Clutch Flange)[04.2009 -] GSE22 |
90520-99089 |
US $3.40 |
||
|
35677C
|
35677C
35677-50050 Disc, Rear Clutch[04.2009 -] GSE22 |
35677-50050 |
US $27.96 |
||
|
35685
|
35685
35685-50010 Disc, Coast Clutch[04.2009 -] GSE22 |
35685-50010 |
US $27.43 |
||
|
35688
|
35688
35688-50010 Balancer, Clutch, No.3[04.2009 -] GSE22 |
35688-50010 |
US $38.73 |
||
|
35688A
|
35688A
90520-79001 Ring, Snap (For Reverse Clutch Return Spring)[04.2009 -] GSE2# |
90520-79001 |
US $0.70 |
||
|
35695A
|
35695A
35695-50010 Plate, Coast Clutch[04.2009 -] GSE22 |
35695-50010 |
US $25.48 |
||
|
35701
|
35701
35701-30130 Shaft Sub-Assy, Input[04.2009 - 07.2009] GSE22 |
35701-30130 |
US $393.12 |
||
|
35701
|
35701
35701-30131 Shaft Sub-Assy, InputINPUT [07.2009 -] GSE22 |
35701-30131 |
US $297.02 |
||
|
35701J
|
35701J
90374-34011 Bearing, Thrust Needle Roller (For Input Shaft Front)[04.2009 -] GSE22 |
90374-34011 |
US $14.87 |
||
|
35712A
|
35712A
35712-60010 Ring, Input Shaft Oil Seal[04.2009 -] GSE22 NO.2 |
35712-60010 |
US $8.60 |
||
|
35712A
|
35712A
90301-33017 Ring, O (For Forward Clutch Piston)O(FOR FORWARD CLUTCH PISTON INNER) [04.2009 -] GSE22 NO.1 |
90301-33017 |
from US $1.79 |
||
|
35786A
|
35786A
35786-60010 Race, Thrust Bearing, No.1[04.2009 -] GSE2# |
35786-60010 |
US $14.56 |
||
|
35786G
|
35786G
90374-71001 Bearing, Thrust Needle Roller (For Front Planetary Gear)[04.2009 -] GSE2# |
90374-71001 |
from US $13.98 |
||
|
35787D
|
35787D
90374-35006 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-35006 |
US $10.63 |
||
|
35787E
|
35787E
90374-42008 Bearing, Thrust Needle Roller[04.2009 -] GSE2# |
90374-42008 |
from US $10.48 |
||
|
35789T
|
35789T
35789-50050 Race, Thrust Bearing (Input Shaft Rear)[04.2009 -] GSE22 NO.1 |
35789-50050 |
from US $7.69 |
||
|
35789T
|
35789T
35789-50060 Race, Thrust Bearing (For Input Shaft Front)[04.2009 -] GSE22 NO.2 |
35789-50060 |
US $15.03 |
||
|
35789Z
|
35789Z
90374-21004 Bearing, Thrust Needle Roller[04.2009 -] GSE22 |
90374-21004 |
from US $12.23 |
||
