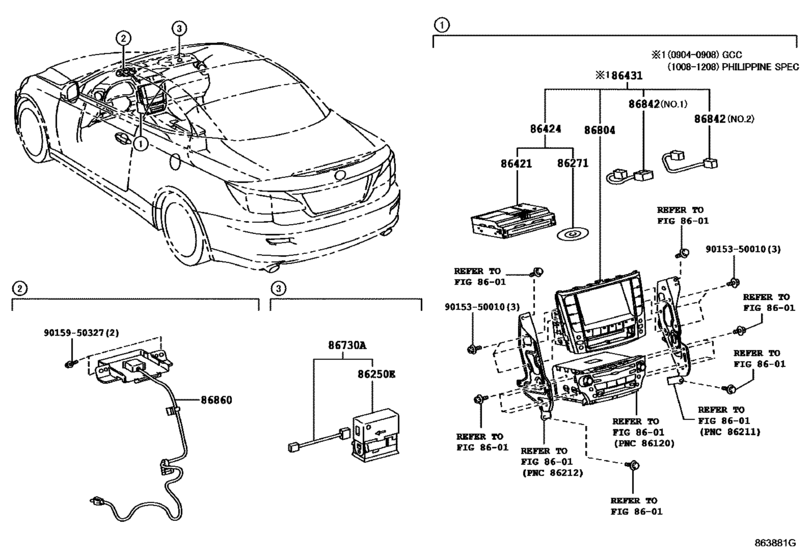

Navigation & Front Monitor Display ([04.2009 - 08.2012] DVD NAVIGATION (0904-1208)GSE22) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[08.2010 - 08.2011] GSE22..GEN EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
86250-52020 |
US $59.75 |
||
|
86271
|
86271
86271-48220
Disc, Disc Player
[08.2010 - 07.2011] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48220 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[08.2010 - 07.2011] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48226 |
— | ||
|
86271
|
86271
86271-48221
Disc, Disc Player
[08.2011 - 07.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48221 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[08.2011 - 07.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48226 |
— | ||
|
86271
|
86271
86271-48222
Disc, Disc Player
[07.2012 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48222 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48226
Disc, Disc Player
[07.2012 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86271-48226 |
— | ||
|
86271
|
86271
86807-30151
Disc, Disc Player
[09.2013 - 08.2014] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30151 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-30153
Disc, Disc Player
[09.2013 - 08.2014] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-30153 |
— | ||
|
86421
|
86421
86421-48010 Board, Navigation ModuleNAVIGATION MODULE [08.2010 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86421-48010 |
US $1,047.99 |
||
|
86424
|
86424
86424-53010
Deck, Dvd
[08.2010 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86424-53010 |
— | ||
|
86730A
|
86730A
86730-53030 Microphone Assy, TelephoneTELEPHONE [08.2010 - 08.2011] GSE22..GEN EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
86730-53030 |
US $85.90 |
||
|
86804
|
86804
86804-53660
Cover Sub-Assy, Navigation Computer
[08.2010 - 08.2011] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86804-53660 |
— | ||
|
86804
|
86804
86804-53B50
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86804-53B50 |
— | ||
| replacement | |||||
|
86804
|
86804
86804-53B51
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86804-53B51 |
— | ||
|
86804
|
86804
86804-53B51
Cover Sub-Assy, Navigation Computer
[10.2011 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86804-53B51 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE22..GEN INDONESIA SPEC&AU |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE22..GEN INDONESIA SPEC&AU |
86842-53090 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53040
Antenna Assy, Navigation
[08.2010 - 08.2012] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM CD-CH |
86860-53040 |
— | ||
|
86860
|
86860
86860-53090
Antenna Assy, Navigation
[08.2012 - 08.2014] GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN BLUNEI SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE22..GEN INDONESIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86860-53090 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
