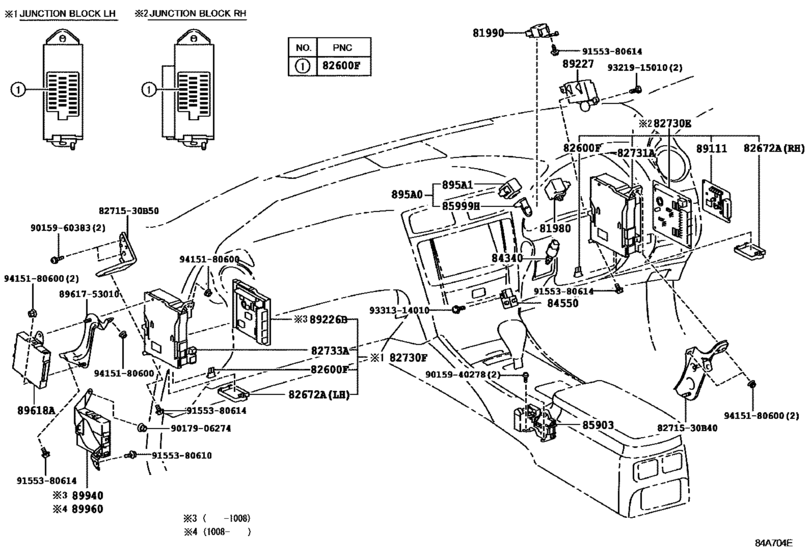

Switch & Relay & Computer ([04.2009 - ] COWL (0904- )GEN) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-53010 Relay Assy, Stop Lamp Control[04.2009 - 08.2010] GSE22 |
895A0-53010 |
US $66.25 |
||
|
895A0
|
895A0
895A0-53020 Relay Assy, Stop Lamp Control[08.2010 -] GSE2# |
895A0-53020 |
US $55.18 |
||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [08.2010 -] GSE2# |
895A1-12010 |
US $50.67 |
||
|
895A1
|
895A1
895A1-53010 Relay, Stop Lamp Control[04.2009 - 08.2010] GSE22 |
895A1-53010 |
US $60.86 |
||
| replacement | |||||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [04.2009 - 08.2010] GSE22 |
895A1-12010 |
US $50.67 |
||
|
81980
|
81980
81980-53040 Flasher Assy, Turn SignalTURN SIGNAL [04.2009 -] GSE2# |
81980-53040 |
US $70.18 |
||
|
81990
|
81990
81991-53010 Relay Assy, Turn SignalTURN SIGNAL [04.2009 -] GSE2# |
81991-53010 |
US $62.46 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 07.2015] GSE2# 7.5A,MINI FUSE |
90982-09020 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 07.2015] GSE2# 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82672A
|
82672A
82672-53120
Cover, Junction Block
[04.2009 - 08.2012] GSE22 LH |
82672-53120 |
— | ||
|
82672A
|
82672A
82672-53121
Cover, Junction Block
[08.2012 -] GSE22 LH |
82672-53121 |
— | ||
|
82672A
|
82672A
82672-53150
Cover, Junction Block
[04.2009 - 08.2012] GSE22 RH |
82672-53150 |
— | ||
|
82672A
|
82672A
82672-53151
Cover, Junction Block
[08.2012 -] GSE22 RH |
82672-53151 |
— | ||
|
82730E
|
82730E
82730-53A40
Block Assy, Junction, Rh
[04.2009 - 08.2010] GSE22..GEN |
82730-53A40 |
— | ||
|
82730E
|
82730E
82730-53A41
Block Assy, Junction, Rh
[08.2010 - 08.2011] GSE22..GEN |
82730-53A41 |
— | ||
|
82730E
|
82730E
82730-53A42
Block Assy, Junction, Rh
[08.2011 - 08.2012] GSE22..GEN |
82730-53A42 |
— | ||
|
82730E
|
82730E
82730-53A43
Block Assy, Junction, Rh
[08.2012 - 08.2014] GSE22..GEN |
82730-53A43 |
— | ||
|
82730E
|
82730E
82730-53A50
Block Assy, Junction, Rh
[04.2009 - 08.2010] GSE22..GEN BLUNEI SPEC |
82730-53A50 |
— | ||
|
82730E
|
82730E
82730-53A51
Block Assy, Junction, Rh
[08.2010 - 08.2011] GSE22..GEN BLUNEI SPEC |
82730-53A51 |
— | ||
|
82730E
|
82730E
82730-53A52
Block Assy, Junction, Rh
[08.2011 - 08.2012] GSE22..GEN BLUNEI SPEC |
82730-53A52 |
— | ||
|
82730E
|
82730E
82730-53A53
Block Assy, Junction, Rh
[08.2012 - 08.2014] GSE22..GEN BLUNEI SPEC |
82730-53A53 |
— | ||
|
82730E
|
82730E
82730-53A60
Block Assy, Junction, Rh
[04.2009 - 08.2010] GSE22..GEN INDONESIA SPEC |
82730-53A60 |
— | ||
|
82730E
|
82730E
82730-53A61
Block Assy, Junction, Rh
[08.2010 - 08.2011] GSE22..GEN INDONESIA SPEC |
82730-53A61 |
— | ||
|
82730E
|
82730E
82730-53A62
Block Assy, Junction, Rh
[08.2011 - 08.2012] GSE22..GEN INDONESIA SPEC |
82730-53A62 |
— | ||
|
82730E
|
82730E
82730-53A63
Block Assy, Junction, Rh
[08.2012 - 08.2014] GSE22..GEN INDONESIA SPEC |
82730-53A63 |
— | ||
|
82730F
|
82730F
82730-53580
Block Assy, Junction, Lh
[04.2009 - 08.2010] GSE22 |
82730-53580 |
— | ||
|
82730F
|
82730F
82730-53582
Block Assy, Junction, Lh
[08.2010 - 08.2012] GSE22 |
82730-53582 |
— | ||
|
82730F
|
82730F
82730-53583
Block Assy, Junction, Lh
[08.2012 -] GSE22 |
82730-53583 |
— | ||
|
82731A
|
82731A
82731-53030 Block, Cowl Side Junction, Rh[04.2009 -] GSE2# |
82731-53030 |
US $96.10 |
||
|
82733A
|
82733A
82733-53040 Block, Cowl Side Junction, Lh[04.2009 -] GSE2# |
82733-53040 |
from US $119.92 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[04.2009 - 07.2015] GSE2# |
84340-30110 |
from US $20.34 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[04.2009 - 07.2015] GSE2# |
84550-16060 |
from US $19.32 |
||
|
85903
|
85903
85903-30070 Computer Sub-Assy, Shift Lock Control[04.2009 - 08.2014] GSE22..GEN |
85903-30070 |
US $116.48 |
||
|
85999H
|
85999H
895A9-53010 Bracket, Relay[04.2009 - 08.2010] GSE22 |
895A9-53010 |
US $5.53 |
||
|
85999H
|
85999H
895A9-53020 Bracket, Relay[08.2010 -] GSE2# |
895A9-53020 |
US $5.39 |
||
|
89111
|
89111
89100-53040 Computer, Network GatewayNETWORK GATEWAY [04.2009 -] GSE2# |
89100-53040 |
US $378.56 |
||
|
89226B
|
89226B
89226-53010 Computer, Multiplex Network Body, No.2[04.2009 - 07.2010] GSE22 |
89226-53010 |
from US $591.14 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[04.2009 - 07.2015] GSE2# |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-53100 Computer, Power Source Control[04.2009 - 08.2012] GSE22..GEN |
89670-53100 |
US $479.02 |
||
|
89618A
|
89618A
89670-53101 Computer, Power Source Control[08.2012 - 08.2014] GSE22..GEN |
89670-53101 |
US $398.94 |
||
|
89940
|
89940
89940-53120 Computer Assy, Headlamp SwivelHEADLAMP SWIVEL [04.2009 - 08.2010] GSE22..GEN |
89940-53120 |
US $637.73 |
||
|
89960
|
89960
89960-53100 Computer Assy, Headlamp Leveling[08.2010 -] GSE2# |
89960-53100 |
US $298.48 |
||
|
8271530B40
|
8271530B40
82715-30B40 Bracket,wiring Harness Clamp |
82715-30B40 |
US $21.55 |
||
|
8271530B50
|
8271530B50
82715-30B50 Bracket,wiring Harness Clamp |
82715-30B50 |
US $8.30 |
||
|
8961753010
|
8961753010
89617-53010 New Genuine Part |
89617-53010 |
US $13.98 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
