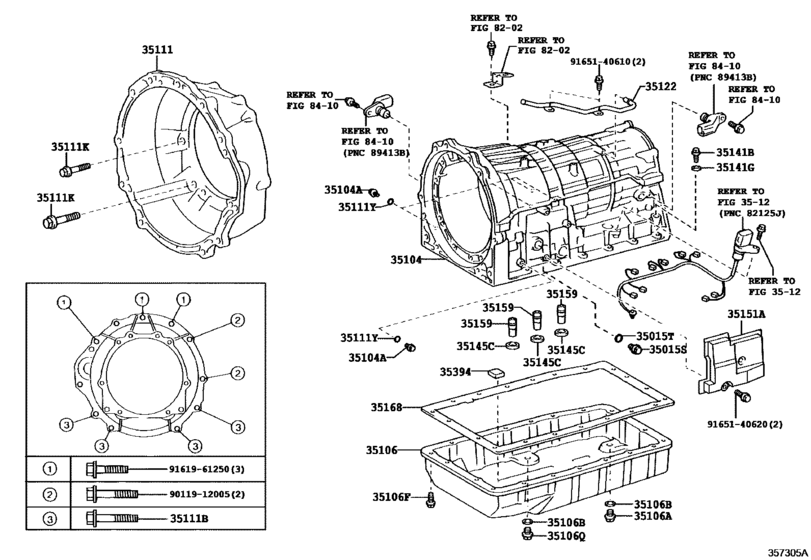

Transmission Case & Oil Pan (Atm) ([04.2009 - ] A760E (0904- )GSE22) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- GSE22
- grade
- 300C
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS300C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015S
|
35015S
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[04.2009 -] GSE2# |
90341-18059 |
from US $3.40 |
||
|
35015T
|
35015T
90301-15004 Ring, O(For Oil Cooler Tube Union)[04.2009 -] GSE2# |
90301-15004 |
from US $1.56 |
||
|
35104
|
35104
35104-50020 Case Sub-Assy, Automatic Transmission[04.2009 -] GSE22 |
35104-50020 |
from US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[04.2009 -] GSE2# |
90341-08001 |
from US $1.52 |
||
|
35106
|
35106
35106-50040 Pan Sub-Assy, Automatic Transmission Oil[04.2009 -] GSE22 |
35106-50040 |
from US $80.57 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[04.2009 -] GSE2# |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[04.2009 -] GSE2# |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[04.2009 - 07.2015] GSE2# |
90119-06173 |
from US $0.76 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[04.2009 -] GSE2# |
90341-10021 |
from US $2.07 |
||
|
35111
|
35111
35111-30190 Housing, Automatic Transmission[04.2009 -] GSE22 |
35111-30190 |
from US $250.43 |
||
|
35111B
|
35111B
90119-10260 Bolt (For Transmission Housing & Engine Setting)[04.2009 - 07.2015] GSE2# *10-1.25PX43-30 |
90119-10260 |
from US $2.11 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[04.2009 - 07.2015] GSE2# *10-1.5PX35-30 |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[04.2009 - 07.2015] GSE2# *10-1.50PX35-29.3 |
90119-10947 |
from US $0.96 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[04.2009 - 07.2015] GSE2# *12-1.75PX38-30 |
90119-12378 |
from US $1.52 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[04.2009 -] GSE2# |
90301-06196 |
from US $2.24 |
||
|
35122
|
35122
90930-03171 Tube, Breather (For Automatic Transaxle)[04.2009 -] GSE22 |
90930-03171 |
US $3.20 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[04.2009 -] GSE2# |
90341-14011 |
from US $3.22 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[04.2009 -] GSE2# |
90301-11030 |
from US $2.15 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[04.2009 -] GSE2# |
35145-60020 |
from US $6.45 |
||
|
35151A
|
35151A
35151-30040 Cover, Transaxle Case, Upper[04.2009 -] GSE22 |
35151-30040 |
US $34.61 |
||
|
35159
|
35159
35159-60010 Gasket, Brake Drum[04.2009 -] GSE2# |
35159-60010 |
from US $5.59 |
||
|
35168
|
35168
35168-60010 Gasket, Automatic Transmission Oil Pan[04.2009 -] GSE22 |
35168-60010 |
from US $13.98 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[04.2009 -] GSE2# |
35394-30011 |
from US $5.62 |
||
|
9011912005
|
9011912005
90119-12005 Bolt(For Transaxle Case & Engine Setting) |
90119-12005 |
US $2.80 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
