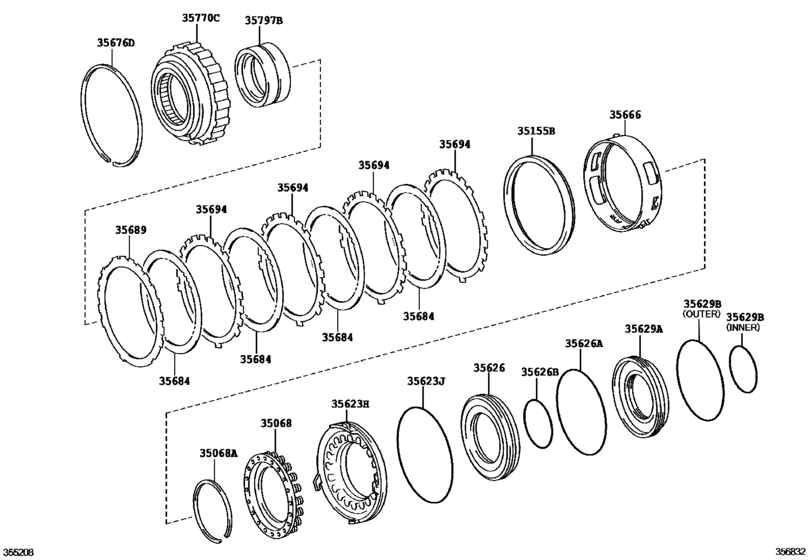

Brake No.3, 1St & Reverse Brake (Atm) ([08.2005 - ] A760E,A760H (0508- )GSE21,25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-60010 Spring Sub-Assy, 1St & Reverse Brake Return[08.2005 - 08.2008] GSE21,25 |
35068-60010 |
from US $24.90 |
||
|
35068A
|
35068A
90520-61001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[08.2005 - 08.2008] GSE21,25 |
90520-61001 |
from US $0.96 |
||
|
35155B
|
35155B
35155-50010
Sleeve, Rear Cover
[08.2005 - 08.2008] GSE21,25 |
35155-50010 |
— | ||
|
35623H
|
35623H
35623-50030
Piston, 1St & Reverse Brake
[08.2005 - 08.2008] GSE21,25 |
35623-50030 |
— | ||
|
35623J
|
35623J
90301-99087 Ring, O (For Overdrive Brake Piston)[08.2005 - 08.2008] GSE21,25 |
90301-99087 |
from US $2.62 |
||
|
35626
|
35626
35626-50010
Sleeve, Brake Reaction
[08.2005 - 08.2008] GSE21,25 |
35626-50010 |
— | ||
|
35626A
|
35626A
90301-99144 Ring (For Brake Reaction Sleeve Outer)[08.2005 - 08.2008] GSE21,25 |
90301-99144 |
US $2.62 |
||
|
35626B
|
35626B
90301-79003 Ring (For Brake Reaction Sleeve Inner)[08.2005 - 08.2008] GSE21,25 |
90301-79003 |
US $1.31 |
||
|
35629A
|
35629A
35629-50020 Piston, Brake, No.4[08.2005 - 08.2008] GSE21,25 |
35629-50020 |
US $37.58 |
||
|
35629B
|
35629B
90301-67006 Ring, O (For Brake Piston No.2)[08.2005 - 08.2008] GSE21,25 内側 |
90301-67006 |
US $1.31 |
||
|
35629B
|
35629B
90301-99084 Ring, O (For Underdrive Brake Piston)[08.2005 - 08.2008] GSE21,25 外側 |
90301-99084 |
from US $2.62 |
||
|
35666
|
35666
35666-50010
Tube, Brake Apply
[08.2005 - 08.2008] GSE21,25 |
35666-50010 |
— | ||
|
35676D
|
35676D
90521-99131 Ring, Hole Snap (For 1St & Reverse Brake Flange)[08.2005 - 08.2008] GSE21,25 |
90521-99131 |
from US $4.08 |
||
|
35684
|
35684
35684-50010 Disc, Brake, No.4[08.2005 - 08.2008] GSE21,25 |
35684-50010 |
from US $9.63 |
||
|
35689
|
35689
35689-60100
Flange, Brake, No.4
[08.2005 - 08.2008] GSE21,25 厚さ＝１．８，マーク ０ |
35689-60100 |
— | ||
|
35689
|
35689
35689-60110 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝２．０，マーク ２ |
35689-60110 |
US $30.58 |
||
|
35689
|
35689
35689-60120 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝２．２，マーク ４ |
35689-60120 |
US $30.58 |
||
|
35689
|
35689
35689-60130 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝２．４，マーク ６ |
35689-60130 |
US $30.58 |
||
|
35689
|
35689
35689-60140 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝２．６，マーク ８ |
35689-60140 |
US $30.58 |
||
|
35689
|
35689
35689-60150 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝２．８，マーク １０ |
35689-60150 |
US $30.58 |
||
|
35689
|
35689
35689-60160 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝３．０，マーク １２ |
35689-60160 |
US $30.58 |
||
|
35689
|
35689
35689-60170 Flange, Brake, No.4[08.2005 - 08.2008] GSE21,25 厚さ＝３．２，マーク １４ |
35689-60170 |
US $30.58 |
||
|
35689
|
35689
35689-60270 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝１．８，マーク ０ |
35689-60270 |
from US $23.15 |
||
|
35689
|
35689
35689-60280 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝１．９７，マーク １ |
35689-60280 |
US $23.15 |
||
|
35689
|
35689
35689-60290 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．１１，マーク ３ |
35689-60290 |
US $23.15 |
||
|
35689
|
35689
35689-60300 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．２５，マーク ４ |
35689-60300 |
US $23.15 |
||
|
35689
|
35689
35689-60310 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．３９，マーク ５ |
35689-60310 |
from US $23.15 |
||
|
35689
|
35689
35689-60320 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．５３，マーク ７ |
35689-60320 |
from US $24.29 |
||
|
35689
|
35689
35689-60330 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．６７，マーク ８ |
35689-60330 |
from US $23.15 |
||
|
35689
|
35689
35689-60340 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．８１，マーク １０ |
35689-60340 |
from US $23.15 |
||
|
35689
|
35689
35689-60350 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝２．９５，マーク １１ |
35689-60350 |
from US $23.15 |
||
|
35689
|
35689
35689-60360 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝３．０９，マーク １２ |
35689-60360 |
US $23.15 |
||
|
35689
|
35689
35689-60370 Flange, Brake, No.4[03.2011 -] GSE21,25 厚さ＝３．２３，マーク １４ |
35689-60370 |
US $23.15 |
||
|
35694
|
35694
35694-60011 Plate, Brake, No.4[08.2005 - 08.2008] GSE21,25 |
35694-60011 |
from US $6.64 |
||
|
35770C
|
35770C
35770-50010 Clutch Assy, 1Way No.3[08.2005 - 08.2008] GSE21,25 |
35770-50010 |
US $479.02 |
||
| replacement | |||||
|
35770C
|
35770C
35770-60030 Clutch Assy, 1Way No.3[08.2005 - 08.2008] GSE21,25 |
35770-60030 |
from US $442.62 |
||
|
35797B
|
35797B
35797-50031 Race, 1 Way Clutch, Inner[08.2005 - 08.2008] GSE21,25 |
35797-50031 |
US $86.31 |
||
