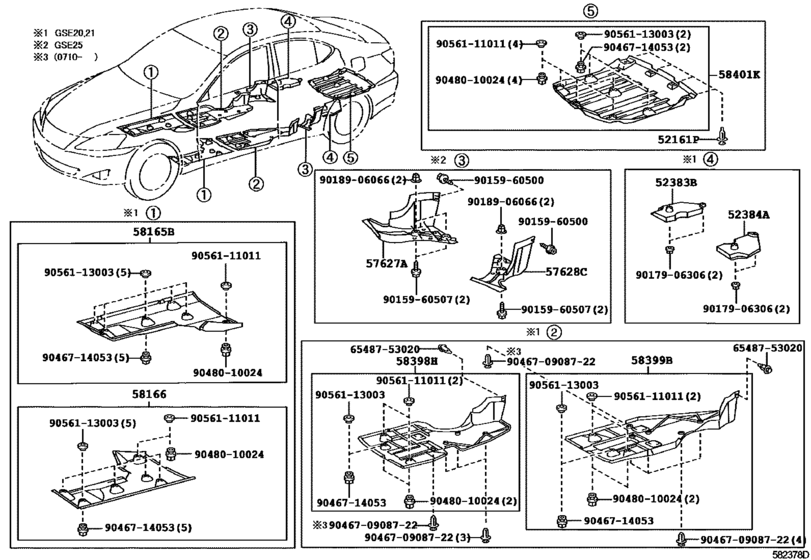

Floor Pan & Lower Back Panel ([08.2005 - ] ﾌﾛｱ ｱﾝﾀﾞ ｶﾊﾞｰ (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-16010 Clip[08.2005 - 08.2008] GSE2# |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161P
|
52161P
52161-0K040 Clip[08.2005 - 08.2008] GSE2# |
52161-0K040 |
from US $1.46 |
||
|
52161P
|
52161P
52161-02020 Clip[08.2005 - 08.2008] GSE2# |
52161-02020 |
US $5.27 |
||
|
57627A
|
57627A
57627-30040 Cover, Rear Floor Side Member, Rh[08.2005 - 08.2008] GSE25 |
57627-30040 |
US $26.35 |
||
|
57628C
|
57628C
57628-30040 Cover, Rear Floor Side Member, Lh[08.2005 - 08.2008] GSE25 |
57628-30040 |
US $43.68 |
||
|
58401K
|
58401K
58401-53010 Board Sub-Assy, Rear Floor, No.1[08.2005 - 08.2008] GSE2# |
58401-53010 |
US $165.98 |
||
|
58401K
|
58401K
58401-53040 Board Sub-Assy, Rear Floor, No.1[08.2008 - 07.2009] GSE2# |
58401-53040 |
US $138.32 |
||
| replacement | |||||
|
58401K
|
58401K
58401-53041 Board Sub-Assy, Rear Floor, No.1REAR FLOOR, NO.1 [08.2008 - 07.2009] GSE2# |
58401-53041 |
US $138.32 |
||
|
58401K
|
58401K
58401-53041 Board Sub-Assy, Rear Floor, No.1REAR FLOOR, NO.1 [08.2009 - 08.2010] GSE2# |
58401-53041 |
US $138.32 |
||
|
6548753020
|
6548753020
65487-53020 Clip, Corner Protector |
65487-53020 |
from US $2.19 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.68 |
||
|
9015960507
|
9015960507
90159-60507 SCREW WWASHER |
90159-60507 |
from US $0.86 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $2.15 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.68 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.79 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.25 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.25 |
||
|
904670908722
|
904670908722
90467-09087-22 Clip |
90467-09087-22 |
from US $0.68 |
||
