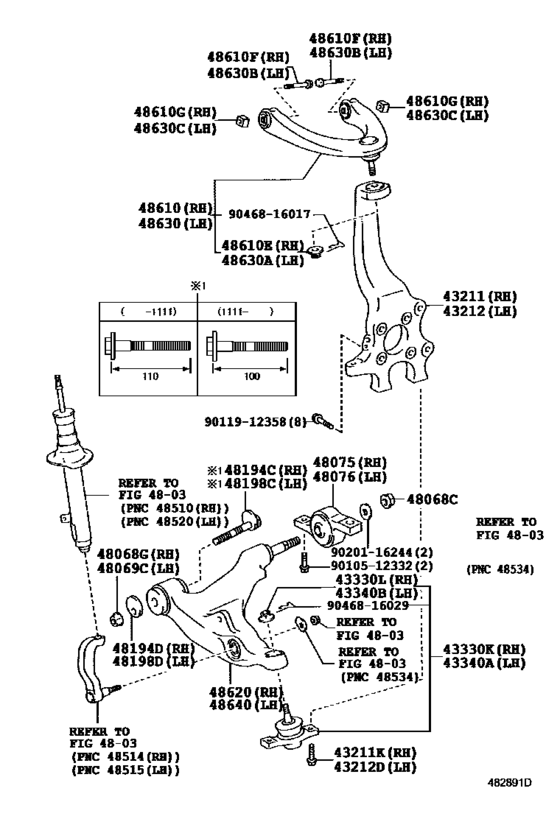

Front Axle Arm & Steering Knuckle ([08.2005 - ] (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-53020 Knuckle, Steering, Rh[08.2005 - 08.2008] GSE25 |
43201-53020 |
US $266.45 |
||
|
43211K
|
43211K
91552-L1455 Bolt (For Steering Knuckle Rh)[08.2005 - 08.2008] GSE25 |
91552-L1455 |
from US $2.96 |
||
|
43212
|
43212
43202-53020 Knuckle, Steering, Lh[08.2005 - 08.2008] GSE25 |
43202-53020 |
US $266.45 |
||
|
43212D
|
43212D
91552-L1455 Bolt (For Steering Knuckle Rh)[08.2005 - 08.2008] GSE25 |
91552-L1455 |
from US $2.96 |
||
|
43330K
|
43330K
43330-39635 Joint Assy, Lower Ball, Front Rh[08.2005 - 08.2008] GSE25 |
43330-39635 |
from US $50.90 |
||
|
43330L
|
43330L
90171-14014 Nut, Castle (For Front Lower Ball Joint Rh)[08.2005 - 08.2008] GSE25 |
90171-14014 |
from US $1.79 |
||
|
43340A
|
43340A
43330-39635 Joint Assy, Lower Ball, Front Rh[08.2005 - 08.2008] GSE25 |
43330-39635 |
from US $50.90 |
||
|
43340B
|
43340B
90171-14014 Nut, Castle (For Front Lower Ball Joint Rh)[08.2005 - 08.2008] GSE25 |
90171-14014 |
from US $1.79 |
||
|
48068C
|
48068C
94151-21601 Nut(For Front Suspension Lower Arm)[08.2005 - 08.2008] GSE25; GSE20,21 ＮＯ．１ |
94151-21601 |
from US $1.24 |
||
|
48068G
|
48068G
90179-14069 Nut[08.2005 - 08.2008] GSE25 |
90179-14069 |
from US $1.10 |
||
|
48069C
|
48069C
90179-14069 Nut[08.2005 - 08.2008] GSE25 |
90179-14069 |
from US $1.10 |
||
|
48075
|
48075
48075-30030 Bracket Sub-Assy, Lwr Arm, No,1, RH[11.2010 -] GSE2# オフセット：０，修理書 参照 |
48075-30030 |
from US $37.07 |
||
|
48075
|
48075
48075-30040 Bracket Sub-Assy, Lwr Arm, No,1[08.2005 - 08.2008] GSE2# オフセット：＋２０，修理書 参照 |
48075-30040 |
from US $47.01 |
||
|
48075
|
48075
48075-30050 Bracket Sub-Assy, Lwr Arm, No,1[08.2005 - 08.2008] GSE2# オフセット：−２０，修理書 参照 |
48075-30050 |
from US $32.40 |
||
|
48075
|
48075
48075-53010
Bracket Sub-Assy, Lwr Arm, No,1
[08.2005 - 08.2008] GSE2# オフセット：０，修理書 参照 |
48075-53010 |
— | ||
| replacement | |||||
|
48075
|
48075
48075-30030 Bracket Sub-Assy, Lwr Arm, No,1, RH[08.2005 - 08.2008] GSE2# オフセット：０，修理書 参照 |
48075-30030 |
from US $37.07 |
||
|
48076
|
48076
48076-30030 Bracket Sub-Assy, Lwr Arm, No.2, LH[11.2010 -] GSE2# オフセット：０，修理書 参照 |
48076-30030 |
from US $37.66 |
||
|
48076
|
48076
48076-30040 Bracket Sub-Assy, Lwr Arm, No.2[08.2005 - 08.2008] GSE2# オフセット：＋２０，修理書 参照 |
48076-30040 |
from US $47.73 |
||
|
48076
|
48076
48076-30050 Bracket Sub-Assy, Lwr Arm, No.2[08.2005 - 08.2008] GSE2# オフセット：−２０，修理書 参照 |
48076-30050 |
from US $32.40 |
||
|
48076
|
48076
48076-53010
Bracket Sub-Assy, Lwr Arm, No.2
[08.2005 - 08.2008] GSE2# オフセット：０，修理書 参照 |
48076-53010 |
— | ||
| replacement | |||||
|
48076
|
48076
48076-30030 Bracket Sub-Assy, Lwr Arm, No.2, LH[08.2005 - 08.2008] GSE2# オフセット：０，修理書 参照 |
48076-30030 |
from US $37.66 |
||
|
48194C
|
48194C
48190-50050 Cam, Front Suspension Camber Adjust, No.1 Rh[08.2005 - 08.2008] GSE25 |
48190-50050 |
from US $8.80 |
||
|
48194C
|
48194C
48190-77010 Cam Assy, Camber Adjust[11.2011 -] GSE25 |
48190-77010 |
US $10.39 |
||
|
48194D
|
48194D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[08.2005 - 08.2008] GSE25 |
48198-30060 |
from US $10.17 |
||
|
48198C
|
48198C
48190-50050 Cam, Front Suspension Camber Adjust, No.1 Rh[08.2005 - 08.2008] GSE25 |
48190-50050 |
from US $8.80 |
||
|
48198C
|
48198C
48190-77010 Cam Assy, Camber Adjust[11.2011 -] GSE25 |
48190-77010 |
US $10.39 |
||
|
48198D
|
48198D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[08.2005 - 08.2008] GSE25 |
48198-30060 |
from US $10.17 |
||
|
48610
|
48610
48610-39135 Arm Assy, Front Suspension Upper, Rh[08.2005 - 08.2008] GSE25 |
48610-39135 |
from US $155.04 |
||
|
48610E
|
48610E
90171-12012 Nut, Castle(For Tie Rod End)[08.2005 - 08.2008] GSE2# |
90171-12012 |
from US $1.46 |
||
|
48610F
|
48610F
91672-G1070 Bolt(For Suspension Upper Arm)[08.2005 - 08.2008] GSE2# |
91672-G1070 |
US $3.40 |
||
|
48610G
|
48610G
90173-10012 Nut(For Suspension Upper Arm)[08.2005 - 08.2008] GSE2# |
90173-10012 |
US $1.79 |
||
|
48620
|
48620
48620-30300 Arm Assy, Front Suspension, Lower Rh[08.2005 - 08.2008] GSE25 |
48620-30300 |
US $324.74 |
||
|
48630
|
48630
48610-39135 Arm Assy, Front Suspension Upper, Rh[08.2005 - 08.2008] GSE25 |
48610-39135 |
from US $155.04 |
||
|
48630A
|
48630A
90171-12012 Nut, Castle(For Tie Rod End)[08.2005 - 08.2008] GSE2# |
90171-12012 |
from US $1.46 |
||
|
48630B
|
48630B
91672-G1070 Bolt(For Suspension Upper Arm)[08.2005 - 08.2008] GSE2# |
91672-G1070 |
US $3.40 |
||
|
48630C
|
48630C
90173-10012 Nut(For Suspension Upper Arm)[08.2005 - 08.2008] GSE2# |
90173-10012 |
US $1.79 |
||
|
48640
|
48640
48640-30300 Arm Assy, Front Suspension Lower, Lh[08.2005 - 08.2008] GSE25 |
48640-30300 |
US $477.36 |
||
|
9010512332
|
9010512332
90105-12332 Bolt (For Rear Axle Bearing Case Rh) |
90105-12332 |
US $3.40 |
||
|
9011912358
|
9011912358
90119-12358 BOLT WWASHER |
90119-12358 |
from US $1.52 |
||
|
9020116244
|
9020116244
90201-16244 Washer, Plate (For Rear Drive Pinion) |
90201-16244 |
US $1.97 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
