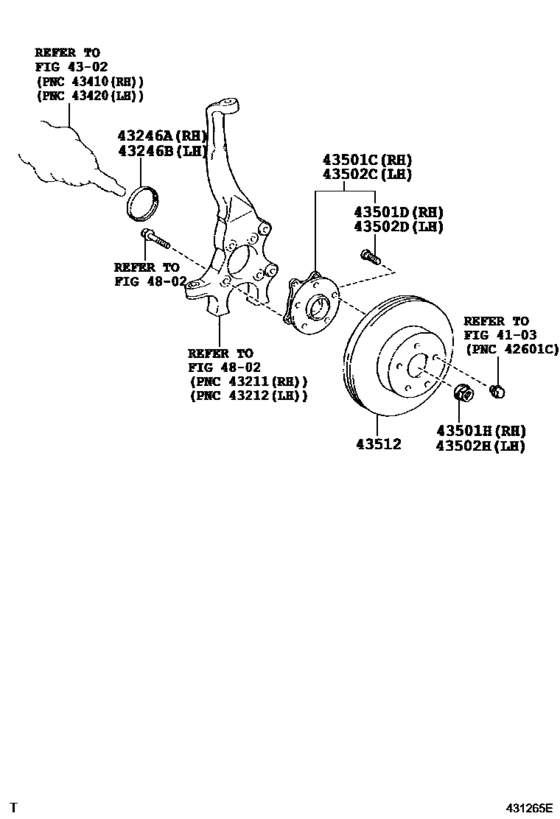

Front Axle Hub ([08.2005 - ] (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-30010 Deflector, Front Wheel Bearing Dust, No.1 Rh[08.2005 - 08.2008] GSE25 |
43246-30010 |
US $8.06 |
||
|
43246B
|
43246B
43246-30010 Deflector, Front Wheel Bearing Dust, No.1 Rh[08.2005 - 08.2008] GSE25 |
43246-30010 |
US $8.06 |
||
|
43501C
|
43501C
43550-30030
Hub Sub-Assy, Front Axle, Rh
[08.2005 - 08.2008] GSE25 |
43550-30030 |
— | ||
| replacement | |||||
|
43501C
|
43501C
43550-30031 Hub Sub-Assy, Front Axle, Rh[08.2005 - 08.2008] GSE25 |
43550-30031 |
from US $193.60 |
||
|
43501D
|
43501D
90942-02070
Bolt, Hub
[08.2005 - 08.2008] GSE2# |
90942-02070 |
— | ||
| replacements | |||||
|
43501D
|
43501D
90942-02049 Bolt, Hub[08.2005 - 08.2008] GSE2# |
90942-02049 |
US $4.30 |
||
|
43501D
|
43501D
90942-02082 Bolt, Hub[08.2005 - 08.2008] GSE2# |
90942-02082 |
from US $2.26 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[08.2005 - 08.2008] GSE25 |
90177-22001 |
from US $2.30 |
||
|
43502C
|
43502C
43560-30030
Hub Sub-Assy, Front Axle, Lh
[08.2005 - 08.2008] GSE25 |
43560-30030 |
— | ||
| replacement | |||||
|
43502C
|
43502C
43560-30031 Hub Sub-Assy, Front Axle, Lh[08.2005 - 08.2008] GSE25 |
43560-30031 |
from US $193.60 |
||
|
43502D
|
43502D
90942-02070
Bolt, Hub
[08.2005 - 08.2008] GSE2# |
90942-02070 |
— | ||
| replacements | |||||
|
43502D
|
43502D
90942-02049 Bolt, Hub[08.2005 - 08.2008] GSE2# |
90942-02049 |
US $4.30 |
||
|
43502D
|
43502D
90942-02082 Bolt, Hub[08.2005 - 08.2008] GSE2# |
90942-02082 |
from US $2.26 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[08.2005 - 08.2008] GSE25 |
90177-22001 |
from US $2.30 |
||
|
43512
|
43512
43512-30310 Disc, Front[08.2005 - 08.2008] GSE20,25 |
43512-30310 |
from US $160.36 |
||
