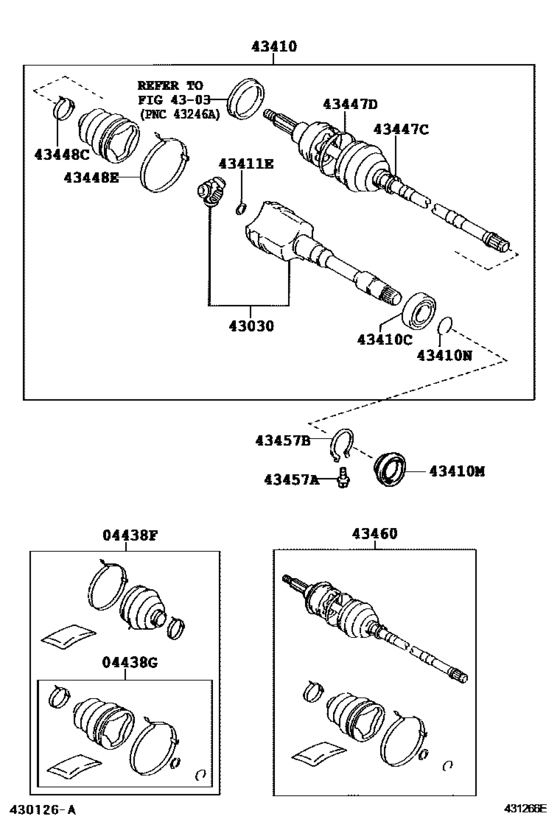

Front Drive Shaft ([08.2005 - ] ﾐｷﾞｶﾞﾜ (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-30010 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2005 - 08.2008] GSE25 |
04427-30010 |
US $120.85 |
||
| replacement | |||||
|
04438F
|
04438F
04427-30081 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2005 - 08.2008] GSE25 |
04427-30081 |
US $109.56 |
||
|
04438F
|
04438F
04427-30080 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2010 -] GSE25 |
04427-30080 |
US $100.46 |
||
| replacement | |||||
|
04438F
|
04438F
04427-30081 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2010 -] GSE25 |
04427-30081 |
US $109.56 |
||
|
04438G
|
04438G
04437-30070 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2005 - 08.2008] GSE25 |
04437-30070 |
US $72.16 |
||
| replacement | |||||
|
04438G
|
04438G
04437-30071 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2005 - 08.2008] GSE25 |
04437-30071 |
from US $67.32 |
||
|
43030
|
43030
43030-30020 Joint Assy, Front Drive Inboard, Rh[08.2005 - 08.2008] GSE25 |
43030-30020 |
US $312.75 |
||
|
43410
|
43410
43410-30020 Shaft Assy, Front Drive, Rh[08.2005 - 08.2008] GSE25 |
43410-30020 |
US $928.93 |
||
| replacement | |||||
|
43410
|
43410
43410-30021 Shaft Assy, Front Drive, Rh[08.2005 - 08.2008] GSE25 |
43410-30021 |
US $773.14 |
||
|
43410
|
43410
43410-30021 Shaft Assy, Front Drive, Rh[08.2010 -] GSE25 |
43410-30021 |
US $773.14 |
||
|
43410C
|
43410C
90363-36001
Bearing
[08.2005 - 06.2008] GSE25 |
90363-36001 |
— | ||
| replacements | |||||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[08.2005 - 06.2008] GSE25 |
90363-36004 |
from US $25.82 |
||
|
43410C
|
43410C
90363-36010 Bearing (For Front Drive Shaft)[08.2005 - 06.2008] GSE25 |
90363-36010 |
US $22.47 |
||
|
43410C
|
43410C
90363-36010 Bearing (For Front Drive Shaft)[06.2008 - 08.2008] GSE25 |
90363-36010 |
US $22.47 |
||
|
43410M
|
43410M
90311-35030 Seal, Oil (For Front Differential Case)[08.2005 - 08.2008] GSE25 |
90311-35030 |
from US $4.84 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 |
90520-33008 |
from US $1.86 |
||
|
43411E
|
43411E
90520-20065 Ring, Hole Snap(For Piston Pin)[08.2005 - 08.2008] GSE25 |
90520-20065 |
US $1.24 |
||
|
43447C
|
43447C
42345-22030 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
42345-22030 |
US $3.14 |
||
|
43447D
|
43447D
42345-22040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
42345-22040 |
US $5.59 |
||
|
43448C
|
43448C
90949-01804 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
90949-01804 |
US $2.48 |
||
|
43448E
|
43448E
90949-01803 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
90949-01803 |
US $3.67 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[08.2005 - 08.2008] GSE25 ＊１０−１．２５ＰＸ２８．５−１４．８ |
90901-19060 |
from US $2.22 |
||
|
43457B
|
43457B
90520-65002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[08.2005 - 08.2008] GSE25 |
90520-65002 |
US $2.33 |
||
|
43460
|
43460
43460-39215 Shaft Assy, Front Drive Outboard Joint, Rh[08.2005 - 08.2008] GSE25 |
43460-39215 |
US $426.61 |
||
| replacement | |||||
|
43460
|
43460
43460-39217 Shaft Assy, Front Drive Outboard Joint, Rh[08.2005 - 08.2008] GSE25 |
43460-39217 |
US $355.26 |
||
|
43460
|
43460
43460-39216 Shaft Assy, Front Drive Outboard Joint, Rh[08.2010 - 04.2013] GSE25 |
43460-39216 |
US $355.26 |
||
| replacement | |||||
|
43460
|
43460
43460-39217 Shaft Assy, Front Drive Outboard Joint, Rh[08.2010 - 04.2013] GSE25 |
43460-39217 |
US $355.26 |
||
