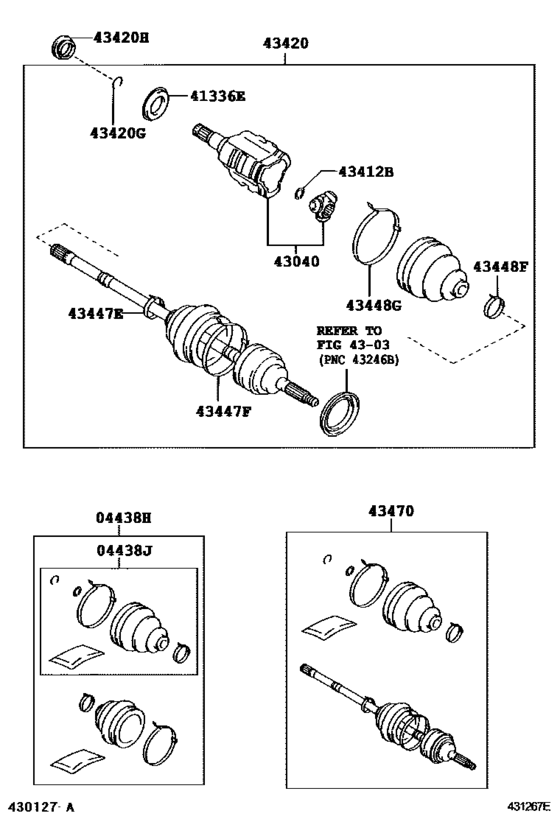

Front Drive Shaft ([08.2005 - ] ﾋﾀﾞﾘｶﾞﾜ (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-30030 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2005 - 08.2008] GSE25 |
04428-30030 |
US $120.85 |
||
| replacement | |||||
|
04438H
|
04438H
04428-30101 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2005 - 08.2008] GSE25 |
04428-30101 |
US $109.56 |
||
|
04438H
|
04438H
04428-30100 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2010 -] GSE25 |
04428-30100 |
US $100.46 |
||
| replacement | |||||
|
04438H
|
04438H
04428-30101 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2010 -] GSE25 |
04428-30101 |
US $109.56 |
||
|
04438J
|
04438J
04438-30050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2005 - 08.2008] GSE25 |
04438-30050 |
US $61.59 |
||
| replacement | |||||
|
04438J
|
04438J
04438-30051 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2005 - 08.2008] GSE25 |
04438-30051 |
from US $67.32 |
||
|
41336E
|
41336E
41336-32010 Cover, Dust(For Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 |
41336-32010 |
US $2.80 |
||
|
43040
|
43040
43040-30020 Joint Assy, Front Drive Inboard, Lh[08.2005 - 08.2008] GSE25 |
43040-30020 |
US $259.17 |
||
|
43412B
|
43412B
90520-20065 Ring, Hole Snap(For Piston Pin)[08.2005 - 08.2008] GSE25 |
90520-20065 |
US $1.24 |
||
|
43420
|
43420
43420-30020 Shaft Assy, Front Drive, Lh[08.2005 - 08.2008] GSE25 |
43420-30020 |
US $800.80 |
||
| replacement | |||||
|
43420
|
43420
43420-30021 Shaft Assy, Front Drive, Lh[08.2005 - 08.2008] GSE25 |
43420-30021 |
US $666.85 |
||
|
43420
|
43420
43420-30021 Shaft Assy, Front Drive, Lh[08.2010 -] GSE25 |
43420-30021 |
US $666.85 |
||
|
43420G
|
43420G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 |
90521-26004 |
from US $1.79 |
||
|
43420H
|
43420H
90311-35030 Seal, Oil (For Front Differential Case)[08.2005 - 08.2008] GSE25 |
90311-35030 |
from US $4.84 |
||
|
43447E
|
43447E
42345-22030 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
42345-22030 |
US $3.14 |
||
|
43447F
|
43447F
42345-22040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
42345-22040 |
US $5.59 |
||
|
43448F
|
43448F
90949-01804 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
90949-01804 |
US $2.48 |
||
|
43448G
|
43448G
90949-01803 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)[08.2005 - 08.2008] GSE25 |
90949-01803 |
US $3.67 |
||
|
43470
|
43470
43470-39425 Shaft Assy, Front Drive Outboard Joint, Lh[08.2005 - 08.2008] GSE25 |
43470-39425 |
US $513.97 |
||
| replacement | |||||
|
43470
|
43470
43470-39427 Shaft Assy, Front Drive Outboard Joint, Lh[08.2005 - 08.2008] GSE25 |
43470-39427 |
US $428.06 |
||
|
43470
|
43470
43470-39426 Shaft Assy, Front Drive Outboard Joint, Lh[08.2010 - 04.2013] GSE25 |
43470-39426 |
US $428.06 |
||
| replacement | |||||
|
43470
|
43470
43470-39427 Shaft Assy, Front Drive Outboard Joint, Lh[08.2010 - 04.2013] GSE25 |
43470-39427 |
US $428.06 |
||
