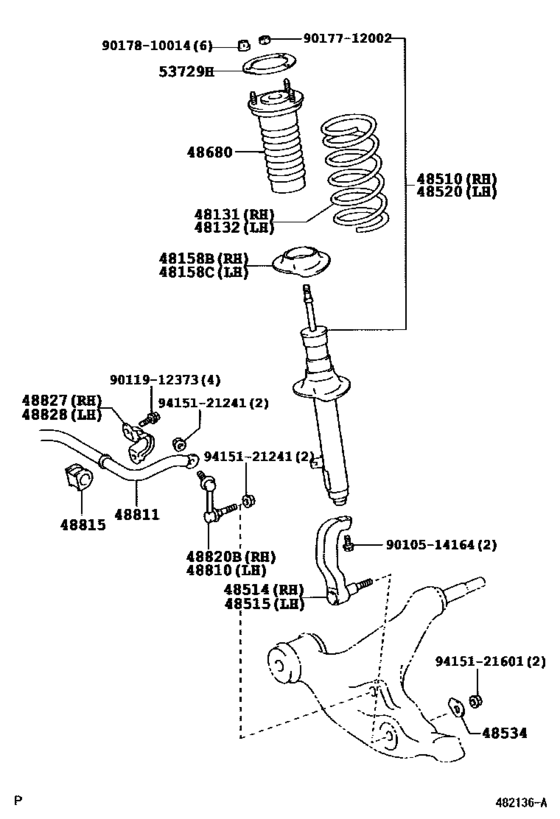

Front Spring & Shock Absorber ([08.2005 - ] (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-53240
Spring, Front Coil, Rh
[08.2005 - 04.2007] GSE25 |
48131-53240 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-53241 Spring, Front Coil, Rh[08.2005 - 04.2007] GSE25 |
48131-53241 |
US $117.54 |
||
|
48131
|
48131
48131-53241 Spring, Front Coil, Rh[05.2007 - 08.2008] GSE25 |
48131-53241 |
US $117.54 |
||
|
48132
|
48132
48131-53240
Spring, Front Coil, Rh
[08.2005 - 04.2007] GSE25 |
48131-53240 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-53241 Spring, Front Coil, Rh[08.2005 - 04.2007] GSE25 |
48131-53241 |
US $117.54 |
||
|
48132
|
48132
48131-53241 Spring, Front Coil, Rh[05.2007 - 08.2008] GSE25 |
48131-53241 |
US $117.54 |
||
|
48158B
|
48158B
48158-30020 Insulator, Front Coil Spring, Lower[08.2005 - 08.2008] GSE2# |
48158-30020 |
from US $4.96 |
||
|
48158C
|
48158C
48158-30020 Insulator, Front Coil Spring, Lower[08.2005 - 08.2008] GSE2# |
48158-30020 |
from US $4.96 |
||
|
48510
|
48510
48510-80259 Absorber Assy, Shock, Front Rh[08.2005 - 08.2008] GSE25 マーク ４８５１０−５３１３０ |
48510-80259 |
from US $119.39 |
||
|
48514
|
48514
48503-30030 Bracket, Front Shock Absorber, Lower Rh[08.2005 - 08.2008] GSE25 |
48503-30030 |
US $41.33 |
||
|
48515
|
48515
48504-30020 Bracket, Front Shock Absorber, Lower Lh[08.2005 - 08.2008] GSE25 |
48504-30020 |
US $41.33 |
||
|
48520
|
48520
48520-59305 Absorber Assy, Shock, Front Lh[08.2005 - 08.2008] GSE25 マーク ４８５２０−５３０５０ |
48520-59305 |
from US $119.39 |
||
|
48534
|
48534
48534-30010 Plate, Front Shock Absorber Upper Bracket[08.2005 - 08.2008] GSE25 |
48534-30010 |
US $6.45 |
||
|
48680
|
48680
48680-53040 Support Assy, Front Suspension[08.2005 - 08.2008] GSE25 |
48680-53040 |
US $84.45 |
||
| replacement | |||||
|
48680
|
48680
48680-53041 Support Assy, Front Suspension[08.2005 - 08.2008] GSE25 |
48680-53041 |
US $71.17 |
||
|
48680
|
48680
48680-53041 Support Assy, Front Suspension[11.2012 - 04.2013] GSE25 |
48680-53041 |
US $71.17 |
||
|
48810
|
48810
48810-30080 Link Assy, Front Stabilizer, Lh[08.2005 - 08.2008] GSE25 |
48810-30080 |
from US $60.82 |
||
|
48811
|
48811
48811-30650 Bar, Stabilizer, Front[08.2005 - 08.2008] GSE25 |
48811-30650 |
US $85.90 |
||
|
48815
|
48815
48815-30561 Bush, Front Stabilizer Bar, No.1[08.2005 - 08.2008] GSE25 |
48815-30561 |
from US $19.49 |
||
|
48820B
|
48820B
48820-30100 Link Assy, Front Stabilizer, Rh[08.2005 - 08.2008] GSE25 |
48820-30100 |
from US $60.82 |
||
|
48827
|
48827
48824-30140 Bracket, Front Stabilizer, No.2 Rh[08.2005 - 08.2008] GSE25 |
48824-30140 |
US $18.98 |
||
|
48828
|
48828
48824-30140 Bracket, Front Stabilizer, No.2 Rh[08.2005 - 08.2008] GSE25 |
48824-30140 |
US $18.98 |
||
|
53729H
|
53729H
53729-53020 Reinforcement, Front Spring Support, No.3[08.2005 - 08.2008] GSE2# |
53729-53020 |
US $8.96 |
||
|
9010514164
|
9010514164
90105-14164 New Genuine Part |
90105-14164 |
US $3.40 |
||
|
9011912373
|
9011912373
90119-12373 New Genuine Part |
90119-12373 |
US $3.40 |
||
|
9017712002
|
9017712002
90177-12002 Nut |
90177-12002 |
US $1.61 |
||
|
9017810014
|
9017810014
90178-10014 Nut(For Front Suspension Support) |
90178-10014 |
from US $1.10 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.93 |
||
|
9415121601
|
9415121601
94151-21601 Nut(For Front Suspension Lower Arm) |
94151-21601 |
from US $1.24 |
||
