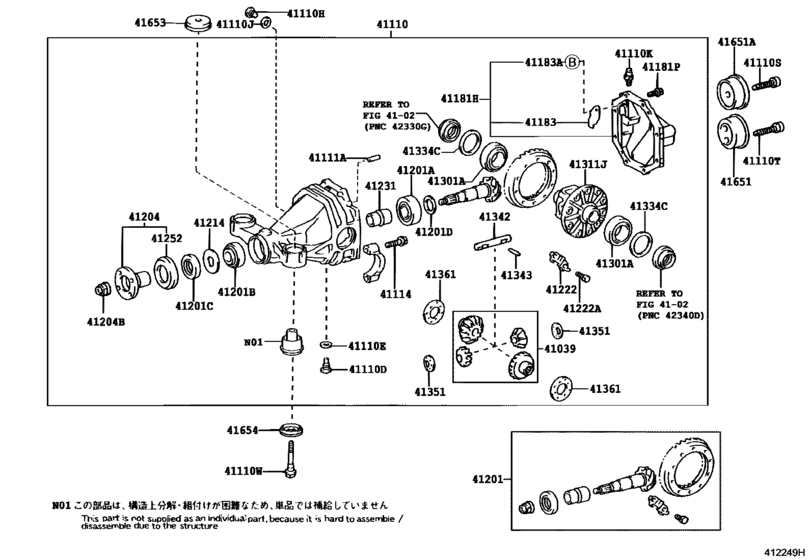

Rear Axle Housing & Differential ([08.2005 - 08.2008] (0508-0808)GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-34030 Gear Kit, Differential, Rear[08.2005 - 08.2008] GSE25 |
41039-34030 |
US $170.35 |
||
|
41110
|
41110
41110-30A00 Carrier Assy, Differential, Rear[08.2008 - 02.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A00 |
US $2,751.84 |
||
| replacement | |||||
|
41110
|
41110
41110-30A03 Carrier Assy, Differential, Rear[08.2008 - 02.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A03 |
US $2,067.52 |
||
|
41110
|
41110
41110-30A01 Carrier Assy, Differential, RearDIFFERENTIAL, REAR [02.2010 - 08.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A01 |
US $2,751.84 |
||
| replacement | |||||
|
41110
|
41110
41110-30A03 Carrier Assy, Differential, Rear[02.2010 - 08.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A03 |
US $2,067.52 |
||
|
41110
|
41110
41110-30A02 Carrier Assy, Differential, Rear[11.2010 - 10.2012] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A02 |
US $2,751.84 |
||
| replacement | |||||
|
41110
|
41110
41110-30A03 Carrier Assy, Differential, Rear[11.2010 - 10.2012] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A03 |
US $2,067.52 |
||
|
41110
|
41110
41110-30A03 Carrier Assy, Differential, Rear[10.2012 - 04.2013] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A03 |
US $2,067.52 |
||
|
41110
|
41110
41110-30A21 Carrier Assy, Differential, Rear[08.2005 - 08.2008] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-30A21 |
from US $3,115.84 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[08.2005 - 08.2008] GSE2# |
90341-18035 |
from US $3.36 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[08.2005 - 08.2008] GSE2# |
12157-10010 |
from US $0.72 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [09.2011 - 04.2013] GSE20,25 |
90341-18032 |
from US $3.76 |
||
|
41110H
|
41110H
90341-18066
Plug (For Rear Differential Filler)
[08.2005 - 08.2008] GSE2# |
90341-18066 |
— | ||
| replacement | |||||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.2005 - 08.2008] GSE2# |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[08.2005 - 08.2008] GSE2# |
12157-10010 |
from US $0.72 |
||
|
41110K
|
41110K
90930-03077 Plug, Breather (For Automatic Transmission Case)[08.2005 - 08.2008] GSE2# |
90930-03077 |
US $8.06 |
||
|
41110S
|
41110S
90110-14004
Bolt, No.2 (For Rear Differential Carrier Set)
[08.2005 - 09.2006] GSE20,25 |
90110-14004 |
— | ||
| replacement | |||||
|
41110S
|
41110S
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[08.2005 - 09.2006] GSE20,25 |
90110-14006 |
from US $2.62 |
||
|
41110S
|
41110S
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[10.2006 - 08.2008] GSE20,25 |
90110-14006 |
from US $2.62 |
||
|
41110T
|
41110T
90110-14004
Bolt, No.2 (For Rear Differential Carrier Set)
[08.2005 - 09.2006] GSE20,25 |
90110-14004 |
— | ||
| replacement | |||||
|
41110T
|
41110T
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[08.2005 - 09.2006] GSE20,25 |
90110-14006 |
from US $2.62 |
||
|
41110T
|
41110T
90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)[10.2006 - 08.2008] GSE20,25 |
90110-14006 |
from US $2.62 |
||
|
41110W
|
41110W
90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)[08.2005 - 08.2008] GSE2# |
90109-12081 |
from US $2.93 |
||
|
41111A
|
41111A
90250-08120 Pin, Straight, No.1[08.2005 - 08.2008] GSE20,25 |
90250-08120 |
from US $0.99 |
||
|
41114
|
41114
90105-12164 Bolt (For Rear Differential Carrier)[08.2005 - 08.2008] GSE20,25 |
90105-12164 |
US $3.03 |
||
|
41181H
|
41181H
41108-53010 Cover, Rear Differential Carrier[08.2005 - 08.2008] GSE25 |
41108-53010 |
US $195.10 |
||
|
41181H
|
41181H
41108-53020
Cover, Rear Differential Carrier
[08.2008 - 08.2010] GSE20,25 |
41108-53020 |
— | ||
| replacement | |||||
|
41181H
|
41181H
41108-53021 Cover, Rear Differential Carrier[08.2008 - 08.2010] GSE20,25 |
41108-53021 |
US $129.29 |
||
|
41181H
|
41181H
41108-53021 Cover, Rear Differential Carrier[10.2012 -] GSE20,25 |
41108-53021 |
US $129.29 |
||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[08.2005 - 08.2008] GSE2# |
90105-10417 |
US $3.05 |
||
|
41183
|
41183
41183-53010 Deflector, Rear Differential Breather Plug Oil[08.2005 - 08.2008] GSE25 |
41183-53010 |
US $3.49 |
||
|
41183
|
41183
41183-53020 Deflector, Rear Differential Breather Plug Oil[08.2008 - 08.2010] GSE20,25 |
41183-53020 |
US $4.30 |
||
|
41183A
|
41183A
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)[08.2005 - 08.2008] GSE20,25 |
91611-B0614 |
from US $0.78 |
||
|
41201
|
41201
41201-19605 Final Gear Kit, Differential, Rear[08.2008 - 08.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-19605 |
US $643.55 |
||
| replacement | |||||
|
41201
|
41201
41201-19606 Final Gear Kit, Differential, Rear[08.2008 - 08.2010] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-19606 |
US $583.86 |
||
|
41201
|
41201
41201-80054 Final Gear Kit, Differential, Rear[08.2005 - 08.2008] GSE25 ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-80054 |
US $870.69 |
||
|
41201A
|
41201A
90366-35104
Bearing (For Rear Drive Pinion Rear)
[08.2005 - 08.2008] GSE25 |
90366-35104 |
— | ||
| replacement | |||||
|
41201A
|
41201A
90366-35117 Bearing (For Rear Drive Pinion Rear)[08.2005 - 08.2008] GSE25 |
90366-35117 |
US $55.44 |
||
|
41201A
|
41201A
90366-35133
Bearing (For Rear Drive Pinion Rear)
[08.2008 - 08.2010] GSE20,25 |
90366-35133 |
— | ||
| replacement | |||||
|
41201A
|
41201A
90366-35170 Bearing (For Rear Drive Pinion Rear)[08.2008 - 08.2010] GSE20,25 |
90366-35170 |
US $58.80 |
||
|
41201A
|
41201A
90366-35170 Bearing (For Rear Drive Pinion Rear)[10.2012 -] GSE20,25 |
90366-35170 |
US $58.80 |
||
|
41201B
|
41201B
90366-30078 Bearing (For Rear Drive Pinion Front)[08.2005 - 08.2008] GSE25 |
90366-30078 |
from US $32.09 |
||
|
41201B
|
41201B
90366-30093
Bearing (For Rear Drive Pinion Front)
[08.2008 - 08.2010] GSE20,25 |
90366-30093 |
— | ||
| replacement | |||||
|
41201B
|
41201B
90366-30108 Bearing (For Rear Drive Pinion Front)[08.2008 - 08.2010] GSE20,25 |
90366-30108 |
US $49.90 |
||
|
41201B
|
41201B
90366-30108 Bearing (For Rear Drive Pinion Front)[10.2012 -] GSE20,25 |
90366-30108 |
US $49.90 |
||
|
41201C
|
41201C
90311-38070 Seal, Oil (For Rear Differential Carrier)[08.2005 - 08.2008] GSE20,25 |
90311-38070 |
from US $7.53 |
||
|
41201D
|
41201D
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．７０ |
90201-35497 |
from US $2.76 |
||
|
41201D
|
41201D
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．７３ |
90201-35498 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．７６ |
90201-35499 |
from US $2.72 |
||
|
41201D
|
41201D
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．７９ |
90201-35500 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．８２ |
90201-35501 |
from US $2.74 |
||
|
41201D
|
41201D
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．８５ |
90201-35502 |
from US $3.02 |
||
|
41201D
|
41201D
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．８８ |
90201-35503 |
from US $2.85 |
||
|
41201D
|
41201D
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．９１ |
90201-35504 |
US $3.23 |
||
|
41201D
|
41201D
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．９４ |
90201-35505 |
US $3.23 |
||
|
41201D
|
41201D
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝１．９７ |
90201-35506 |
US $3.23 |
||
|
41201D
|
41201D
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．００ |
90201-35507 |
from US $2.81 |
||
|
41201D
|
41201D
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．０３ |
90201-35508 |
from US $2.85 |
||
|
41201D
|
41201D
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．０６ |
90201-35509 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．０９ |
90201-35510 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．１２ |
90201-35511 |
from US $2.83 |
||
|
41201D
|
41201D
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．１５ |
90201-35512 |
US $3.23 |
||
|
41201D
|
41201D
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．１８ |
90201-35513 |
from US $3.08 |
||
|
41201D
|
41201D
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．２１ |
90201-35514 |
from US $3.23 |
||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．２４，マーク ０１ |
90201-35515 |
US $2.15 |
||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．２７，マーク ０２ |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．３０，マーク ０３ |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[08.2005 - 08.2008] GSE20,25 厚さ＝２．３３，マーク ０４ |
90201-35518 |
from US $2.15 |
||
|
41204
|
41204
41204-35041 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[08.2008 - 08.2010] GSE20,25 |
41204-35041 |
from US $61.15 |
||
|
41204
|
41204
41204-35050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[08.2005 - 08.2008] GSE25 |
41204-35050 |
US $73.58 |
||
|
41204B
|
41204B
90179-18020 Nut (For Transfer Gear)[08.2005 - 08.2008] GSE25 外径＝３３．５ |
90179-18020 |
from US $1.50 |
||
|
41204B
|
41204B
90179-20018 Nut (For Rear Drive Pinion)[08.2008 - 08.2010] GSE20,25 外径＝３７ |
90179-20018 |
from US $2.34 |
||
|
41214
|
41214
41214-26010 Slinger, Rear Differential Drive Pinion Oil[08.2008 - 08.2010] GSE20,25 |
41214-26010 |
from US $7.33 |
||
|
41214
|
41214
41214-35020 Slinger, Rear Differential Drive Pinion Oil[08.2005 - 08.2008] GSE25 |
41214-35020 |
US $7.35 |
||
|
41222
|
41222
41222-22010 Plate, Rear Differential Ring Gear Set Bolt Lock[08.2008 - 08.2010] GSE20,25 |
41222-22010 |
US $2.15 |
||
|
41222
|
41222
41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock[08.2005 - 08.2008] GSE25 |
41222-35030 |
US $2.15 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[08.2005 - 08.2008] GSE20,25 |
90101-11353 |
from US $0.87 |
||
|
41231
|
41231
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[08.2005 - 08.2008] GSE25 |
41231-22010 |
from US $9.96 |
||
|
41231
|
41231
41231-24010 Spacer, Rear Differential Drive Pinion Bearing[08.2008 - 08.2010] GSE20,25 |
41231-24010 |
from US $11.47 |
||
|
41252
|
41252
41252-30010 Deflector, Dust (For Rear Differential)[08.2005 - 08.2008] GSE25 |
41252-30010 |
US $8.24 |
||
|
41252
|
41252
41252-35020 Deflector, Dust (For Rear Differential)[08.2008 - 08.2010] GSE20,25 |
41252-35020 |
from US $7.54 |
||
|
41301A
|
41301A
90366-50001 Bearing(For Rear Differential Case)[08.2008 - 08.2010] GSE20,25 |
90366-50001 |
from US $46.66 |
||
|
41301A
|
41301A
90368-50006 Bearing(For Rear Differential Case)[08.2005 - 08.2008] GSE25 |
90368-50006 |
from US $38.48 |
||
|
41311J
|
41311J
41311-28030 Case, Front Differential[08.2005 - 08.2008] GSE25 |
41311-28030 |
US $331.97 |
||
|
41334C
|
41334C
90201-52001 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．５８，マーク ０１ |
90201-52001 |
from US $4.37 |
||
|
41334C
|
41334C
90201-52003 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．６４，マーク ０３ |
90201-52003 |
US $6.99 |
||
|
41334C
|
41334C
90201-52005 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．７０，マーク ０５ |
90201-52005 |
US $8.06 |
||
|
41334C
|
41334C
90201-52007 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．７６，マーク ０７ |
90201-52007 |
US $8.06 |
||
|
41334C
|
41334C
90201-52009 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．８２，マーク ０９ |
90201-52009 |
US $8.06 |
||
|
41334C
|
41334C
90201-52011 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．８８，マーク １１ |
90201-52011 |
US $8.06 |
||
|
41334C
|
41334C
90201-52013 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．９４，マーク １３ |
90201-52013 |
US $8.06 |
||
|
41334C
|
41334C
90201-52015 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．００，マーク １５ |
90201-52015 |
US $8.06 |
||
|
41334C
|
41334C
90201-52017 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．０６，マーク １７ |
90201-52017 |
US $8.06 |
||
|
41334C
|
41334C
90201-52019 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．１２，マーク １９ |
90201-52019 |
US $8.06 |
||
|
41334C
|
41334C
90201-52021 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．１８，マーク ２１ |
90201-52021 |
US $8.06 |
||
|
41334C
|
41334C
90201-52023 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．２４，マーク ２３ |
90201-52023 |
US $8.06 |
||
|
41334C
|
41334C
90201-52025 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．３０，マーク ２５ |
90201-52025 |
US $8.06 |
||
|
41334C
|
41334C
90201-52027 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．３６，マーク ２７ |
90201-52027 |
US $8.06 |
||
|
41334C
|
41334C
90201-52029 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．４２，マーク ２９ |
90201-52029 |
US $8.06 |
||
|
41334C
|
41334C
90201-52031 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．４８，マーク ３１ |
90201-52031 |
US $8.06 |
||
|
41334C
|
41334C
90201-65007 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．５８ |
90201-65007 |
US $6.27 |
||
|
41334C
|
41334C
90201-65009 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．６４ |
90201-65009 |
US $4.54 |
||
|
41334C
|
41334C
90201-65011 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．７０ |
90201-65011 |
US $4.54 |
||
|
41334C
|
41334C
90201-65013 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．７６ |
90201-65013 |
US $4.54 |
||
|
41334C
|
41334C
90201-65015 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．８２ |
90201-65015 |
US $4.54 |
||
|
41334C
|
41334C
90201-65017 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．８８ |
90201-65017 |
US $4.54 |
||
|
41334C
|
41334C
90201-65019 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝２．９４ |
90201-65019 |
US $4.54 |
||
|
41334C
|
41334C
90201-65021 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝３．００ |
90201-65021 |
US $4.54 |
||
|
41334C
|
41334C
90201-65023 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝３．０６ |
90201-65023 |
US $4.54 |
||
|
41334C
|
41334C
90201-65025 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝３．１２ |
90201-65025 |
US $4.54 |
||
|
41334C
|
41334C
90201-65027 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝３．１８ |
90201-65027 |
US $4.54 |
||
|
41334C
|
41334C
90201-65029 Washer, Plate (For Front Differential Case)[08.2005 - 08.2008] GSE25 厚さ＝３．２４ |
90201-65029 |
US $4.54 |
||
|
41334C
|
41334C
90564-46014 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．６０，マーク ３２ |
90564-46014 |
US $8.24 |
||
|
41334C
|
41334C
90564-46015 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．６２，マーク ３３ |
90564-46015 |
US $5.73 |
||
|
41334C
|
41334C
90564-46016 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．６６，マーク ３４ |
90564-46016 |
US $5.73 |
||
|
41334C
|
41334C
90564-46017 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．６８，マーク ３５ |
90564-46017 |
US $5.73 |
||
|
41334C
|
41334C
90564-46018 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．７２，マーク ３６ |
90564-46018 |
US $6.63 |
||
|
41334C
|
41334C
90564-46019 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．７４，マーク ３７ |
90564-46019 |
US $6.63 |
||
|
41334C
|
41334C
90564-46020 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．７８，マーク ３８ |
90564-46020 |
US $6.63 |
||
|
41334C
|
41334C
90564-46021 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．８０，マーク ３９ |
90564-46021 |
US $6.63 |
||
|
41334C
|
41334C
90564-46022 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．８４，マーク ４０ |
90564-46022 |
US $6.63 |
||
|
41334C
|
41334C
90564-46023 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．８６，マーク ４１ |
90564-46023 |
US $6.63 |
||
|
41334C
|
41334C
90564-46024 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．９０，マーク ４２ |
90564-46024 |
US $6.63 |
||
|
41334C
|
41334C
90564-46025 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．９２，マーク ４３ |
90564-46025 |
US $6.63 |
||
|
41334C
|
41334C
90564-46026 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．９６，マーク ４４ |
90564-46026 |
US $6.63 |
||
|
41334C
|
41334C
90564-46027 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝２．９８，マーク ４５ |
90564-46027 |
US $6.63 |
||
|
41334C
|
41334C
90564-46028 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．０２，マーク ４６ |
90564-46028 |
US $6.63 |
||
|
41334C
|
41334C
90564-46029 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．０４，マーク ４７ |
90564-46029 |
US $6.63 |
||
|
41334C
|
41334C
90564-46030 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．０８，マーク ４８ |
90564-46030 |
US $6.63 |
||
|
41334C
|
41334C
90564-46031 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．１０，マーク ４９ |
90564-46031 |
US $6.63 |
||
|
41334C
|
41334C
90564-46032 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．１４，マーク ５０ |
90564-46032 |
US $6.63 |
||
|
41334C
|
41334C
90564-46033 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．１６，マーク ５１ |
90564-46033 |
US $6.63 |
||
|
41334C
|
41334C
90564-46034 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．２０，マーク ５２ |
90564-46034 |
US $6.63 |
||
|
41334C
|
41334C
90564-46035 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．２２，マーク ５３ |
90564-46035 |
US $6.63 |
||
|
41334C
|
41334C
90564-46036 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．２６，マーク ５４ |
90564-46036 |
US $6.63 |
||
|
41334C
|
41334C
90564-46037 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．２８，マーク ５５ |
90564-46037 |
US $6.63 |
||
|
41334C
|
41334C
90564-46038 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．３２，マーク ５６ |
90564-46038 |
US $6.63 |
||
|
41334C
|
41334C
90564-46039 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．３４，マーク ５７ |
90564-46039 |
US $6.63 |
||
|
41334C
|
41334C
90564-46040 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．３８，マーク ５８ |
90564-46040 |
US $6.63 |
||
|
41334C
|
41334C
90564-46041 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．４０，マーク ５９ |
90564-46041 |
US $6.63 |
||
|
41334C
|
41334C
90564-46042 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．４４，マーク ６０ |
90564-46042 |
US $6.63 |
||
|
41334C
|
41334C
90564-46043 Washer, Plate (For Front Differential Case)[08.2008 - 08.2010] GSE20,25 厚さ＝３．４６，マーク ６１ |
90564-46043 |
US $6.63 |
||
|
41334C
|
41334C
90564-65001 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．６０ |
90564-65001 |
US $4.37 |
||
|
41334C
|
41334C
90564-65002 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．６２ |
90564-65002 |
US $4.37 |
||
|
41334C
|
41334C
90564-65003 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．６６ |
90564-65003 |
US $4.37 |
||
|
41334C
|
41334C
90564-65004 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．６８ |
90564-65004 |
US $4.37 |
||
|
41334C
|
41334C
90564-65005 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．７２ |
90564-65005 |
US $4.37 |
||
|
41334C
|
41334C
90564-65006 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．７４ |
90564-65006 |
US $4.37 |
||
|
41334C
|
41334C
90564-65007 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．７８ |
90564-65007 |
US $4.37 |
||
|
41334C
|
41334C
90564-65008 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．８０ |
90564-65008 |
US $4.37 |
||
|
41334C
|
41334C
90564-65009 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．８４ |
90564-65009 |
US $4.37 |
||
|
41334C
|
41334C
90564-65010 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．８６ |
90564-65010 |
US $4.37 |
||
|
41334C
|
41334C
90564-65011 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．９０ |
90564-65011 |
US $4.37 |
||
|
41334C
|
41334C
90564-65012 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．９２ |
90564-65012 |
US $4.37 |
||
|
41334C
|
41334C
90564-65013 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．９６ |
90564-65013 |
US $4.37 |
||
|
41334C
|
41334C
90564-65014 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝２．９８ |
90564-65014 |
US $4.37 |
||
|
41334C
|
41334C
90564-65015 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．０２ |
90564-65015 |
US $4.37 |
||
|
41334C
|
41334C
90564-65016 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．０４ |
90564-65016 |
US $4.37 |
||
|
41334C
|
41334C
90564-65017 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．０８ |
90564-65017 |
US $4.37 |
||
|
41334C
|
41334C
90564-65018 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．１０ |
90564-65018 |
US $4.37 |
||
|
41334C
|
41334C
90564-65019 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．１４ |
90564-65019 |
US $4.37 |
||
|
41334C
|
41334C
90564-65020 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．１６ |
90564-65020 |
US $4.37 |
||
|
41334C
|
41334C
90564-65021 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．２０ |
90564-65021 |
US $4.37 |
||
|
41334C
|
41334C
90564-65022 Washer, Plate (For Rear Differential Side Gear Shaft)[08.2005 - 08.2008] GSE25 厚さ＝３．２２ |
90564-65022 |
US $4.37 |
||
|
41342
|
41342
41342-22021 Shaft, Rear Differential Pinion[08.2005 - 08.2008] GSE25 |
41342-22021 |
from US $12.67 |
||
|
41343
|
41343
90250-06058 Pin, Straight(For Timing Gear Case)[08.2005 - 08.2008] GSE25 |
90250-06058 |
from US $2.03 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[08.2005 - 08.2008] GSE25 |
41351-30060 |
from US $2.01 |
||
|
41361
|
41361
41361-30040 Washer, Rear Differential Side Gear Thrust, No.1[08.2005 - 08.2008] GSE25 厚さ＝１．０ |
41361-30040 |
US $4.30 |
||
|
41361
|
41361
41361-30050 Washer, Rear Differential Side Gear Thrust, No.1[08.2005 - 08.2008] GSE25 厚さ＝１．１ |
41361-30050 |
US $4.30 |
||
|
41361
|
41361
41361-30060 Washer, Rear Differential Side Gear Thrust, No.1[08.2005 - 08.2008] GSE25 厚さ＝１．２ |
41361-30060 |
US $4.30 |
||
|
41361
|
41361
41361-30070 Washer, Rear Differential Side Gear Thrust, No.1[08.2005 - 08.2008] GSE25 厚さ＝１．３ |
41361-30070 |
from US $4.30 |
||
|
41651
|
41651
41651-30060 Cushion, Rear Differential Mount, No.1[08.2005 - 08.2008] GSE20,25 |
41651-30060 |
from US $38.95 |
||
|
41651A
|
41651A
41651-30070 Cushion, Rear Differential Mount, No.2[08.2005 - 08.2008] GSE20,25 |
41651-30070 |
from US $49.21 |
||
|
41653
|
41653
41653-30060 Stopper, Rear Differential Mount, Upper[08.2005 - 08.2008] GSE20,25 |
41653-30060 |
US $7.84 |
||
|
41654
|
41654
41654-30040
Stopper, Rear Differential Mount, Lower
[08.2005 - 08.2008] GSE20,25 |
41654-30040 |
— | ||
| replacement | |||||
|
41654
|
41654
41654-30041 Stopper, Rear Differential Mount, Lower[08.2005 - 08.2008] GSE20,25 |
41654-30041 |
from US $13.26 |
||
|
41654
|
41654
41654-30050 Stopper, Rear Differential Mount, Lower[11.2011 - 09.2012] GSE20,25 |
41654-30050 |
US $13.83 |
||
| replacement | |||||
|
41654
|
41654
41654-30052 Stopper, Rear Differential Mount, Lower[11.2011 - 09.2012] GSE20,25 |
41654-30052 |
US $11.50 |
||
|
41654
|
41654
41654-30051 Stopper, Rear Differential Mount, Lower[10.2012 -] GSE20,25 |
41654-30051 |
US $11.50 |
||
| replacement | |||||
|
41654
|
41654
41654-30052 Stopper, Rear Differential Mount, Lower[10.2012 -] GSE20,25 |
41654-30052 |
US $11.50 |
||
