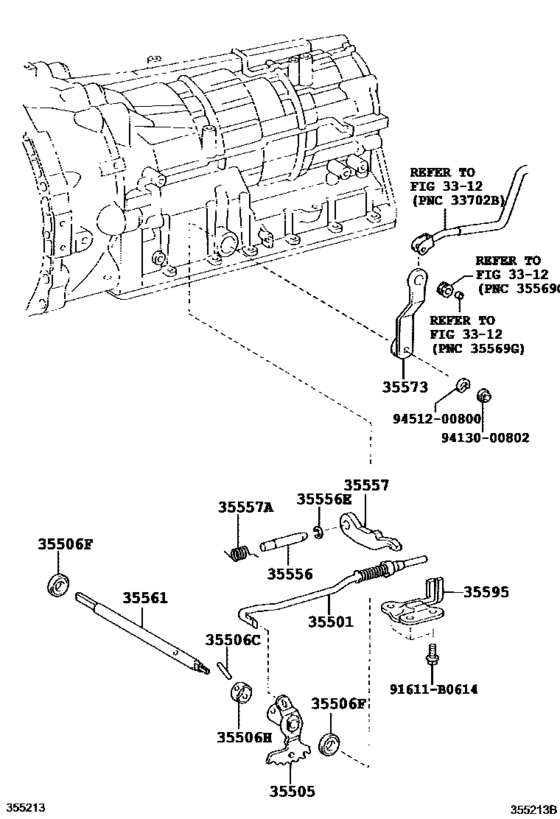

Throttle Link & Valve Lever (Atm) ([08.2005 - ] A760H (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-50010 Rod Sub-Assy, Parking Lock[08.2005 - 08.2008] GSE21,25 |
35501-50010 |
US $23.15 |
||
|
35505
|
35505
35505-53030 Lever Sub-Assy, Manual Valve[08.2005 - 08.2008] GSE21,25 |
35505-53030 |
US $16.16 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[08.2005 - 08.2008] GSE2# |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[08.2005 - 08.2008] GSE2# |
90311-12002 |
from US $3.93 |
||
|
35506H
|
35506H
90560-20025 Spacer (For Manual Valve Lever)[08.2005 - 08.2008] GSE2# |
90560-20025 |
from US $1.62 |
||
|
35556
|
35556
35556-60020 Shaft, Parking Lock Pawl[08.2005 - 08.2008] GSE2# |
35556-60020 |
from US $5.10 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[08.2005 - 08.2008] GSE2# |
90523-08021 |
US $1.46 |
||
|
35557
|
35557
35590-50010 Pawl, Parking Lock[08.2005 - 08.2008] GSE21,25 |
35590-50010 |
US $66.83 |
||
| replacement | |||||
|
35557
|
35557
35590-50030 Pawl, Parking Lock[08.2005 - 08.2008] GSE21,25 |
35590-50030 |
US $60.72 |
||
|
35557A
|
35557A
90949-03130 Spring, Torsion (For Parking Lock Pawl)[08.2005 - 08.2008] GSE21,25 |
90949-03130 |
US $1.60 |
||
|
35561
|
35561
35561-60030 Shaft, Manual Valve Lever[08.2005 - 08.2008] GSE25 |
35561-60030 |
from US $31.25 |
||
|
35573
|
35573
35573-30060 Lever, Transmission Control Shaft, Lh[08.2005 - 08.2008] GSE25 |
35573-30060 |
US $6.41 |
||
|
35595
|
35595
35595-50010 Bracket, Parking Lock Pawl[08.2005 - 08.2008] GSE2# |
35595-50010 |
US $7.72 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
