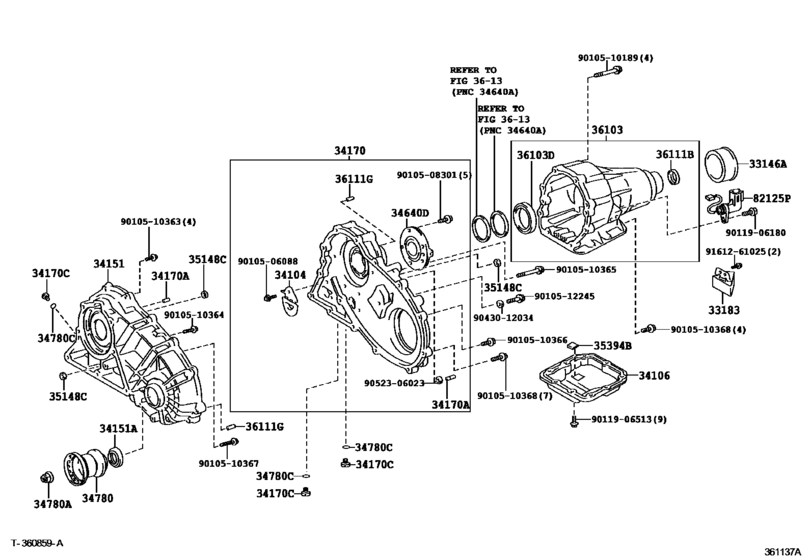

Transfer Case & Extension Housing ([08.2005 - ] (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.2005 - 08.2008] GSE25 |
33146-30020 |
from US $17.74 |
||
|
33183
|
33183
33183-30070 Damper, Transfer Dynamic[08.2005 - 08.2008] GSE25 |
33183-30070 |
US $115.02 |
||
|
34104
|
34104
34104-30010 Valve Sub-Assy, Transfer Baffle[08.2005 - 08.2008] GSE25 |
34104-30010 |
US $3.20 |
||
|
34106
|
34106
34161-30010 Pan Sub-Assy, Transfer Oil[08.2005 - 08.2008] GSE25 |
34161-30010 |
US $25.19 |
||
|
34151
|
34151
34151-30011 Case, Transfer Chain, Front[08.2005 - 08.2008] GSE25 |
34151-30011 |
US $404.77 |
||
|
34151A
|
34151A
90311-42029 Seal, Oil (For Transfer Chain Case)[08.2005 - 08.2008] GSE25 |
90311-42029 |
from US $8.42 |
||
|
34170
|
34170
34170-30010 Case Assy, Transfer Chain, Rear[08.2005 - 08.2008] GSE25 |
34170-30010 |
US $283.92 |
||
|
34170A
|
34170A
90249-10191 Pin, Straight (For Transfer Chain Case)[08.2005 - 08.2008] GSE25 長さ＝２１，外径＝１０ |
90249-10191 |
US $1.75 |
||
|
34170A
|
34170A
90250-10007 Pin, Straight (For Transfer Chain Case)[08.2005 - 08.2008] GSE25 長さ＝２３，外径＝１０ |
90250-10007 |
US $1.75 |
||
|
34170C
|
34170C
90341-08001 Plug, Transaxle Case, No.1[08.2005 - 08.2008] GSE25 |
90341-08001 |
from US $1.48 |
||
|
34640D
|
34640D
34640-30010 Support Assy, Transfer Center[08.2005 - 08.2008] GSE25 |
34640-30010 |
US $152.88 |
||
|
34780
|
34780
34780-30040 Yoke Assy, Flange[08.2005 - 08.2008] GSE25 |
34780-30040 |
US $57.66 |
||
|
34780A
|
34780A
90179-22018 Nut (For Flange Yoke)[08.2005 - 08.2008] GSE25 |
90179-22018 |
US $3.67 |
||
|
34780C
|
34780C
90301-06196 O Ring, Transaxle Case, No.1[08.2005 - 08.2008] GSE25 |
90301-06196 |
from US $2.36 |
||
|
35148C
|
35148C
35148-12010 Gasket, Governor Apply, No.2[08.2005 - 08.2008] GSE25 |
35148-12010 |
US $5.23 |
||
|
35394B
|
35394B
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2005 - 08.2008] GSE25 |
35394-30011 |
from US $5.43 |
||
|
36103
|
36103
36101-22010 Case Sub-Assy, Transfer[08.2005 - 08.2008] GSE25 |
36101-22010 |
US $688.69 |
||
|
36103D
|
36103D
90363-60007 Bearing (For Transfer Case)[08.2005 - 08.2008] GSE25 外径＝８５ |
90363-60007 |
US $15.03 |
||
|
36111B
|
36111B
90311-40001 Seal, Oil(For Extension Housing)[08.2005 - 08.2008] GSE25 |
90311-40001 |
from US $7.17 |
||
|
36111G
|
36111G
90250-10007 Pin, Straight (For Transfer Chain Case)[08.2005 - 08.2008] GSE25 長さ＝２３，外径＝１０ |
90250-10007 |
US $1.75 |
||
|
36111G
|
36111G
90250-13003 Pin, Straight (For Transfer Chain Case)[08.2005 - 08.2008] GSE25 長さ＝１８，外径＝１３ |
90250-13003 |
US $2.04 |
||
|
82125P
|
82125P
82125-30440 Wire, Transmission[08.2005 - 08.2008] GSE25 |
82125-30440 |
US $7.57 |
||
|
9010506088
|
9010506088
90105-06088 New Genuine Part |
90105-06088 |
US $0.87 |
||
|
9010508301
|
9010508301
90105-08301 Bolt (For Front Oil Pump Setting) |
90105-08301 |
US $1.10 |
||
|
9010510189
|
9010510189
90105-10189 New Genuine Part |
90105-10189 |
US $2.48 |
||
|
9010510363
|
9010510363
90105-10363 New Genuine Part |
90105-10363 |
US $1.75 |
||
|
9010510364
|
9010510364
90105-10364 New Genuine Part |
90105-10364 |
US $1.75 |
||
|
9010510365
|
9010510365
90105-10365 New Genuine Part |
90105-10365 |
US $2.48 |
||
|
9010510366
|
9010510366
90105-10366 New Genuine Part |
90105-10366 |
US $1.65 |
||
|
9010510367
|
9010510367
90105-10367 New Genuine Part |
90105-10367 |
US $2.04 |
||
|
9010510368
|
9010510368
90105-10368 New Genuine Part |
90105-10368 |
US $1.46 |
||
|
9010512245
|
9010512245
90105-12245 New Genuine Part |
90105-12245 |
US $2.48 |
||
|
9011906180
|
9011906180
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9011906513
|
9011906513
90119-06513 Bolt (For Automatic Transmission Oil Pan) |
90119-06513 |
US $1.61 |
||
|
9043012034
|
9043012034
90430-12034 New Genuine Part |
90430-12034 |
US $1.16 |
||
|
9052306023
|
9052306023
90523-06023 Ring, E (For Throttle Valve) |
90523-06023 |
US $1.46 |
||
|
9161261025
|
9161261025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
