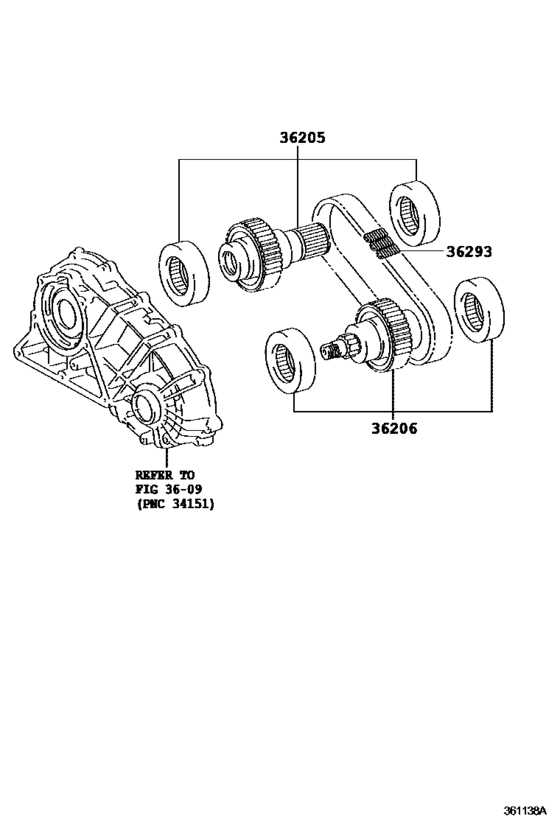

Transfer Gear ([08.2005 - ] (0508- )GSE25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE25
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36205
|
36205
36205-30030 Sprocket Sub-Assy, Transfer Drive[08.2005 - 08.2008] GSE25 |
36205-30030 |
US $87.36 |
||
|
36206
|
36206
36206-30030 Sleeve Sub-Assy, Trnsfr Fr Drive Clutch[08.2005 - 08.2008] GSE25 |
36206-30030 |
US $228.59 |
||
|
36293
|
36293
36293-30020 Chain, Transfer Front Drive[08.2005 - 08.2008] GSE25 |
36293-30020 |
US $276.64 |
