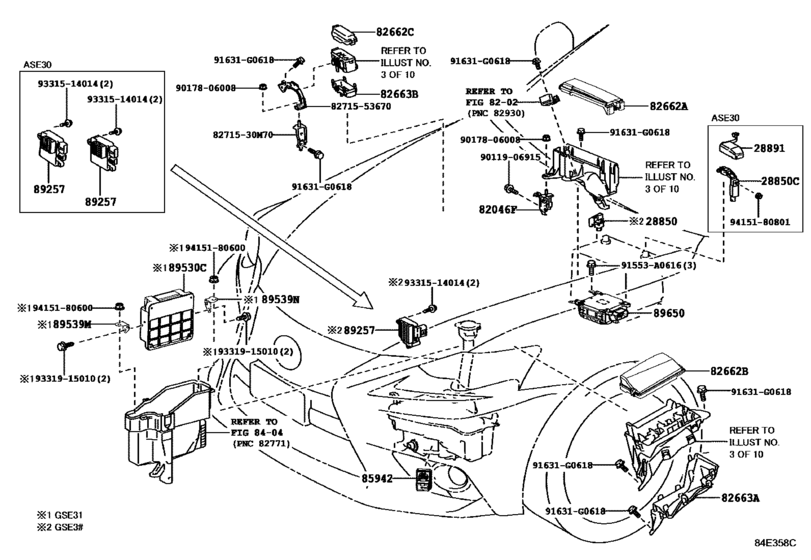

Switch & Relay & Computer ([04.2013 - ] ｴﾝｼﾞﾝﾙｰﾑ (1304- )ASE30,GSE3#) Diagram Toyota LEXUS IS
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- GSE30
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2013
- To
- 08.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28850
|
28850
28850-31020 Sensor Assy, Battery Current[04.2013 - 08.2015] 2GRFSE,4GRFSE..GSE3# |
28850-31020 |
US $91.76 |
||
|
82046F
|
82046F
82046-24080 Wire Sub-Assy, Body Ground, No.1[08.2014 - 08.2015] GSE3# |
82046-24080 |
US $28.83 |
||
|
82046F
|
82046F
82046-30110 Wire Sub-Assy, Body Ground, No.1[04.2013 - 07.2014] GSE3# |
82046-30110 |
US $26.50 |
||
|
82662A
|
82662A
82662-24110 Cover, Relay Block, Upper, No.1[05.2014 - 08.2015] GSE3# |
82662-24110 |
US $19.07 |
||
|
82662A
|
82662A
82662-53240 Cover, Relay Block, Upper, No.1[04.2013 - 05.2014] GSE3# |
82662-53240 |
US $19.07 |
||
|
82662B
|
82662B
82662-53270 Cover, Relay Block, Upper, No.2[04.2013 - 08.2015] GSE3# |
82662-53270 |
from US $25.33 |
||
|
82662C
|
82662C
82662-24150 Cover, Relay Block, Upper, No.3[05.2014 - 08.2015] GSE3# |
82662-24150 |
US $17.33 |
||
|
82662C
|
82662C
82662-53290 Cover, Relay Block, Upper, No.3[04.2013 - 05.2014] GSE3# |
82662-53290 |
US $9.17 |
||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[04.2013 - 08.2015] GSE3# |
82663-30320 |
from US $28.83 |
||
|
82663B
|
82663B
82663-30340 Cover, Relay Block, Lower, No.2[04.2013 - 08.2015] AVE30,GSE3# |
82663-30340 |
US $8.30 |
||
|
85942
|
85942
85942-53020 Relay, Headlamp Cleaner Control[04.2013 - 08.2015] GSE3# ヘッドランプクリーナ−有り |
85942-53020 |
from US $66.73 |
||
|
89257
|
89257
89257-30100 Computer, Cooling Fan[04.2013 - 08.2015] GSE30,35 |
89257-30100 |
US $183.46 |
||
|
89650
|
89650
89650-53130 Computer Assy, Power Steering[04.2013 - 04.2015] GSE3# |
89650-53130 |
US $637.73 |
||
| replacement | |||||
|
89650
|
89650
89650-53131 Computer Assy, Power Steering[04.2013 - 04.2015] GSE3# |
89650-53131 |
US $637.73 |
||
|
89650
|
89650
89650-53131 Computer Assy, Power Steering[05.2015 - 08.2015] GSE3# |
89650-53131 |
US $637.73 |
||
|
89650
|
89650
89650-53140 Computer Assy, Power Steering[04.2013 - 04.2015] GSE3# ｖｅｒｓｉｏｎ Ｌ＆ＡＶＳ−有り; GSE30,35 Ｆ ＳＰＯＲＴ＆ＡＶＳ−有り |
89650-53140 |
US $637.73 |
||
|
89650
|
89650
89650-53141 Computer Assy, Power Steering[05.2015 - 08.2015] GSE3# ｖｅｒｓｉｏｎ Ｌ＆ＡＶＳ−有り; GSE30,35 Ｆ ＳＰＯＲＴ＆ＡＶＳ−有り; GSE30,35 Ｆ ＳＰＯＲＴＸＬｉｎｅ＆ＡＶＳ−有り |
89650-53141 |
US $637.73 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
8271530M70
|
8271530M70
82715-30M70
Bracket,wiring Harness Clamp
|
82715-30M70 |
— | ||
|
8271553670
|
8271553670
82715-53670 Bracket,wiring Harness Clamp |
82715-53670 |
US $12.96 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
US $0.96 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
||
