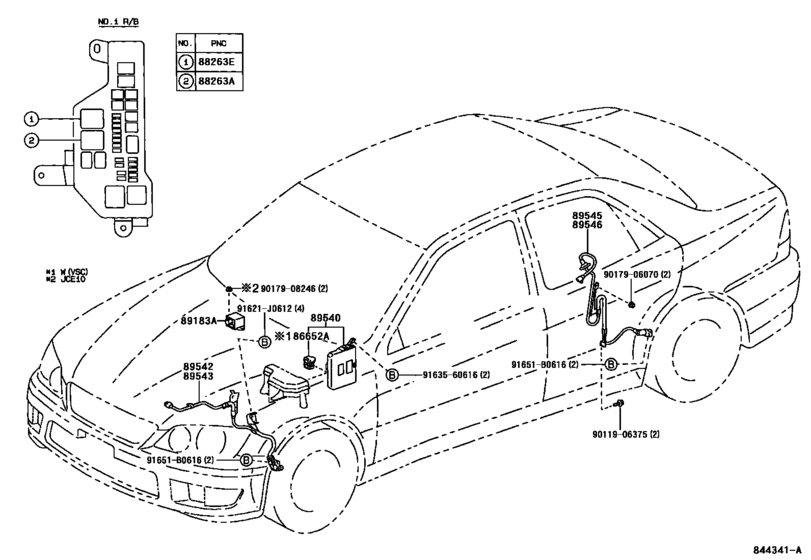

Abs & Vsc ([07.2001 - ] (0107- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-51010 Buzzer Assy[07.2001 -] JCE10..ATM |
86652-51010 |
US $35.67 |
||
|
88263A
|
88263A
88263-24020 Relay, Skid Control[05.2000 - 07.2001] JCE10 |
88263-24020 |
from US $44.48 |
||
|
88263E
|
88263E
88263-24030 Relay, Skid Control[05.2000 - 07.2001] JCE10 |
88263-24030 |
from US $46.84 |
||
|
89183A
|
89183A
89183-30060 Sensor, Yawrate[07.2001 -] JCE10..ATM |
89183-30060 |
US $1,116.75 |
||
|
89540
|
89540
89540-53050 Computer Assy, Skid ControlSKID CONTROL [05.2000 - 07.2001] JCE10 |
89540-53050 |
US $1,863.68 |
||
|
89540
|
89540
89540-53150 Computer Assy, Skid ControlSKID CONTROL [07.2001 -] JCE10 |
89540-53150 |
US $1,863.68 |
||
|
89540
|
89540
89540-53170 Computer Assy, Skid ControlSKID CONTROL [07.2001 -] JCE10..ATM W(VSC) |
89540-53170 |
US $3,479.84 |
||
|
89542
|
89542
89542-51010 Sensor, Speed, Front Rh[05.2000 - 07.2001] JCE10 |
89542-51010 |
from US $242.46 |
||
|
89543
|
89543
89543-53010 Sensor, Speed, Front Lh[05.2000 - 07.2001] JCE10 |
89543-53010 |
from US $242.46 |
||
|
89545
|
89545
89545-30060 Sensor, Speed, Rear Rh[07.2001 -] JCE10 |
89545-30060 |
US $303.80 |
||
|
89545
|
89545
89545-51010 Sensor, Speed, Rear Rh[05.2000 - 07.2001] JCE10 |
89545-51010 |
US $292.66 |
||
| replacement | |||||
|
89545
|
89545
89545-30060 Sensor, Speed, Rear Rh[05.2000 - 07.2001] JCE10 |
89545-30060 |
US $303.80 |
||
|
89546
|
89546
89546-30060 Sensor, Speed, Rear Lh[07.2001 -] JCE10 |
89546-30060 |
US $284.79 |
||
|
89546
|
89546
89546-51010 Sensor, Speed, Rear Lh[05.2000 - 07.2001] JCE10 |
89546-51010 |
US $292.66 |
||
| replacement | |||||
|
89546
|
89546
89546-30060 Sensor, Speed, Rear Lh[05.2000 - 07.2001] JCE10 |
89546-30060 |
US $284.79 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908246
|
9017908246
90179-08246
NUT
|
90179-08246 |
— | ||
| replacement | |||||
|
9017908246
|
9017908246
90179-08068 NUT |
90179-08068 |
from US $0.74 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
