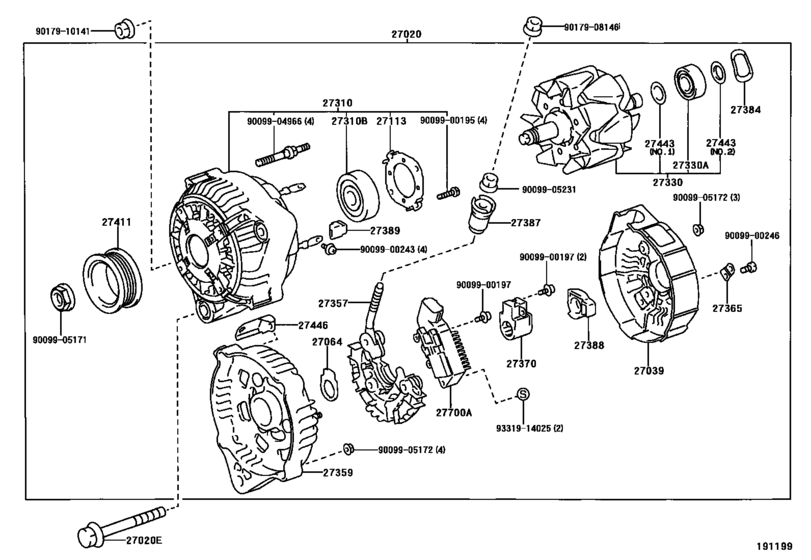

Alternator ([05.2000 - 07.2001] 12V 100A (0005-0107)) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-46300 Alternator Assy[05.2000 - 07.2001] 2JZGE..JCE10 12V 100A |
27060-46300 |
US $1,820 |
||
|
27020E
|
27020E
91512-61050 Bolt(For Alternator)[05.2000 - 07.2001] 2JZGE..JCE10 |
91512-61050 |
US $1.92 |
||
|
27039
|
27039
27039-46170
Cover, Alternator Rear End
[05.2000 - 01.2001] 2JZGE..JCE10 |
27039-46170 |
— | ||
|
27039
|
27039
27039-46310
Cover, Alternator Rear End
[01.2001 - 07.2001] 2JZGE..JCE10 |
27039-46310 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[05.2000 - 07.2001] 2JZGE..JCE10 |
27064-42010 |
from US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[05.2000 - 07.2001] 2JZGE..JCE10 |
27312-42010 |
— | ||
|
27310
|
27310
27310-46160
Frame Assy, Drive End, Alternator
[05.2000 - 07.2001] 2JZGE..JCE10 |
27310-46160 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[05.2000 - 07.2001] 2JZGE..JCE10 |
90099-10192 |
from US $15.03 |
||
|
27330
|
27330
27330-62180
Rotor Assy, Alternator
[05.2000 - 07.2001] 2JZGE..JCE10 |
27330-62180 |
— | ||
|
27330A
|
27330A
90099-10194 Bearing(For Alternator Rotor)[05.2000 - 07.2001] 2JZGE..JCE10 |
90099-10194 |
from US $8.56 |
||
|
27357
|
27357
27357-46310
Holder, Alternator, W/rectifier
[05.2000 - 07.2001] 2JZGE..JCE10 |
27357-46310 |
— | ||
|
27359
|
27359
27359-46100
Frame, Alternator Rectifier End
[05.2000 - 07.2001] 2JZGE..JCE10 |
27359-46100 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[05.2000 - 07.2001] 2JZGE..JCE10 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[05.2000 - 07.2001] 2JZGE..JCE10 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[05.2000 - 07.2001] 2JZGE..JCE10 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42040
Insulator, Terminal
[05.2000 - 07.2001] 2JZGE..JCE10 |
27387-42040 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[05.2000 - 07.2001] 2JZGE..JCE10 |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[05.2000 - 07.2001] 2JZGE..JCE10 |
27389-42010 |
— | ||
|
27411
|
27411
27411-46080
Pulley, Alternator
[05.2000 - 07.2001] 2JZGE..JCE10 |
27411-46080 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.2000 - 07.2001] 2JZGE..JCE10 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-46330
Clip, Alternator Cord
[05.2000 - 07.2001] 2JZGE..JCE10 |
27446-46330 |
— | ||
|
27700A
|
27700A
27700-20050 Regulator Assy, Generator[05.2000 - 08.2000] 2JZGE..JCE10 |
27700-20050 |
US $262.08 |
||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[08.2000 - 07.2001] 2JZGE..JCE10 |
27700-46060 |
US $279.55 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
