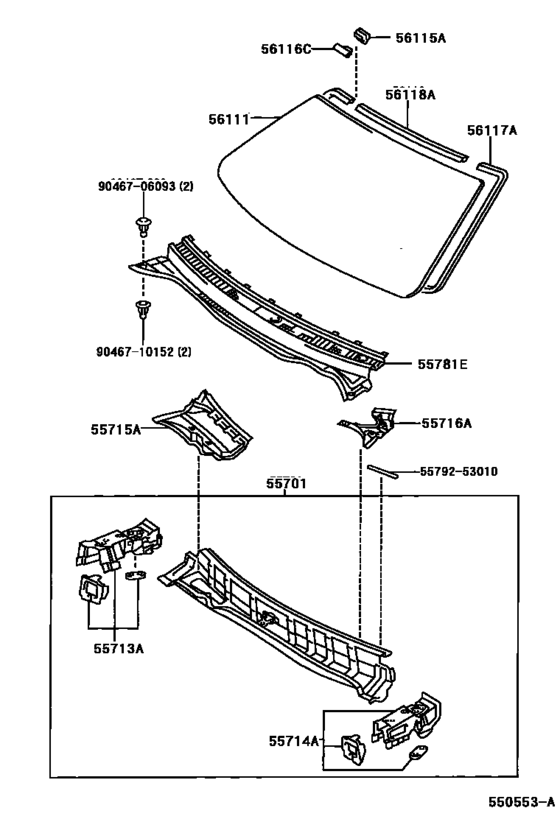

Cowl Panel & Windshield Glass ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55701
|
55701
55700-53040 Panel Sub-Assy, CowlCOWL [05.2000 - 07.2001] JCE10 |
55700-53040 |
US $500.86 |
||
|
55713A
|
55713A
55713-53900 Panel, Cowl Top Side, Rh[05.2000 - 07.2001] JCE10 |
55713-53900 |
US $47.47 |
||
|
55714A
|
55714A
55714-53900 Panel, Cowl Top Side, Lh[05.2000 - 07.2001] JCE10 |
55714-53900 |
US $47.47 |
||
|
55715A
|
55715A
55715-53020 Brace, Cowl Top To Apron, RhCOWL TOP TO APRON, RH [05.2000 - 07.2001] JCE10 |
55715-53020 |
US $51.72 |
||
|
55716A
|
55716A
55716-53020 Brace, Cowl Top To Apron, LhCOWL TOP TO APRON, LH [05.2000 - 07.2001] JCE10 |
55716-53020 |
US $27.78 |
||
|
55781E
|
55781E
55708-53030
Louver Sub-Assy, Cowl Top Ventilator
[05.2000 - 07.2001] JCE10 |
55708-53030 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-53031
Louver Sub-Assy, Cowl Top Ventilator
[05.2000 - 07.2001] JCE10 |
55708-53031 |
— | ||
|
55781E
|
55781E
55708-53031
Louver Sub-Assy, Cowl Top Ventilator
[07.2003 -] JCE10 |
55708-53031 |
— | ||
|
56111
|
56111
56111-53041
Glass, Windshield
[05.2000 - 07.2001] JCE10 *TL,T=4.7,GREEN |
56111-53041 |
— | ||
|
56111
|
56111
56111-53042 Glass, WindshieldWINDSHIELD [07.2001 -] JCE10 *TL,T=4.7,GREEN |
56111-53042 |
US $1,342.43 |
||
|
56111
|
56111
56111-53070
Glass, Windshield
[07.2001 - 01.2003] JCE10 *EHTL,T=4.7,GREEN |
56111-53070 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-53071 Glass, WindshieldWINDSHIELD [07.2001 - 01.2003] JCE10 *EHTL,T=4.7,GREEN |
56111-53071 |
US $1,587.04 |
||
|
56111
|
56111
56111-53071 Glass, WindshieldWINDSHIELD [01.2003 -] JCE10 *EHTL,T=4.7,GREEN |
56111-53071 |
US $1,587.04 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[05.2000 - 07.2001] JCE10 |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[05.2000 - 07.2001] JCE10 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-53010
Dam, Window Glass Adhesive
[05.2000 - 07.2001] JCE10 |
56117-53010 |
— | ||
| replacement | |||||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[05.2000 - 07.2001] JCE10 |
56117-64010 |
from US $22.50 |
||
|
56118A
|
56118A
56118-53010
Dam, Window Glass Adhesive, No.2
[05.2000 - 07.2001] JCE10 |
56118-53010 |
— | ||
| replacement | |||||
|
56118A
|
56118A
56117-52040
Dam, Window Glass Adhesive
[05.2000 - 07.2001] JCE10 |
56117-52040 |
— | ||
|
5579253010
|
5579253010
55792-53010 Cover, Wiper Motor Service Hole |
55792-53010 |
US $1.16 |
||
|
9046706093
|
9046706093
90467-06093 CLIP |
90467-06093 |
US $3.20 |
||
|
9046710152
|
9046710152
90467-10152 CLIP |
90467-10152 |
US $1.76 |
||
