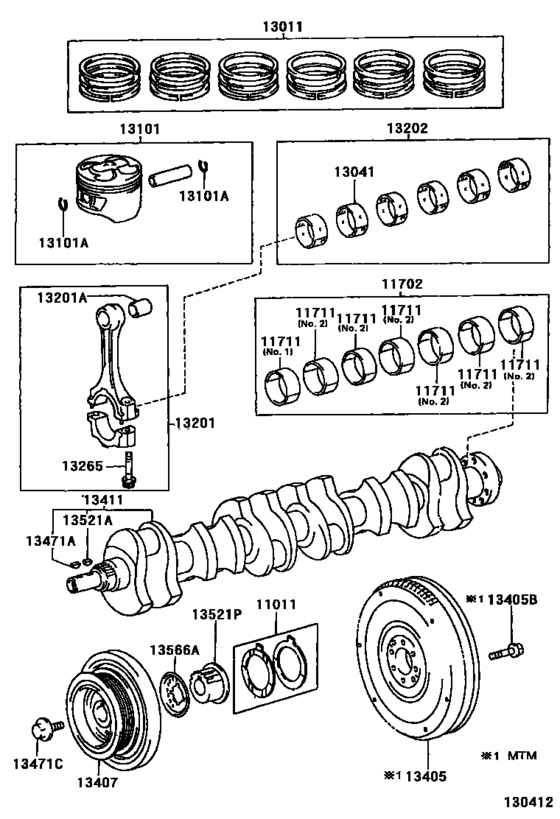

Crankshaft & Piston ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-46030 Washer Set, Crankshaft Thrust[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11011-46030 |
from US $32.07 |
||
|
11702
|
11702
11704-46030 Bearing Set, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 U/S 0.25 |
11704-46030 |
US $291.78 |
||
|
11702
|
11702
11704-46040 Bearing Set, Crankshaft[07.2001 - 07.2005] 2JZGE..JCE10 U/S 0.25 |
11704-46040 |
US $387.88 |
||
|
11711
|
11711
11071-46020-01 Bearing, Crankshaft[05.2000 - 06.2001] 2JZGE..JCE10 MARK 1,NO.1,REFER R/M |
11071-46020-01 |
US $58.98 |
||
|
11711
|
11711
11071-46020-02 Bearing, Crankshaft[05.2000 - 06.2001] 2JZGE..JCE10 MARK 2,NO.1,REFER R/M |
11071-46020-02 |
US $58.98 |
||
|
11711
|
11711
11071-46020-03 Bearing, Crankshaft[05.2000 - 06.2001] 2JZGE..JCE10 MARK 3,NO.1,REFER R/M |
11071-46020-03 |
US $58.98 |
||
|
11711
|
11711
11071-46020-04 Bearing, Crankshaft[05.2000 - 06.2001] 2JZGE..JCE10 MARK 4,NO.1,REFER R/M |
11071-46020-04 |
US $58.98 |
||
|
11711
|
11711
11071-46020-05 Bearing, Crankshaft[05.2000 - 06.2001] 2JZGE..JCE10 MARK 5,NO.1,REFER R/M |
11071-46020-05 |
US $58.98 |
||
|
11711
|
11711
11071-46030-01 Bearing, Crankshaft[06.2001 - 07.2001] 2JZGE..JCE10 MARK 1,NO.1,REFER R/M |
11071-46030-01 |
US $44.06 |
||
|
11711
|
11711
11071-46030-02 Bearing, Crankshaft[06.2001 - 07.2001] 2JZGE..JCE10 MARK 2,NO.1,REFER R/M |
11071-46030-02 |
US $44.06 |
||
|
11711
|
11711
11071-46030-03 Bearing, Crankshaft[06.2001 - 07.2001] 2JZGE..JCE10 MARK 3,NO.1,REFER R/M |
11071-46030-03 |
US $48.05 |
||
|
11711
|
11711
11071-46030-04 Bearing, Crankshaft[06.2001 - 07.2001] 2JZGE..JCE10 MARK 4,NO.1,REFER R/M |
11071-46030-04 |
US $44.06 |
||
|
11711
|
11711
11071-46030-05 Bearing, Crankshaft[06.2001 - 07.2001] 2JZGE..JCE10 MARK 5,NO.1,REFER R/M |
11071-46030-05 |
US $44.06 |
||
|
11711
|
11711
11701-46020-01 Bearing, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 MARK 1,NO.2,REFER R/M |
11701-46020-01 |
from US $21.66 |
||
|
11711
|
11711
11701-46020-02 Bearing, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 MARK 2,NO.2,REFER R/M |
11701-46020-02 |
from US $21.61 |
||
|
11711
|
11711
11701-46020-03 Bearing, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 MARK 3,NO.2,REFER R/M |
11701-46020-03 |
from US $21.45 |
||
|
11711
|
11711
11701-46020-04 Bearing, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 MARK 4,NO.2,REFER R/M |
11701-46020-04 |
from US $24.67 |
||
|
11711
|
11711
11701-46020-05 Bearing, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 MARK 5,NO.2,REFER R/M |
11701-46020-05 |
US $49.36 |
||
|
13011
|
13011
13011-46041 Ring Set, Piston[05.2000 - 07.2001] 2JZGE..JCE10 STD |
13011-46041 |
from US $235.66 |
||
|
13041
|
13041
13041-46013-01 Bearing, Connecting Rod[05.2000 - 06.2001] 2JZGE..JCE10 MARK 1,REFER REPAIR MANUAL |
13041-46013-01 |
from US $17.37 |
||
|
13041
|
13041
13041-46013-02 Bearing, Connecting Rod[05.2000 - 06.2001] 2JZGE..JCE10 MARK 2,REFER REPAIR MANUAL |
13041-46013-02 |
from US $14.27 |
||
|
13041
|
13041
13041-46013-03 Bearing, Connecting Rod[05.2000 - 06.2001] 2JZGE..JCE10 MARK 3,REFER REPAIR MANUAL |
13041-46013-03 |
from US $14.45 |
||
|
13041
|
13041
13041-46013-04 Bearing, Connecting Rod[05.2000 - 06.2001] 2JZGE..JCE10 MARK 4,REFER REPAIR MANUAL |
13041-46013-04 |
US $32.07 |
||
|
13041
|
13041
13041-46013-05 Bearing, Connecting Rod[05.2000 - 06.2001] 2JZGE..JCE10 MARK 5,REFER REPAIR MANUAL |
13041-46013-05 |
US $32.07 |
||
|
13041
|
13041
13041-46020-01 Bearing, Connecting Rod[06.2001 - 07.2001] 2JZGE..JCE10 MARK 1,REFER REPAIR MANUAL |
13041-46020-01 |
US $36.33 |
||
|
13041
|
13041
13041-46020-02 Bearing, Connecting Rod[06.2001 - 07.2001] 2JZGE..JCE10 MARK 2,REFER REPAIR MANUAL |
13041-46020-02 |
US $36.33 |
||
|
13041
|
13041
13041-46020-03 Bearing, Connecting Rod[06.2001 - 07.2001] 2JZGE..JCE10 MARK 3,REFER REPAIR MANUAL |
13041-46020-03 |
US $36.33 |
||
|
13041
|
13041
13041-46020-04 Bearing, Connecting Rod[06.2001 - 07.2001] 2JZGE..JCE10 MARK 4,REFER REPAIR MANUAL |
13041-46020-04 |
US $36.33 |
||
|
13041
|
13041
13041-46020-05 Bearing, Connecting Rod[06.2001 - 07.2001] 2JZGE..JCE10 MARK 5,REFER REPAIR MANUAL |
13041-46020-05 |
US $36.33 |
||
|
13101
|
13101
13101-46081 Piston Sub-Assy, W/pin (STD)[05.2000 - 07.2001] 2JZGE..JCE10 STD |
13101-46081 |
from US $72.27 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[12.2004 -] 2JZGE..JCE10 |
90520-22025 |
from US $1.76 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[05.2000 - 07.2001] 2JZGE..JCE10 |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[05.2000 - 07.2001] 2JZGE..JCE10 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-46061 Rod Sub-Assy, Connecting[05.2000 - 07.2001] 2JZGE..JCE10 |
13201-46061 |
US $186.37 |
||
|
13201A
|
13201A
90999-73128 Bush(For Connecting Rod Small End)[05.2000 - 07.2001] 2JZGE..JCE10 |
90999-73128 |
from US $3.84 |
||
|
13202
|
13202
13204-46023 Connecting Rod Bearing Set (0.25)[05.2000 - 07.2001] 2JZGE..JCE10 U/S 0.25 |
13204-46023 |
US $220.32 |
||
|
13202
|
13202
13204-46030 Bearing Set, Connecting Rod[08.2001 - 07.2005] 2JZGE..JCE10 U/S 0.25 |
13204-46030 |
US $97.75 |
||
|
13265
|
13265
13265-46020 Bolt, Connecting Rod[05.2000 - 07.2001] 2JZGE..JCE10 |
13265-46020 |
US $8 |
||
|
13407
|
13407
13407-46020 Damper Sub-Assy, Crankshaft[05.2000 - 07.2001] 2JZGE..JCE10 |
13407-46020 |
from US $303.80 |
||
|
13411
|
13411
13401-46021
Crankshaft
[05.2000 - 08.2000] 2JZGE..JCE10 |
13401-46021 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-46022 Crankshaft[05.2000 - 08.2000] 2JZGE..JCE10 |
13401-46022 |
US $2,184 |
||
|
13411
|
13411
13401-46022 Crankshaft[08.2000 - 07.2001] 2JZGE..JCE10 |
13401-46022 |
US $2,184 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[05.2000 - 07.2001] 2JZGE..JCE10 |
90280-05005 |
from US $1.23 |
||
|
13471C
|
13471C
90119-18002 Bolt(For Crankshaft Pulley Set)[05.2000 - 07.2001] 2JZGE..JCE10 |
90119-18002 |
US $14.40 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[05.2000 - 07.2001] 2JZGE..JCE10 |
90280-05005 |
from US $1.23 |
||
|
13521P
|
13521P
13521-46040 Pulley, Crankshaft Timing[05.2000 - 07.2001] 2JZGE..JCE10 |
13521-46040 |
from US $69.77 |
||
|
13566A
|
13566A
13566-46010 Guide, Timing Belt[05.2000 - 07.2001] 2JZGE..JCE10 |
13566-46010 |
from US $4.97 |
||
