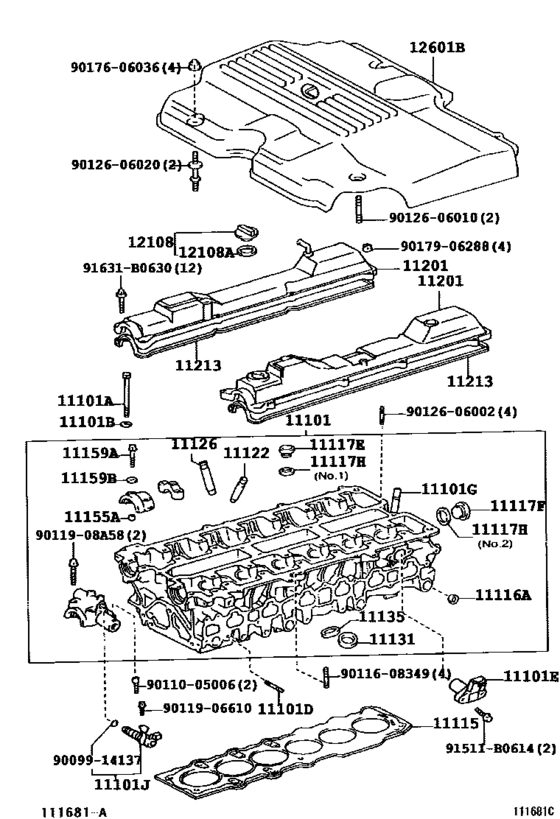

Cylinder Head ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49376 Head Sub-Assy, Cylinder[05.2000 - 07.2001] 2JZGE..JCE10 |
11101-49376 |
US $2,912 |
||
| replacement | |||||
|
11101
|
11101
11101-49377 Head Sub-Assy, Cylinder[05.2000 - 07.2001] 2JZGE..JCE10 |
11101-49377 |
US $2,912 |
||
|
11101
|
11101
11101-49377 Head Sub-Assy, Cylinder[07.2001 - 07.2005] 2JZGE..JCE10 |
11101-49377 |
US $2,912 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[05.2000 - 07.2001] 2JZGE..JCE10 |
90910-02102 |
from US $14.88 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[05.2000 - 07.2001] 2JZGE..JCE10 |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[05.2000 - 07.2001] 2JZGE..JCE10 |
90201-11034 |
from US $0.94 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[10.2001 -] 2JZGE..JCE10 |
90201-11034 |
from US $0.94 |
||
|
11101D
|
11101D
90116-08348 Bolt, Stud(For Water Outlet)[05.2000 - 07.2001] 2JZGE..JCE10 |
90116-08348 |
from US $1.65 |
||
|
11101E
|
11101E
90919-05007 Sensor, Cam Position[05.2000 - 07.2001] 2JZGE..JCE10 |
90919-05007 |
from US $99.16 |
||
|
11101G
|
11101G
90406-17017 Union(For Cylinder Head)[05.2000 - 07.2001] 2JZGE..JCE10 |
90406-17017 |
US $5.07 |
||
|
11101J
|
11101J
15330-46010
Valve Assy, Camshaft Timing Oil Control
[05.2000 - 07.2001] 2JZGE..JCE10 |
15330-46010 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-46011 Valve Assy, Camshaft Timing Oil Control[05.2000 - 07.2001] 2JZGE..JCE10 |
15330-46011 |
from US $108.71 |
||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[05.2000 - 07.2001] 2JZGE..JCE10 |
11115-46045 |
from US $87.01 |
||
|
11116A
|
11116A
96411-42000 Plug, Tight, No.1[05.2000 - 07.2001] 2JZGE..JCE10 |
96411-42000 |
from US $3.20 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[05.2000 - 07.2001] 2JZGE..JCE10 |
90341-24010 |
US $4.72 |
||
|
11117F
|
11117F
90341-36001 Plug, W/head Taper Screw, No.1[05.2000 - 07.2001] 2JZGE..JCE10 |
90341-36001 |
US $5.60 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[05.2000 - 07.2001] 2JZGE..JCE10 NO.1 |
90430-24010 |
US $3.20 |
||
|
11117H
|
11117H
90430-36003 Gasket(For Water Hole)[05.2000 - 07.2001] 2JZGE..JCE10 NO.2 |
90430-36003 |
US $2.08 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11122-74030 |
US $8.80 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[05.2000 - 07.2001] 2JZGE..JCE10 O/S 0.05 |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11122-16020 |
from US $12.46 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[05.2000 - 07.2001] 2JZGE..JCE10 O/S 0.05 |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46020
Seat, Intake Valve
[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11131-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11131-46060 Seat, Intake Valve[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11131-46060 |
US $36.34 |
||
|
11131
|
11131
11131-46060 Seat, Intake Valve[07.2001 - 07.2005] 2JZGE..JCE10 STD |
11131-46060 |
US $36.34 |
||
|
11131
|
11131
11132-46020
Seat, Intake Valve
[05.2000 - 07.2001] 2JZGE..JCE10 O/S 0.03 |
11132-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11132-46060 Seat, Intake Valve[05.2000 - 07.2001] 2JZGE..JCE10 O/S 0.03 |
11132-46060 |
US $34.65 |
||
|
11131
|
11131
11132-46060 Seat, Intake Valve[07.2001 - 07.2005] 2JZGE..JCE10 O/S 0.03 |
11132-46060 |
US $34.65 |
||
|
11135
|
11135
11135-46020 Seat, Exhaust Valve[05.2000 - 07.2001] 2JZGE..JCE10 STD |
11135-46020 |
US $28.54 |
||
|
11135
|
11135
11135-46050 Seat, Exhaust Valve[07.2001 - 07.2005] 2JZGE..JCE10 STD |
11135-46050 |
US $30.05 |
||
|
11135
|
11135
11136-46020 Seat, Exhaust Valve[05.2000 - 07.2001] 2JZGE..JCE10 O/S 0.03 |
11136-46020 |
US $28.54 |
||
|
11135
|
11135
11136-46050 Seat, Exhaust Valve[07.2001 - 07.2005] 2JZGE..JCE10 O/S 0.03 |
11136-46050 |
US $28.54 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[05.2000 - 07.2001] 2JZGE..JCE10 |
90253-11021 |
from US $1.50 |
||
|
11159A
|
11159A
90119-08890 Bolt(For Head To Camshaft Bearing Cap)[05.2000 - 07.2001] 2JZGE..JCE10 |
90119-08890 |
US $2.56 |
||
|
11159B
|
11159B
90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap)[05.2000 - 07.2001] 2JZGE..JCE10 |
90210-08033 |
US $4.48 |
||
|
11201
|
11201
11201-46063 Cover Sub-Assy, Cylinder Head[05.2000 - 05.2001] 2JZGE..JCE10 INTAKE SIDE |
11201-46063 |
US $294.11 |
||
| replacements | |||||
|
11201
|
11201
11201-46064 Cover Sub-Assy, Cylinder Head[05.2000 - 05.2001] 2JZGE..JCE10 INTAKE SIDE |
11201-46064 |
US $306.60 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[05.2000 - 05.2001] 2JZGE..JCE10 INTAKE SIDE |
12204-46031 |
from US $24.34 |
||
|
11201
|
11201
11201-46064 Cover Sub-Assy, Cylinder Head[05.2001 - 07.2001] 2JZGE..JCE10 INTAKE SIDE |
11201-46064 |
US $306.60 |
||
|
11201
|
11201
11202-46033 Cover Sub-Assy, Cylinder Head[05.2000 - 07.2001] 2JZGE..JCE10 EXHAUST SIDE |
11202-46033 |
US $306.60 |
||
|
11213
|
11213
11213-46030 Gasket, Cylinder Head Cover (Intake side)[05.2000 - 07.2001] 2JZGE..JCE10 INTAKE SIDE |
11213-46030 |
from US $16.01 |
||
|
11213
|
11213
11214-46011 Gasket, Cylinder Head Cover (Exhaust side)[05.2000 - 07.2001] 2JZGE..JCE10 EXHAUST SIDE |
11214-46011 |
from US $19.79 |
||
|
12108
|
12108
12180-46030 Cap Sub-Assy, Oil FillerOIL FILLER [05.2000 - 07.2001] 2JZGE..JCE10 |
12180-46030 |
US $13.83 |
||
| replacement | |||||
|
12108
|
12108
12180-46031 Cap Sub-Assy, Oil FillerOIL FILLER [05.2000 - 07.2001] 2JZGE..JCE10 |
12180-46031 |
from US $15.50 |
||
|
12108
|
12108
12180-46031 Cap Sub-Assy, Oil FillerOIL FILLER [10.2001 -] 2JZGE..JCE10 |
12180-46031 |
from US $15.50 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[05.2000 - 07.2001] 2JZGE..JCE10 |
12195-20020 |
from US $2.93 |
||
|
12601B
|
12601B
12601-46030 Cover Sub-Assy, Engine, No.1ENGINE, NO.1 [05.2000 - 07.2001] 2JZGE..JCE10 |
12601-46030 |
US $238.78 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.40 |
||
|
9011908A58
|
9011908A58
90119-08A58 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
90119-08A58 |
US $1.60 |
||
|
9009914137
|
9009914137
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.22 |
||
|
9011005006
|
9011005006
90110-05006 Bolt |
90110-05006 |
US $0.96 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $1.92 |
||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.40 |
||
|
9012606010
|
9012606010
90126-06010 Bolt, Stud(For Oil Pan) |
90126-06010 |
US $1.22 |
||
|
9012606020
|
9012606020
90126-06020 New Genuine Part |
90126-06020 |
US $5.77 |
||
|
9017606036
|
9017606036
90176-06036 NUT |
90176-06036 |
from US $0.92 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
