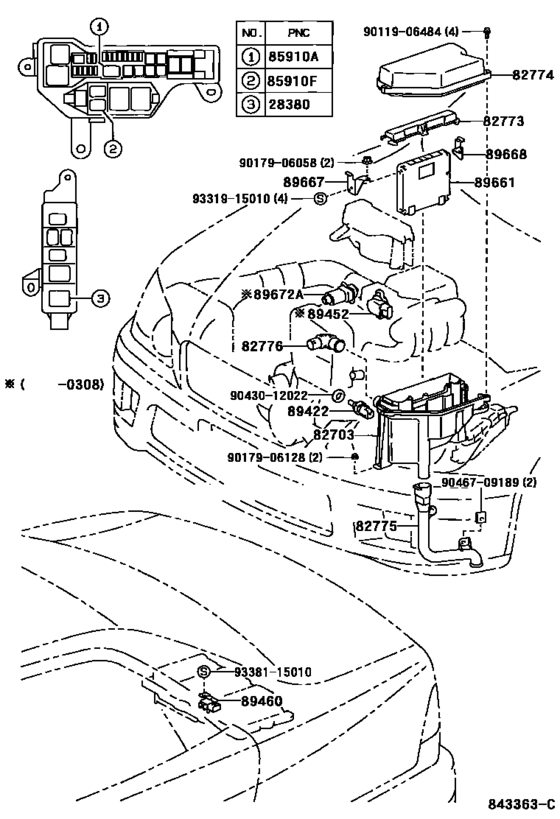

Electronic Fuel Injection System ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[05.2000 - 07.2001] 2JZGE..JCE10 |
90987-03003 |
from US $24.14 |
||
|
82703
|
82703
82703-30010 Box Sub-Assy, Engine Room Ecu[05.2000 - 07.2001] JCE10 |
82703-30010 |
US $145.60 |
||
|
82703
|
82703
82703-53010 Box Sub-Assy, Engine Room EcuENGINE ROOM ECU [07.2001 -] JCE10 |
82703-53010 |
US $182 |
||
|
82773
|
82773
82773-30010 Hood, Engine Room Ecu[05.2000 - 07.2001] JCE10 |
82773-30010 |
US $17.76 |
||
|
82774
|
82774
82774-30010 Cover, Engine Room Ecu[05.2000 - 07.2001] JCE10 |
82774-30010 |
US $74.26 |
||
|
82774
|
82774
82774-30040 Cover, Engine Room Ecu[07.2001 -] JCE10 |
82774-30040 |
US $84.91 |
||
|
82775
|
82775
82775-51020 Duct, Engine Room Ecu Inlet[07.2001 -] JCE10 |
82775-51020 |
US $26.21 |
||
|
82775
|
82775
82775-53010 Duct, Engine Room Ecu Inlet[05.2000 - 07.2001] JCE10 |
82775-53010 |
US $20.09 |
||
|
82776
|
82776
82776-53010 Duct, Engine Room Ecu Outlet[05.2000 - 07.2001] JCE10 |
82776-53010 |
US $15 |
||
|
82776
|
82776
82776-53020
Duct, Engine Room Ecu Outlet
[07.2001 -] JCE10 |
82776-53020 |
— | ||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2001] JCE10 |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2001] JCE10 |
90987-02012 |
from US $27.85 |
||
|
89422
|
89422
89422-30030 Sensor, Water Temperature (For E.f.i.)[05.2000 - 07.2001] JCE10 |
89422-30030 |
from US $47.92 |
||
|
89452
|
89452
89452-30150 Sensor, Throttle Position (For E.f.i.)[05.2000 - 07.2001] JCE10 |
89452-30150 |
from US $125.17 |
||
|
89460
|
89460
89460-53010 Sensor Assy, Vapor PressureVAPOR PRESSURE [05.2000 - 07.2001] JCE10 |
89460-53010 |
US $189.28 |
||
|
89661
|
89661
89661-53130
Computer, Engine Control
[05.2000 - 09.2000] JCE10 |
89661-53130 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-53133
Computer, Engine Control
[05.2000 - 09.2000] JCE10 |
89661-53133 |
— | ||
|
89661
|
89661
89661-53131 Computer, Engine Control[09.2000 - 01.2001] JCE10 |
89661-53131 |
US $2,052.96 |
||
| replacement | |||||
|
89661
|
89661
89661-53133
Computer, Engine Control
[09.2000 - 01.2001] JCE10 |
89661-53133 |
— | ||
|
89661
|
89661
89661-53132 Computer, Engine Control[01.2001 - 07.2001] JCE10 |
89661-53132 |
US $2,052.96 |
||
| replacement | |||||
|
89661
|
89661
89661-53133
Computer, Engine Control
[01.2001 - 07.2001] JCE10 |
89661-53133 |
— | ||
|
89661
|
89661
89661-53300
Computer, Engine Control
[07.2001 - 02.2002] JCE10..SED..ATM |
89661-53300 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-53302
Computer, Engine Control
[07.2001 - 02.2002] JCE10..SED..ATM |
89661-53302 |
— | ||
|
89661
|
89661
89661-53301
Computer, Engine Control
[02.2002 - 08.2002] JCE10..SED..ATM |
89661-53301 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-53302
Computer, Engine Control
[02.2002 - 08.2002] JCE10..SED..ATM |
89661-53302 |
— | ||
|
89661
|
89661
89661-53440
Computer, Engine Control
[08.2004 -] JCE10..SED..ATM |
89661-53440 |
— | ||
|
89661
|
89661
89661-53480
Computer, Engine Control
[08.2002 - 08.2003] JCE10..SED..ATM |
89661-53480 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-53530
Computer, Engine Control
[08.2002 - 08.2003] JCE10..SED..ATM |
89661-53530 |
— | ||
|
89661
|
89661
89661-53530
Computer, Engine Control
[08.2003 - 08.2004] JCE10..SED..ATM |
89661-53530 |
— | ||
|
89667
|
89667
89667-30240 Bracket, Engine Control Computer[05.2000 - 07.2001] JCE10 |
89667-30240 |
US $8.88 |
||
|
89667
|
89667
89667-30280 Bracket, Engine Control Computer[07.2001 -] JCE10 |
89667-30280 |
US $6.99 |
||
|
89668
|
89668
89668-30200 Bracket, Engine Control Computer, No.2[05.2000 - 07.2001] JCE10 |
89668-30200 |
US $12.23 |
||
|
89668
|
89668
89668-30230 Bracket, Engine Control Computer, No.2[07.2001 -] JCE10 |
89668-30230 |
US $8.15 |
||
|
89672A
|
89672A
89672-30020 Motor, Throttle Control[05.2000 - 07.2001] JCE10 |
89672-30020 |
US $323.23 |
||
|
9011906484
|
9011906484
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
| replacement | |||||
|
9011906484
|
9011906484
90119-06278 BOLT |
90119-06278 |
US $1.28 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9043012022
|
9043012022
90430-12022 Gasket(For Manifold Plug) |
90430-12022 |
US $2.56 |
||
|
9046709189
|
9046709189
90467-09189 Clip(For Rear Bumper Retainer) |
90467-09189 |
from US $1.70 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
