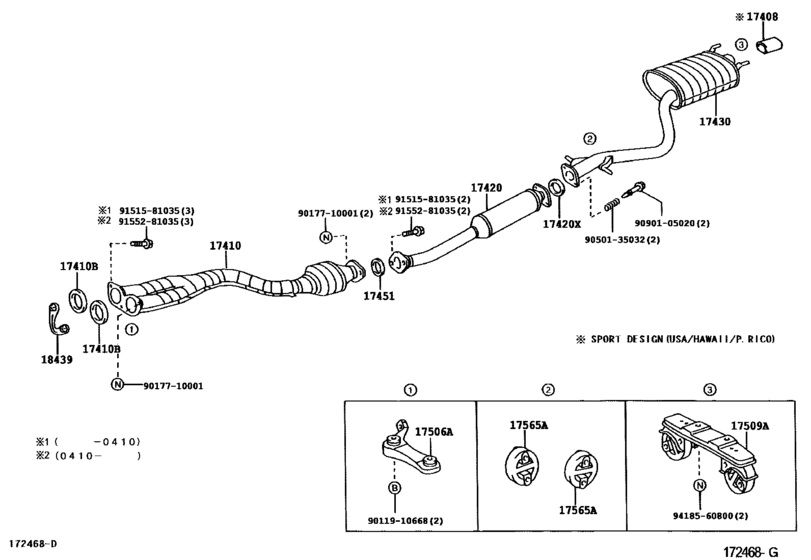

Exhaust Pipe ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17408
|
17408
17408-74030
Baffle Sub Assy, Exhaust Tail Pipe
[01.2003 - 06.2003] 2JZGE..JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO) |
17408-74030 |
— | ||
|
17410
|
17410
17410-46580
Pipe Assy, Exhaust, Front
[05.2000 - 07.2001] 2JZGE..JCE10 *115=TOYOTA/DA1/Y |
17410-46580 |
— | ||
|
17410B
|
17410B
90917-06046 Gasket, Exhaust Pipe[05.2000 - 07.2001] 2JZGE..JCE10 |
90917-06046 |
from US $3.96 |
||
|
17420
|
17420
17420-46510
Pipe Assy, Exhaust, Center
[05.2000 - 07.2001] 2JZGE..JCE10 |
17420-46510 |
— | ||
|
17420
|
17420
17420-46550 Pipe Assy, Exhaust, Center[07.2001 -] 2JZGE..JCE10 |
17420-46550 |
US $334.88 |
||
|
17420X
|
17420X
17451-74060 Gasket, Exhaust Pipe, Center[05.2000 - 07.2001] 2JZGE..JCE10 |
17451-74060 |
from US $21.59 |
||
|
17430
|
17430
17430-46400
Pipe Assy, Exhaust, Tail
[01.2003 - 06.2003] 2JZGE..JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO) |
17430-46400 |
— | ||
|
17430
|
17430
17430-46580 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.2000 - 07.2001] 2JZGE..JCE10 |
17430-46580 |
US $460.82 |
||
|
17430
|
17430
17430-46660 Pipe Assy, Exhaust, Tail[07.2001 -] 2JZGE..JCE10 |
17430-46660 |
US $640.64 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[05.2000 - 07.2001] 2JZGE..JCE10 |
90917-06076 |
from US $5.60 |
||
|
17506A
|
17506A
17506-46140 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.2000 - 07.2001] 2JZGE..JCE10 |
17506-46140 |
US $30.23 |
||
|
17509A
|
17509A
17509-74230 Bracket Sub-Assy, Exhaust Pipe No.4 Support[05.2000 - 07.2001] 2JZGE..JCE10 |
17509-74230 |
US $39.82 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[05.2000 - 07.2001] 2JZGE..JCE10 |
17565-46040 |
from US $13.38 |
||
|
18439
|
18439
18495-46020 Retainer, Exhaust Pipe[05.2000 - 07.2001] 2JZGE..JCE10 |
18495-46020 |
US $10.08 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.08 |
||
|
9017710001
|
9017710001
90177-10001 NUT LOCK |
90177-10001 |
from US $1.19 |
||
|
9050135032
|
9050135032
90501-35032 SPRING COMPRESSION |
90501-35032 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9151581035
|
9151581035
91515-81035 New Genuine Part |
91515-81035 |
US $3.04 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.21 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.90 |
