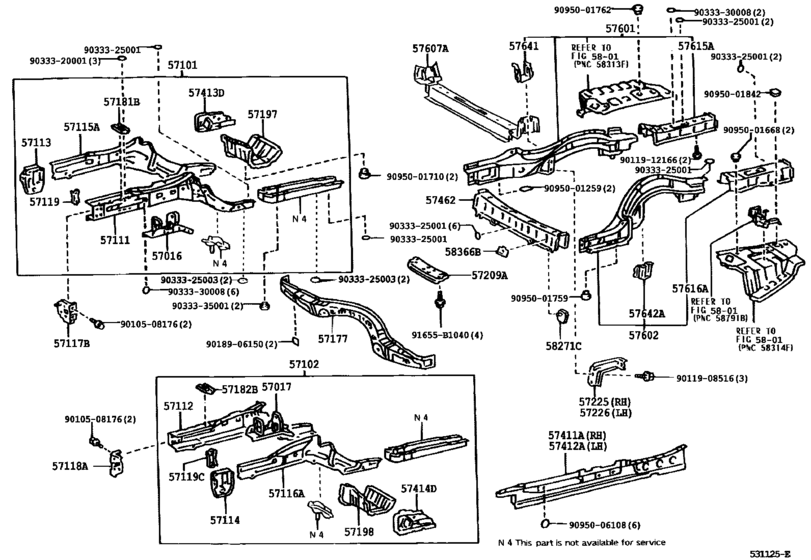

Floor Side Member ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57016
|
57016
57016-51010 Reinforcement Sub-Assy, Front Side Member, Rh[05.2000 - 07.2001] JCE10 |
57016-51010 |
US $81.54 |
||
|
57017
|
57017
57017-51010 Reinforcement Sub-Assy, Front Side Member, Lh[05.2000 - 07.2001] JCE10 |
57017-51010 |
US $81.54 |
||
|
57101
|
57101
57101-53020 Member Sub-Assy, Front Side, Rh[05.2000 - 02.2001] JCE10 |
57101-53020 |
US $809.54 |
||
| replacement | |||||
|
57101
|
57101
57101-53021 Member Sub-Assy, Front Side, Rh[05.2000 - 02.2001] JCE10 |
57101-53021 |
US $809.54 |
||
|
57101
|
57101
57101-53021 Member Sub-Assy, Front Side, Rh[02.2001 - 07.2001] JCE10 |
57101-53021 |
US $809.54 |
||
|
57102
|
57102
57102-53020 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [05.2000 - 02.2001] JCE10 |
57102-53020 |
US $809.54 |
||
| replacement | |||||
|
57102
|
57102
57102-53021 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [05.2000 - 02.2001] JCE10 |
57102-53021 |
US $809.54 |
||
|
57102
|
57102
57102-53021 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [02.2001 - 07.2001] JCE10 |
57102-53021 |
US $809.54 |
||
|
57111
|
57111
57111-53020 Member, Front Side, Rh[05.2000 - 12.2000] JCE10 |
57111-53020 |
US $318.86 |
||
| replacement | |||||
|
57111
|
57111
57111-53022 Member, Front Side, Rh[05.2000 - 12.2000] JCE10 |
57111-53022 |
US $320.32 |
||
|
57111
|
57111
57111-53021 Member, Front Side, Rh[12.2000 - 07.2001] JCE10 |
57111-53021 |
US $318.86 |
||
| replacement | |||||
|
57111
|
57111
57111-53022 Member, Front Side, Rh[12.2000 - 07.2001] JCE10 |
57111-53022 |
US $320.32 |
||
|
57111
|
57111
57111-53022 Member, Front Side, Rh[04.2004 -] JCE10 |
57111-53022 |
US $320.32 |
||
|
57112
|
57112
57112-53020 Member, Front Side, LhFRONT SIDE, LH [05.2000 - 07.2001] JCE10 |
57112-53020 |
US $318.86 |
||
| replacement | |||||
|
57112
|
57112
57112-53021 Member, Front Side, LhFRONT SIDE, LH [05.2000 - 07.2001] JCE10 |
57112-53021 |
US $320.32 |
||
|
57112
|
57112
57112-53021 Member, Front Side, LhFRONT SIDE, LH [04.2004 -] JCE10 |
57112-53021 |
US $320.32 |
||
|
57113
|
57113
57113-53020 Extension, Front Side Member, RhFRONT SIDE MEMBER, RH [05.2000 - 07.2001] JCE10 |
57113-53020 |
US $38.88 |
||
|
57114
|
57114
57114-53020 Extension, Front Side Member, LhFRONT SIDE MEMBER, LH [05.2000 - 07.2001] JCE10 |
57114-53020 |
US $38.88 |
||
|
57115A
|
57115A
57115-53010 Plate, Front Side Member, Outer Rh[05.2000 - 07.2001] JCE10 |
57115-53010 |
US $144.14 |
||
|
57116A
|
57116A
57116-53020 Plate, Front Side Member, Outer Lh[05.2000 - 07.2001] JCE10 |
57116-53020 |
US $144.14 |
||
|
57117B
|
57117B
52011-53010 Reinforcement, Front Bumper Mounting, RhFRONT BUMPER MOUNTING, RH [05.2000 - 07.2001] JCE10 |
52011-53010 |
from US $48.34 |
||
|
57118A
|
57118A
52012-53010 Reinforcement, Front Bumper Mounting, LhFRONT BUMPER MOUNTING, LH [05.2000 - 07.2001] JCE10 |
52012-53010 |
US $48.34 |
||
|
57119
|
57119
57119-22060 Plate, Front Side Member, Front[05.2000 - 07.2001] JCE10 |
57119-22060 |
US $5.24 |
||
|
57119C
|
57119C
57119-22060 Plate, Front Side Member, Front[05.2000 - 07.2001] JCE10 |
57119-22060 |
US $5.24 |
||
|
57177
|
57177
57103-53020 Crossmember, Front Side Member To Dash PanelFRONT SIDE MEMBER TO DASH PANEL [05.2000 - 07.2001] JCE10 |
57103-53020 |
US $179.09 |
||
|
57181B
|
57181B
57181-53010 Plate, Front Side Member, No.3 Rh[05.2000 - 07.2001] JCE10 |
57181-53010 |
US $11.07 |
||
| replacement | |||||
|
57181B
|
57181B
57181-53011 Plate, Front Side Member, No.3 Rh[05.2000 - 07.2001] JCE10 |
57181-53011 |
US $11.21 |
||
|
57181B
|
57181B
57181-53011 Plate, Front Side Member, No.3 Rh[04.2004 -] JCE10 |
57181-53011 |
US $11.21 |
||
|
57182B
|
57182B
57181-53010 Plate, Front Side Member, No.3 Rh[05.2000 - 07.2001] JCE10 |
57181-53010 |
US $11.07 |
||
| replacement | |||||
|
57182B
|
57182B
57181-53011 Plate, Front Side Member, No.3 Rh[05.2000 - 07.2001] JCE10 |
57181-53011 |
US $11.21 |
||
|
57182B
|
57182B
57181-53011 Plate, Front Side Member, No.3 Rh[04.2004 -] JCE10 |
57181-53011 |
US $11.21 |
||
|
57197
|
57197
57197-51010 Box, Torque, Front Rh[05.2000 - 07.2001] JCE10 |
57197-51010 |
US $90.27 |
||
|
57198
|
57198
57198-51010 Box, Torque, Front Lh[05.2000 - 07.2001] JCE10 |
57198-51010 |
US $90.27 |
||
|
57209A
|
57209A
57255-30110
Member Sub-Assy, Engine Rear Mounting
[05.2000 - 07.2001] JCE10 |
57255-30110 |
— | ||
|
57225
|
57225
57225-30020 Brace, Front Mounting Bracket, Rh[05.2000 - 07.2001] JCE10 |
57225-30020 |
US $26.50 |
||
|
57226
|
57226
57226-30021 Brace, Front Mounting Bracket, Lh[05.2000 - 07.2001] JCE10 |
57226-30021 |
US $28.54 |
||
|
57411A
|
57411A
57401-53010 Member, Floor Side, Inner Rh[05.2000 - 07.2001] JCE10 |
57401-53010 |
US $222.77 |
||
|
57412A
|
57412A
57402-53010 Member, Floor Side, Inner Lh[05.2000 - 07.2001] JCE10 |
57402-53010 |
US $222.77 |
||
|
57413D
|
57413D
57413-51010 Extension, Floor Side, Inner Rh[05.2000 - 07.2001] JCE10 |
57413-51010 |
US $46.01 |
||
|
57414D
|
57414D
57414-51010 Extension, Floor Side, Inner Lh[05.2000 - 07.2001] JCE10 |
57414-51010 |
US $46.01 |
||
|
57462
|
57462
57462-53010 Member, Center Floor Cross, No.2[05.2000 - 05.2001] JCE10 |
57462-53010 |
US $101.92 |
||
| replacement | |||||
|
57462
|
57462
57462-53030 Member, Center Floor Cross, No.2[05.2000 - 05.2001] JCE10 |
57462-53030 |
US $93.18 |
||
|
57462
|
57462
57462-53030 Member, Center Floor Cross, No.2[05.2001 - 07.2001] JCE10 |
57462-53030 |
US $93.18 |
||
|
57601
|
57601
57601-53902 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [05.2000 - 07.2001] JCE10 |
57601-53902 |
US $626.08 |
||
| replacement | |||||
|
57601
|
57601
57601-53906 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [05.2000 - 07.2001] JCE10 |
57601-53906 |
US $627.54 |
||
|
57601
|
57601
57601-53906 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [07.2001 -] JCE10..SED |
57601-53906 |
US $627.54 |
||
|
57602
|
57602
57602-53902 Member Sub-Assy, Rear Floor Side, Lh[05.2000 - 07.2001] JCE10 |
57602-53902 |
US $720.72 |
||
| replacement | |||||
|
57602
|
57602
57602-53909 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [05.2000 - 07.2001] JCE10 |
57602-53909 |
US $720.72 |
||
|
57602
|
57602
57602-53909 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [07.2001 - 07.2005] JCE10..SED |
57602-53909 |
US $720.72 |
||
|
57615A
|
57615A
57615-53902 Member, Rear Floor Side, Rear RhREAR FLOOR SIDE, REAR RH [05.2000 - 07.2001] JCE10 |
57615-53902 |
US $119.39 |
||
| replacement | |||||
|
57615A
|
57615A
57615-53905
Member, Rear Floor Side, Rear Rh
[05.2000 - 07.2001] JCE10 |
57615-53905 |
— | ||
|
57615A
|
57615A
57615-53906 Member, Rear Floor Side, Rear RhREAR FLOOR SIDE, REAR RH [07.2001 -] JCE10..SED |
57615-53906 |
US $119.39 |
||
| replacement | |||||
|
57615A
|
57615A
57615-53905
Member, Rear Floor Side, Rear Rh
[07.2001 -] JCE10..SED |
57615-53905 |
— | ||
|
57616A
|
57616A
57616-53902 Member, Rear Floor Side, Rear LhREAR FLOOR SIDE, REAR LH [05.2000 - 07.2001] JCE10 |
57616-53902 |
US $183.46 |
||
| replacement | |||||
|
57616A
|
57616A
57616-53903 Member, Rear Floor Side, Rear Lh[05.2000 - 07.2001] JCE10 |
57616-53903 |
US $186.37 |
||
|
57616A
|
57616A
57616-53903 Member, Rear Floor Side, Rear Lh[07.2001 -] JCE10 |
57616-53903 |
US $186.37 |
||
|
57641
|
57641
57641-53010 Reinforcement, Rear Floor Side Member, Inner RhREAR FLOOR SIDE MEMBER, INNER RH [05.2000 - 01.2001] JCE10 |
57641-53010 |
US $21.69 |
||
|
57641
|
57641
57641-53011 Reinforcement, Rear Floor Side Member, Inner RhREAR FLOOR SIDE MEMBER, INNER RH [01.2001 - 07.2001] JCE10 |
57641-53011 |
US $21.69 |
||
|
57642A
|
57642A
57642-53010 Reinforcement, Rear Floor Side Member, Inner Lh[05.2000 - 01.2001] JCE10 |
57642-53010 |
US $21.69 |
||
|
57642A
|
57642A
57642-53011 Reinforcement, Rear Floor Side Member, Inner Lh[01.2001 - 07.2001] JCE10 |
57642-53011 |
US $21.69 |
||
|
58271C
|
58271C
58271-53020 Reinforcement, Belt Anchor To Froor Pan, No.3[05.2001 - 07.2001] JCE10 |
58271-53020 |
US $12.67 |
||
|
58366B
|
58366B
58366-30050 Bracket, Fuel Tank Support, Rh[05.2000 - 07.2001] JCE10 |
58366-30050 |
US $11.07 |
||
|
91655B1040
|
91655B1040
91655-B1040 BOLT WWASHER |
91655-B1040 |
US $2.08 |
||
|
9010508176
|
9010508176
90105-08176 BOLT |
90105-08176 |
US $2.56 |
||
|
9011908516
|
9011908516
90119-08516 BOLT |
90119-08516 |
from US $0.84 |
||
|
9011912166
|
9011912166
90119-12166
Bolt
|
90119-12166 |
— | ||
|
9018906150
|
9018906150
90189-06150 BUSH |
90189-06150 |
from US $0.47 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9033335001
|
9033335001
90333-35001 New Genuine Part |
90333-35001 |
US $1.76 |
||
|
9095001259
|
9095001259
90950-01259 PLUG |
90950-01259 |
from US $1.92 |
||
|
9095001668
|
9095001668
90950-01668 New Genuine Part |
90950-01668 |
US $0.79 |
||
|
9095001710
|
9095001710
90950-01710 PLUG HOLE |
90950-01710 |
US $1.12 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001762
|
9095001762
90950-01762 New Genuine Part |
90950-01762 |
US $1.76 |
||
|
9095001842
|
9095001842
90950-01842 New Genuine Part |
90950-01842 |
US $3.20 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
||
