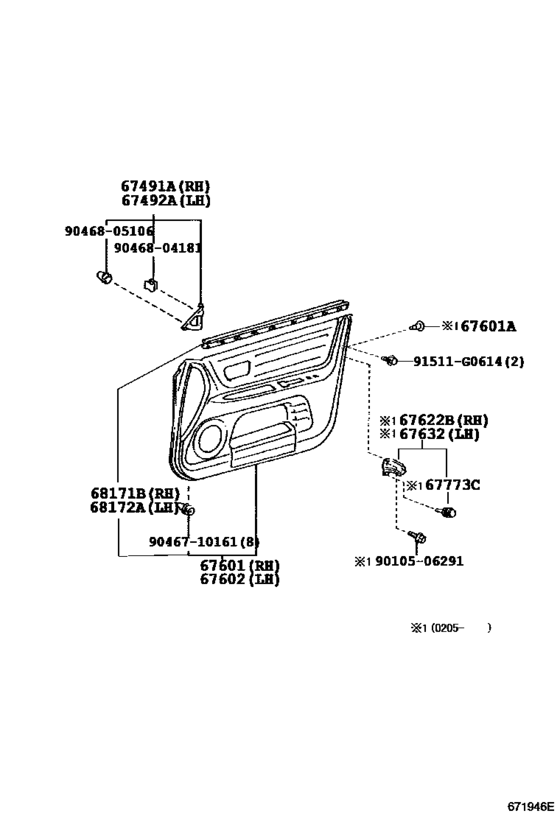

Front Door Panel & Glass ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-53020-C0 Garnish, Front Door Lower Frame Bracket, Rh[05.2000 - 07.2001] JCE10 BLACK,TRIM0#,2# |
67491-53020-C0 |
US $18.20 |
||
|
67492A
|
67492A
67492-53020-C0 Garnish, Front Door Lower Frame Bracket, Lh[05.2000 - 07.2001] JCE10 BLACK,TRIM0#,2# |
67492-53020-C0 |
US $18.20 |
||
|
67601
|
67601
67610-53080-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67610-53080-C0 |
US $564.93 |
||
|
67601
|
67601
67610-53090-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-53090-A0 |
US $794.98 |
||
|
67601
|
67601
67610-53090-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67610-53090-C0 |
US $794.98 |
||
|
67601
|
67601
67610-53120-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
67610-53120-A0 |
US $794.98 |
||
|
67601
|
67601
67610-53120-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
67610-53120-C0 |
US $794.98 |
||
|
67601
|
67601
67610-53121-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
67610-53121-A0 |
US $794.98 |
||
|
67601
|
67601
67610-53121-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
67610-53121-C0 |
US $794.98 |
||
|
67601
|
67601
67610-53131-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-53131-A0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53131-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67610-53131-C0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53132-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 08.2003] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-53132-A0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53132-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 08.2003] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67610-53132-C0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53132-C1 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [01.2003 - 06.2003] JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO), DOOR TRIM = TYPE B-*104,BLACK & GRAY,TRIM21 |
67610-53132-C1 |
US $1,126.94 |
||
|
67601
|
67601
67610-53220-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-53220-A0 |
US $564.93 |
||
|
67601
|
67601
67610-53220-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67610-53220-C0 |
US $564.93 |
||
|
67601
|
67601
67610-53221-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-53221-A0 |
US $564.93 |
||
|
67601
|
67601
67610-53221-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67610-53221-C0 |
US $564.93 |
||
|
67601
|
67601
67610-53310-A0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.2003 - 07.2005] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-53310-A0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53310-C0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.2003 - 07.2005] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67610-53310-C0 |
US $1,126.94 |
||
|
67601
|
67601
67610-53310-C1 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [01.2004 - 06.2004] JCE10..SED SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM22 |
67610-53310-C1 |
US $1,126.94 |
||
|
67601A
|
67601A
67771-53010-A0 Retainer(For Front Door Trim Board)[05.2002 -] JCE10 IVORY,TRIM0# |
67771-53010-A0 |
US $2.18 |
||
|
67601A
|
67601A
67771-53010-C0 Retainer(For Front Door Trim Board)[05.2002 -] JCE10 BLACK,TRIM2# |
67771-53010-C0 |
US $2.18 |
||
|
67602
|
67602
67620-53090-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67620-53090-C0 |
US $564.93 |
||
|
67602
|
67602
67620-53100-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-53100-A0 |
US $794.98 |
||
|
67602
|
67602
67620-53100-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2001] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67620-53100-C0 |
US $794.98 |
||
|
67602
|
67602
67620-53120-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
67620-53120-A0 |
US $794.98 |
||
|
67602
|
67602
67620-53120-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
67620-53120-C0 |
US $794.98 |
||
|
67602
|
67602
67620-53121-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
67620-53121-A0 |
US $794.98 |
||
|
67602
|
67602
67620-53121-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
67620-53121-C0 |
US $794.98 |
||
|
67602
|
67602
67620-53131-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-53131-A0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53131-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67620-53131-C0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53132-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 08.2003] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-53132-A0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53132-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 08.2003] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67620-53132-C0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53132-C1 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [01.2003 - 06.2003] JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO), DOOR TRIM = TYPE B-*104,BLACK & GRAY,TRIM21 |
67620-53132-C1 |
US $1,126.94 |
||
|
67602
|
67602
67620-53220-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-53220-A0 |
US $564.93 |
||
|
67602
|
67602
67620-53220-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2001 - 05.2002] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67620-53220-C0 |
US $564.93 |
||
|
67602
|
67602
67620-53221-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-53221-A0 |
US $564.93 |
||
|
67602
|
67602
67620-53221-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2002 - 07.2005] JCE10 DOOR TRIM=TYPE A-*104,BLACK,TRIM2# |
67620-53221-C0 |
US $564.93 |
||
|
67602
|
67602
67620-53310-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.2003 - 07.2005] JCE10 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-53310-A0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53310-C0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.2003 - 07.2005] JCE10 DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
67620-53310-C0 |
US $1,126.94 |
||
|
67602
|
67602
67620-53310-C1 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [01.2004 - 06.2004] JCE10..SED SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM22 |
67620-53310-C1 |
US $1,126.94 |
||
|
67622B
|
67622B
67622-53010 Bracket, Front Door Trim, No.5 Rh[05.2002 -] JCE10 |
67622-53010 |
US $4.95 |
||
|
67632
|
67632
67632-53010 Bracket, Front Door Trim, No.5 Lh[05.2002 -] JCE10 |
67632-53010 |
US $4.95 |
||
|
67773C
|
67773C
67773-53010 Clip, Door Trim Upper Retainer, No.1[05.2002 -] JCE10 |
67773-53010 |
US $1.46 |
||
|
68171B
|
68171B
68171-53010 Weatherstrip, Front Door Glass, Inner Rh[07.2001 - 07.2003] JCE10 |
68171-53010 |
US $41.64 |
||
| replacement | |||||
|
68171B
|
68171B
68171-53011 Weatherstrip, Front Door Glass, Inner Rh[07.2001 - 07.2003] JCE10 |
68171-53011 |
US $41.64 |
||
|
68171B
|
68171B
68171-53011 Weatherstrip, Front Door Glass, Inner Rh[07.2003 -] JCE10 |
68171-53011 |
US $41.64 |
||
|
68172A
|
68172A
68172-53010 Weatherstrip, Front Door Glass, Inner Lh[07.2001 - 07.2003] JCE10 |
68172-53010 |
US $41.64 |
||
| replacement | |||||
|
68172A
|
68172A
68172-53011 Weatherstrip, Front Door Glass, Inner Lh[07.2001 - 07.2003] JCE10 |
68172-53011 |
US $41.64 |
||
|
68172A
|
68172A
68172-53011 Weatherstrip, Front Door Glass, Inner Lh[07.2003 -] JCE10 |
68172-53011 |
US $41.64 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
9010506291
|
9010506291
90105-06291 New Genuine Part |
90105-06291 |
US $1.44 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046804181
|
9046804181
90468-04181 Clip(For Door Trim) |
90468-04181 |
US $1.28 |
||
|
9046805106
|
9046805106
90468-05106 Clip, Cool Air Ornament |
90468-05106 |
from US $2.97 |
||
