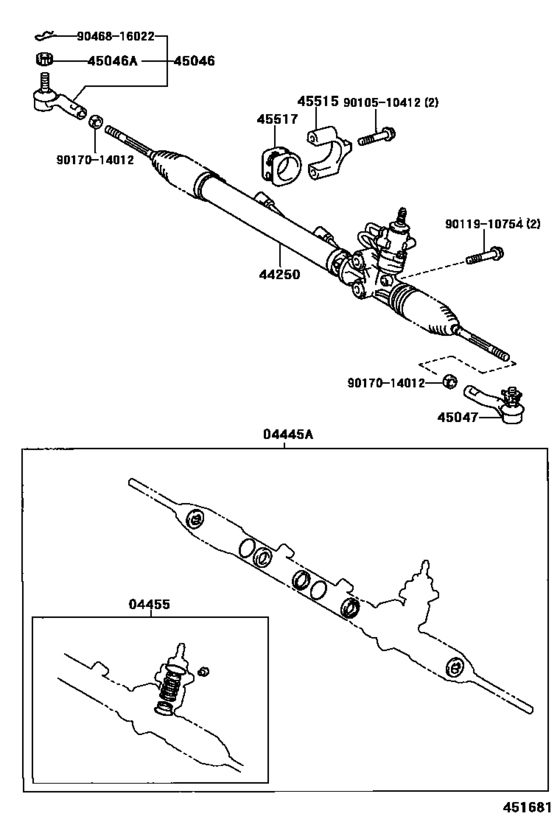

Front Steering Gear & Link ([05.2000 - 07.2001] (0005-0107)) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-51010
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.2000 - 10.2000] JCE10 |
04445-51010 |
— | ||
| replacement | |||||
|
04445A
|
04445A
04445-51011
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.2000 - 10.2000] JCE10 |
04445-51011 |
— | ||
|
04445A
|
04445A
04445-51011
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[10.2000 - 07.2001] JCE10 |
04445-51011 |
— | ||
|
04455
|
04455
04455-51010 Gasket Kit, Power Steering Control Valve Overhole[05.2000 - 07.2001] JCE10 |
04455-51010 |
US $43.68 |
||
|
44250
|
44250
44250-53020 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [05.2000 - 07.2001] JCE10 |
44250-53020 |
US $1,438.53 |
||
|
44250
|
44250
44250-53050 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [07.2001 - 09.2002] JCE10 |
44250-53050 |
US $1,438.53 |
||
|
45046
|
45046
45460-59035 End Sub-Assy, Tie Rod, Rh[05.2000 - 07.2001] JCE10 |
45460-59035 |
from US $58.98 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[05.2000 - 07.2001] JCE10 |
90171-12002 |
from US $1.19 |
||
|
45047
|
45047
45470-59035 End Sub-Assy, Tie Rod, Lh[05.2000 - 07.2001] JCE10 |
45470-59035 |
from US $58.98 |
||
|
45515
|
45515
45515-22120 Bracket, Steering Rack Housing, No.2[05.2000 - 07.2001] JCE10 |
45515-22120 |
US $33.90 |
||
|
45517
|
45517
45517-22070 Grommet, Steering Rack Housing, No.2[05.2000 - 07.2001] JCE10 |
45517-22070 |
from US $10.72 |
||
|
9010510412
|
9010510412
90105-10412 Bolt(For Front Suspension Upper Arm Rh) |
90105-10412 |
US $4.16 |
||
|
9011910754
|
9011910754
90119-10754 New Genuine Part |
90119-10754 |
US $4.96 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
