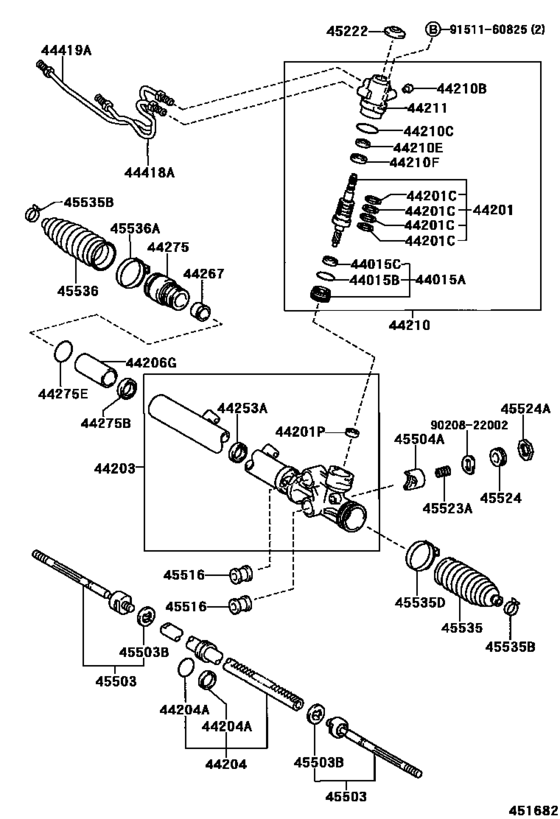

Front Steering Gear & Link ([05.2000 - 07.2001] (0005-0107)) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-43010 Nut Sub-Assy, Bearing Guide[05.2000 - 07.2001] JCE10 |
44015-43010 |
US $59.55 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[05.2000 - 07.2001] JCE10 |
90301-43002 |
from US $3.84 |
||
|
44015C
|
44015C
90310-25027 Seal, Oil(For Bearing Guide Nut)[05.2000 - 07.2001] JCE10 |
90310-25027 |
from US $3.68 |
||
|
44201
|
44201
44201-53020 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [05.2000 - 07.2001] JCE10 |
44201-53020 |
US $294.11 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[05.2000 - 07.2001] JCE10 |
90562-33007 |
US $1.76 |
||
|
44201P
|
44201P
90364-13005 Bearing(For Power Steering Control Valve Lower)[05.2000 - 07.2001] JCE10 |
90364-13005 |
US $8.04 |
||
|
44203
|
44203
44203-30040 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [05.2000 - 07.2001] JCE10 |
44203-30040 |
US $524.16 |
||
|
44204
|
44204
44204-53020 Rack Sub-Assy, Power SteeringPOWER STEERING [05.2000 - 07.2001] JCE10 |
44204-53020 |
US $221.31 |
||
|
44204A
|
44204A
90301-37007 Ring(For Rack Steering Piston)[05.2000 - 07.2001] JCE10 INNER |
90301-37007 |
US $3.84 |
||
|
44204A
|
44204A
90562-41001 Ring(For Rack Steering Piston)[05.2000 - 07.2001] JCE10 OUTER |
90562-41001 |
US $2.08 |
||
|
44206G
|
44206G
90561-30004 Spacer, No.1(For Power Steering Cylinder Tube)[05.2000 - 07.2001] JCE10 |
90561-30004 |
US $23.94 |
||
|
44210
|
44210
44210-53020 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [05.2000 - 07.2001] JCE10 |
44210-53020 |
US $563.47 |
||
|
44210B
|
44210B
90410-03008 Seat, Union(For Power Steering Control Valve)[05.2000 - 07.2001] JCE10 |
90410-03008 |
US $1.14 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[05.2000 - 07.2001] JCE10 |
90301-51001 |
from US $2.26 |
||
|
44210E
|
44210E
90311-19013 Seal, Oil(For Power Steering Control Valve)[05.2000 - 07.2001] JCE10 |
90311-19013 |
US $3.20 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[05.2000 - 07.2001] JCE10 |
90363-19003 |
US $18.85 |
||
|
44211
|
44211
44211-60010 Housing, Control Valve[05.2000 - 07.2001] JCE10 |
44211-60010 |
US $195.10 |
||
|
44253A
|
44253A
90310-26023 Seal, Oil(For Power Steering Rack Housing)[05.2000 - 07.2001] JCE10 |
90310-26023 |
from US $3.04 |
||
|
44267
|
44267
44267-22030 Guide, Rack End[05.2000 - 07.2001] JCE10 |
44267-22030 |
US $4.80 |
||
|
44275
|
44275
44275-22020
Stopper, Cylinder End
[05.2000 - 07.2001] JCE10 |
44275-22020 |
— | ||
|
44275B
|
44275B
90310-26023 Seal, Oil(For Power Steering Rack Housing)[05.2000 - 07.2001] JCE10 |
90310-26023 |
from US $3.04 |
||
|
44275E
|
44275E
90301-40004 Ring, O(For Rack End Guide)[05.2000 - 07.2001] JCE10 |
90301-40004 |
US $3.20 |
||
|
44418A
|
44418A
44418-30070 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [05.2000 - 07.2001] JCE10 |
44418-30070 |
US $15.20 |
||
|
44419A
|
44419A
44419-30070
Tube, Steering Left Turn Pressure
[05.2000 - 07.2001] JCE10 |
44419-30070 |
— | ||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[05.2000 - 07.2001] JCE10 |
45222-32010 |
from US $5.36 |
||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[10.2000 - 07.2001] JCE10 |
45503-29785 |
from US $99.16 |
||
|
45503
|
45503
45503-39105
End Sub-Assy, Steering Rack
[05.2000 - 10.2000] JCE10 |
45503-39105 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[05.2000 - 10.2000] JCE10 |
45503-29785 |
from US $99.16 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[05.2000 - 10.2000] JCE10 OD=37 |
90214-14002 |
from US $1.33 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[10.2000 - 07.2001] JCE10 OD=38 |
90214-14007 |
from US $1.56 |
||
|
45504A
|
45504A
45504-51010 Guide Sub-Assy, Rack[05.2000 - 07.2001] JCE10 |
45504-51010 |
US $20.97 |
||
|
45516
|
45516
45516-53010 Grommet, Steering Rack Housing, No.1[05.2000 - 07.2001] JCE10 |
45516-53010 |
US $17.48 |
||
|
45523A
|
45523A
90501-30026
Spring(For Steering Gear Rack Guide)
[05.2000 - 07.2001] JCE10 |
90501-30026 |
— | ||
|
45524
|
45524
45524-20040 Cap, Rack Guide Spring(For Power Steering)[05.2000 - 07.2001] JCE10 |
45524-20040 |
US $11.01 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[05.2000 - 07.2001] JCE10 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-30010 Boot, Steering Rack, No.1[05.2000 - 07.2001] JCE10 |
45535-30010 |
US $19.46 |
||
|
45535B
|
45535B
90467-19012
Clip
[05.2000 - 07.2001] JCE10 |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[05.2000 - 07.2001] JCE10 |
90467-19019 |
from US $4.41 |
||
|
45535B
|
45535B
90467-19019 Clip[04.2002 -] JCE10 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-49004 Clamp(For Steering Rack Boot No.1)[05.2000 - 07.2001] JCE10 |
90460-49004 |
US $4 |
||
|
45536
|
45536
45535-30010 Boot, Steering Rack, No.1[05.2000 - 07.2001] JCE10 |
45535-30010 |
US $19.46 |
||
|
45536A
|
45536A
90460-49004 Clamp(For Steering Rack Boot No.1)[05.2000 - 07.2001] JCE10 |
90460-49004 |
US $4 |
||
|
9020822002
|
9020822002
90208-22002 LEXWASHERCONE SPRG |
90208-22002 |
US $1.75 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
