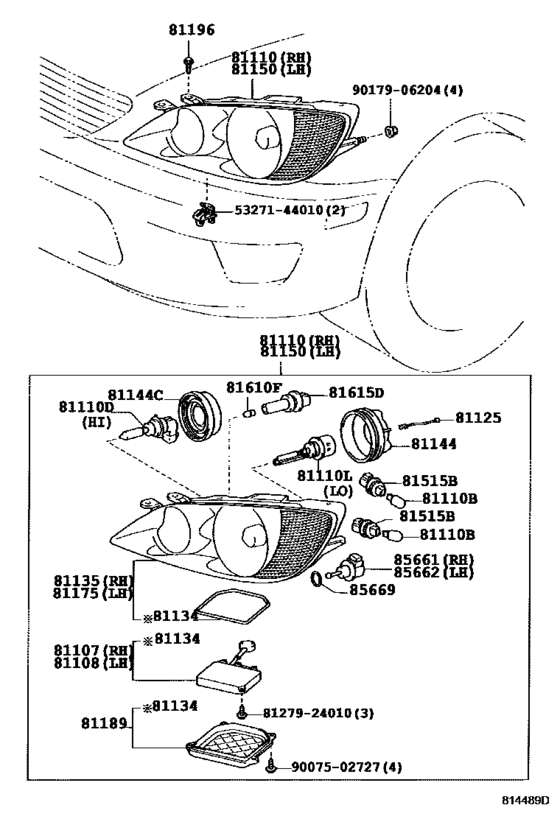

Headlamp ([05.2000 - 07.2001] (0005-0107)) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81107
|
81107
81107-53040
Computer Sub-Assy, Headlamp Light Control, Rh
[05.2000 - 07.2001] JCE10 |
81107-53040 |
— | ||
|
81108
|
81108
81107-53040
Computer Sub-Assy, Headlamp Light Control, Rh
[05.2000 - 07.2001] JCE10 |
81107-53040 |
— | ||
|
81110
|
81110
81110-53040
Headlamp Assy, Rh
[05.2000 - 04.2001] JCE10 |
81110-53040 |
— | ||
|
81110
|
81110
81110-53041
Headlamp Assy, Rh
[04.2001 - 07.2001] JCE10 |
81110-53041 |
— | ||
|
81110
|
81110
81110-53100
Headlamp Assy, Rh
[01.2003 - 06.2003] JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO) |
81110-53100 |
— | ||
|
81110
|
81110
81110-53200
Headlamp Assy, Rh
[01.2004 - 06.2004] JCE10..SED SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) |
81110-53200 |
— | ||
|
81110B
|
81110B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2000 - 07.2001] JCE10 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[05.2000 - 07.2001] JCE10 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[05.2000 - 07.2001] JCE10 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81110L
|
81110L
90981-15001 Bulb(For Rear Combination Lamp)[07.2001 - 08.2003] JCE10 12V 21W |
90981-15001 |
US $6.12 |
||
| replacement | |||||
|
81110L
|
81110L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[07.2001 - 08.2003] JCE10 12V 21W |
90981-15011 |
from US $4.60 |
||
|
81110L
|
81110L
90981-20007 Bulb, Discharge Headlamp[05.2000 - 07.2001] JCE10 85V 35W |
90981-20007 |
US $187.20 |
||
|
81125
|
81125
81125-53040
Cord, Headlamp
[05.2000 - 07.2001] JCE10 |
81125-53040 |
— | ||
|
81134
|
81134
90075-68001 Gasket, Headlamp[05.2000 - 09.2000] JCE10 |
90075-68001 |
US $6.88 |
||
|
81135
|
81135
81130-53041
Unit Assy, Headlamp, Rh
[06.2001 - 07.2001] JCE10 |
81130-53041 |
— | ||
| replacement | |||||
|
81135
|
81135
81145-53041
Unit Assy, Headlamp, Rh
[06.2001 - 07.2001] JCE10 |
81145-53041 |
— | ||
|
81135
|
81135
81140-53040 Unit Assy, Headlamp, Rh[05.2000 - 06.2001] JCE10 |
81140-53040 |
US $735.28 |
||
| replacement | |||||
|
81135
|
81135
81145-53040 Cover, Headlamp, No.2[05.2000 - 06.2001] JCE10 |
81145-53040 |
US $742.56 |
||
|
81135
|
81135
81145-53160 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2003 - 07.2005] JCE10 |
81145-53160 |
US $751.30 |
||
|
81144
|
81144
81135-3A150 Cap, Locking[05.2000 - 07.2001] JCE10 |
81135-3A150 |
from US $11.19 |
||
|
81144C
|
81144C
90075-65006 Cover, Headlamp Back, No.1[05.2000 - 07.2001] JCE10 |
90075-65006 |
from US $5.19 |
||
|
81150
|
81150
81150-53040
Headlamp Assy, Lh
[05.2000 - 04.2001] JCE10 |
81150-53040 |
— | ||
|
81150
|
81150
81150-53041
Headlamp Assy, Lh
[04.2001 - 07.2001] JCE10 |
81150-53041 |
— | ||
|
81150
|
81150
81150-53100
Headlamp Assy, Lh
[01.2003 - 06.2003] JCE10..SED SPORTS DESIGN(USA/HAWAII/P.RICO) |
81150-53100 |
— | ||
|
81150
|
81150
81150-53200
Headlamp Assy, Lh
[01.2004 - 06.2004] JCE10..SED SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) |
81150-53200 |
— | ||
|
81175
|
81175
81070-53040 Unit Assy, Headlamp, Lh[05.2000 - 06.2001] JCE10 |
81070-53040 |
US $735.28 |
||
| replacement | |||||
|
81175
|
81175
81185-53040
Unit Assy, Headlamp, Lh
[05.2000 - 06.2001] JCE10 |
81185-53040 |
— | ||
|
81175
|
81175
81170-53041
Unit Assy, Headlamp, Lh
[06.2001 - 07.2001] JCE10 |
81170-53041 |
— | ||
| replacement | |||||
|
81175
|
81175
81185-53041 Unit Assy, Headlamp, Lh[06.2001 - 07.2001] JCE10 |
81185-53041 |
US $323.25 |
||
|
81175
|
81175
81185-53160 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2003 - 07.2005] JCE10 |
81185-53160 |
from US $378.83 |
||
|
81189
|
81189
90075-67004 Cover, Headlamp[05.2000 - 07.2001] JCE10 |
90075-67004 |
US $12.66 |
||
|
81196
|
81196
81196-53010 Retainer, Headlamp[05.2000 - 07.2001] JCE10 |
81196-53010 |
US $2.10 |
||
|
81515B
|
81515B
90075-60032 Socket, Front Turn Signal Lamp[05.2000 - 07.2001] JCE10 |
90075-60032 |
US $16 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[05.2000 - 07.2001] JCE10 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[05.2000 - 07.2001] JCE10 12V 5W |
90080-81053 |
US $2.75 |
||
|
81615D
|
81615D
90075-60030 Socket, Clearance Lamp[05.2000 - 07.2001] JCE10 |
90075-60030 |
US $13.40 |
||
|
85661
|
85661
85661-33010 Motor, Headlamp Leveling, Rh[05.2000 - 07.2001] JCE10 |
85661-33010 |
US $224.22 |
||
|
85662
|
85662
85661-33010 Motor, Headlamp Leveling, Rh[05.2000 - 07.2001] JCE10 |
85661-33010 |
US $224.22 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[05.2000 - 07.2001] JCE10 |
90075-99120 |
from US $2.42 |
||
|
5327144010
|
5327144010
53271-44010 Bracket, Headlamp Mounting |
53271-44010 |
from US $8.33 |
||
|
8127924010
|
8127924010
81279-24010 Screw, Side Turn Signal Lamp |
81279-24010 |
US $1.60 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
US $1.12 |
||
|
9017906204
|
9017906204
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
