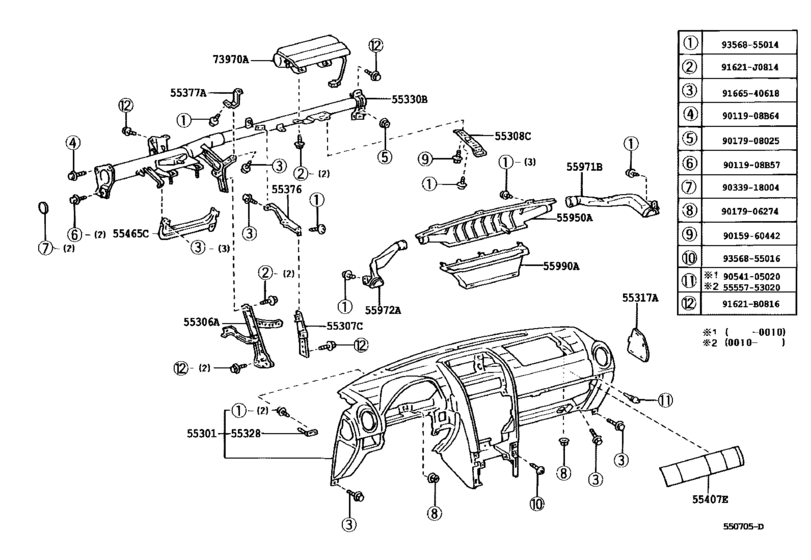

Instrument Panel & Glove Compartment ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-53040-C0 Panel Sub-Assy, InstrumentINSTRUMENT [05.2000 - 07.2001] JCE10 TYPE C:REFER TO ILLUSTRATION,IVORY,TRIM0# |
55301-53040-C0 |
US $560.56 |
||
|
55301
|
55301
55301-53040-C1
Panel Sub-Assy, Instrument
[05.2000 - 07.2001] JCE10 TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM0#,2# |
55301-53040-C1 |
— | ||
|
55301
|
55301
55301-53090-C0
Panel Sub-Assy, Instrument
[07.2001 -] JCE10 TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM0# |
55301-53090-C0 |
— | ||
| replacement | |||||
|
55301
|
55301
55301-53091-C0
Panel Sub-Assy, Instrument
[07.2001 -] JCE10 TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM0# |
55301-53091-C0 |
— | ||
|
55301
|
55301
55301-53090-C1 Panel Sub-Assy, InstrumentINSTRUMENT [07.2001 -] JCE10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
55301-53090-C1 |
US $562.02 |
||
| replacement | |||||
|
55301
|
55301
55301-53091-C1
Panel Sub-Assy, Instrument
[07.2001 -] JCE10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
55301-53091-C1 |
— | ||
|
55306A
|
55306A
55306-53030 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [05.2000 - 07.2001] JCE10 |
55306-53030 |
US $28.39 |
||
|
55307C
|
55307C
55352-53020 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [05.2000 - 07.2001] JCE10 |
55352-53020 |
US $12.08 |
||
|
55308C
|
55308C
55308-53010 Bracket Sub-Assy, Instrument Panel, Center[05.2000 - 07.2001] JCE10 |
55308-53010 |
US $9.03 |
||
|
55317A
|
55317A
55317-53020-A0 Panel, Instrument Side, RhINSTRUMENT SIDE, RH [05.2000 - 01.2001] JCE10 IVORY,TRIM0# |
55317-53020-A0 |
US $24.02 |
||
| replacement | |||||
|
55317A
|
55317A
55317-53020-C0
Panel, Instrument Side, Rh
[05.2000 - 01.2001] JCE10 IVORY,TRIM0# |
55317-53020-C0 |
— | ||
|
55317A
|
55317A
55317-53020-C0
Panel, Instrument Side, Rh
[05.2000 - 07.2001] JCE10 BLACK,TRIM0#,2# |
55317-53020-C0 |
— | ||
|
55328
|
55328
55328-22040 Pin, Instrument Panel, No.1[05.2000 - 07.2001] JCE10 |
55328-22040 |
US $5.97 |
||
|
55330B
|
55330B
55330-53030 Reinforcement Assy, Instrument PanelINSTRUMENT PANEL [05.2000 - 07.2001] JCE10 |
55330-53030 |
US $198.02 |
||
|
55376
|
55376
55376-53020 Bracket, Instrument Panel Mounting, No.1INSTRUMENT PANEL MOUNTING, NO.1 [05.2000 - 07.2001] JCE10 |
55376-53020 |
US $12.52 |
||
|
55377A
|
55377A
55377-53020
Bracket, Instrument Panel Mounting, No.2
[05.2000 - 07.2001] JCE10 |
55377-53020 |
— | ||
|
55407E
|
55407E
55407-53010 Insert Sub-Assy, Instrument Panel Safety PadINSTRUMENT PANEL SAFETY PAD [05.2000 - 07.2001] JCE10 |
55407-53010 |
US $36.25 |
||
|
55465C
|
55465C
55465-53010
Insert, Instrument Panel Lower Pad, Lh
[05.2000 - 07.2001] JCE10 |
55465-53010 |
— | ||
|
55950A
|
55950A
55950-53010 Nozzle Assy, Defroster[05.2000 - 07.2001] JCE10 |
55950-53010 |
US $62.32 |
||
|
55971B
|
55971B
55970-53020 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [05.2000 - 07.2001] JCE10 |
55970-53020 |
US $24.46 |
||
|
55972A
|
55972A
55972-53020 Duct, Side Defroster Nozzle, No.2SIDE DEFROSTER NOZZLE, NO.2 [05.2000 - 07.2001] JCE10 |
55972-53020 |
US $27.37 |
||
|
55990A
|
55990A
55990-53020 Nozzle Assy, Defroster, LowerDEFROSTER, LOWER [05.2000 - 07.2001] JCE10 |
55990-53020 |
US $39.17 |
||
|
73970A
|
73970A
73970-53040-C0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [05.2000 - 07.2001] JCE10 BLACK,TRIM0#,2# |
73970-53040-C0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-53060-C0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [07.2001 -] JCE10 BLACK,TRIM0#,2# |
73970-53060-C0 |
US $1,776.32 |
||
| replacement | |||||
|
73970A
|
73970A
73970-53111-C0 Bed Assy, Rear Lh[07.2001 -] JCE10 BLACK,TRIM0#,2# |
73970-53111-C0 |
US $1,776.32 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9011908B57
|
9011908B57
90119-08B57 New Genuine Part |
90119-08B57 |
US $1.75 |
||
|
9011908B64
|
9011908B64
90119-08B64 New Genuine Part |
90119-08B64 |
US $1.75 |
||
|
5555753020
|
5555753020
55557-53020 Cushion(For Glove Compartment) |
55557-53020 |
US $2.04 |
||
|
9015960442
|
9015960442
90159-60442
New Genuine Part
|
90159-60442 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9033918004
|
9033918004
90339-18004 New Genuine Part |
90339-18004 |
US $1.93 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
US $0.87 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
