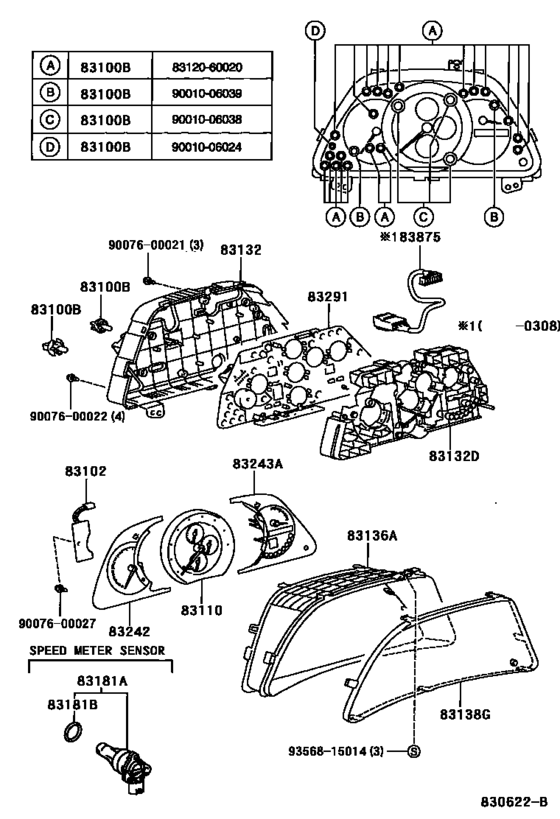

Meter ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[05.2000 - 07.2001] JCE10 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
83120-60020 |
from US $3.67 |
||
|
83100B
|
83100B
90010-06024 Bulb, Combination Meter, No.1[05.2000 - 07.2001] JCE10 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
90010-06024 |
US $4.80 |
||
|
83100B
|
83100B
90010-06038 Bulb, Combination Meter, No.1[05.2000 - 07.2001] JCE10 14V3.8W,W(ORANGE CAP),TYPE C:REFER TO ILLUSTRATION |
90010-06038 |
from US $4.88 |
||
|
83100B
|
83100B
90010-06039 Bulb, Combination Meter, No.1[05.2000 - 07.2001] JCE10 14V 3W,W(ORANGE CAP),TYPE B:REFER TO ILLUSTRATION |
90010-06039 |
US $6.56 |
||
|
83102
|
83102
83861-53220
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.2000 - 08.2003] JCE10..SED..ATM |
83861-53220 |
— | ||
|
83110
|
83110
83220-53120 Speedometer Assy[05.2000 - 07.2001] JCE10 |
83220-53120 |
US $628.99 |
||
|
83110
|
83110
83220-53130
Speedometer Assy
[05.2000 - 07.2001] JCE10 CANADA SPEC |
83220-53130 |
— | ||
|
83110
|
83110
83220-53240
Speedometer Assy
[07.2001 - 08.2003] JCE10 |
83220-53240 |
— | ||
|
83110
|
83110
83220-53241
Speedometer Assy
[08.2003 - 07.2005] JCE10 |
83220-53241 |
— | ||
|
83110
|
83110
83220-53250 Speedometer Assy[07.2001 - 08.2003] JCE10 CANADA SPEC |
83220-53250 |
US $633.36 |
||
|
83110
|
83110
83220-53251
Speedometer Assy
[08.2003 - 07.2005] JCE10 CANADA SPEC |
83220-53251 |
— | ||
|
83132
|
83132
83841-53010 Case, Combination Meter[05.2000 - 08.2003] JCE10..SED..ATM |
83841-53010 |
US $50.09 |
||
|
83132D
|
83132D
83841-53220 Case, Combination Meter, No.2[05.2000 - 08.2003] JCE10..SED..ATM |
83841-53220 |
US $50.09 |
||
|
83136A
|
83136A
83821-53010 Cover, Combination Meter[05.2000 - 08.2003] JCE10..SED..ATM |
83821-53010 |
US $34.51 |
||
|
83138G
|
83138G
83852-53010 Glass, Combination Meter[05.2000 - 08.2003] JCE10..SED..ATM |
83852-53010 |
US $31.92 |
||
|
83242
|
83242
83881-53220
Tachometer Assy, Engine
[05.2000 - 07.2001] JCE10 |
83881-53220 |
— | ||
|
83242
|
83242
83881-53230
Tachometer Assy, Engine
[05.2000 - 07.2001] JCE10 CANADA SPEC |
83881-53230 |
— | ||
|
83242
|
83242
83881-53430
Tachometer Assy, Engine
[07.2001 - 08.2003] JCE10..ATM |
83881-53430 |
— | ||
|
83242
|
83242
83881-53431
Tachometer Assy, Engine
[08.2003 - 07.2005] JCE10..ATM |
83881-53431 |
— | ||
|
83242
|
83242
83881-53440
Tachometer Assy, Engine
[07.2001 - 08.2003] JCE10..ATM CANADA SPEC |
83881-53440 |
— | ||
|
83242
|
83242
83881-53441
Tachometer Assy, Engine
[08.2003 - 07.2005] JCE10..ATM CANADA SPEC |
83881-53441 |
— | ||
|
83243A
|
83243A
83882-53220
Gauge Sub-Assy, Fuel Receiver
[05.2000 - 07.2001] JCE10 |
83882-53220 |
— | ||
|
83243A
|
83243A
83882-53230
Gauge Sub-Assy, Fuel Receiver
[05.2000 - 07.2001] JCE10 CANADA SPEC |
83882-53230 |
— | ||
|
83243A
|
83243A
83882-53400
Gauge Sub-Assy, Fuel Receiver
[07.2001 - 08.2003] JCE10..ATM CANADA SPEC |
83882-53400 |
— | ||
|
83243A
|
83243A
83882-53401
Gauge Sub-Assy, Fuel Receiver
[08.2003 - 07.2005] JCE10..ATM CANADA SPEC |
83882-53401 |
— | ||
|
83243A
|
83243A
83882-53430
Gauge Sub-Assy, Fuel Receiver
[07.2001 - 08.2003] JCE10..ATM |
83882-53430 |
— | ||
|
83243A
|
83243A
83882-53431
Gauge Sub-Assy, Fuel Receiver
[08.2003 - 07.2005] JCE10..ATM |
83882-53431 |
— | ||
|
83291
|
83291
83291-53150
Computer, Combination Meter
[05.2000 - 07.2001] JCE10 |
83291-53150 |
— | ||
|
83291
|
83291
83291-53160
Computer, Combination Meter
[05.2000 - 07.2001] JCE10 CANADA SPEC |
83291-53160 |
— | ||
|
83291
|
83291
83291-53360
Computer, Combination Meter
[07.2001 - 08.2003] JCE10..ATM |
83291-53360 |
— | ||
|
83291
|
83291
83291-53361
Computer, Combination Meter
[08.2003 -] JCE10..ATM |
83291-53361 |
— | ||
|
83291
|
83291
83291-53370
Computer, Combination Meter
[07.2001 - 08.2003] JCE10..ATM CANADA SPEC |
83291-53370 |
— | ||
|
83291
|
83291
83291-53371
Computer, Combination Meter
[08.2003 -] JCE10..ATM CANADA SPEC |
83291-53371 |
— | ||
|
83875
|
83875
83875-53060
Wire, Combination Meter, No.1
[05.2000 - 08.2003] JCE10..SED..ATM |
83875-53060 |
— | ||
|
83875
|
83875
83875-53340 Wire, Combination Meter, No.1COMBINATION METER, NO.1 [07.2001 - 08.2003] JCE10 |
83875-53340 |
US $7.86 |
||
|
9007600021
|
9007600021
90076-00021 New Genuine Part |
90076-00021 |
US $3.79 |
||
|
9007600022
|
9007600022
90076-00022 New Genuine Part |
90076-00022 |
US $3.79 |
||
|
9007600027
|
9007600027
90076-00027 New Genuine Part |
90076-00027 |
US $3.79 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
